Safety circuitadvanced lab

Safety Light Curtain

An optical protective device forming a grid of infrared beams; interrupting a beam switches its monitored safety outputs so the machine safety system can initiate the defined stop.

PLC address%I0.6–0.7
SignalOSSD A/B
BenchLive + faults
FIELD DEVICE / 24 VDC

01 / Recognize it

What this sensor looks like

Learn the housing, active face, mounting, and connector before you meet it on a machine.

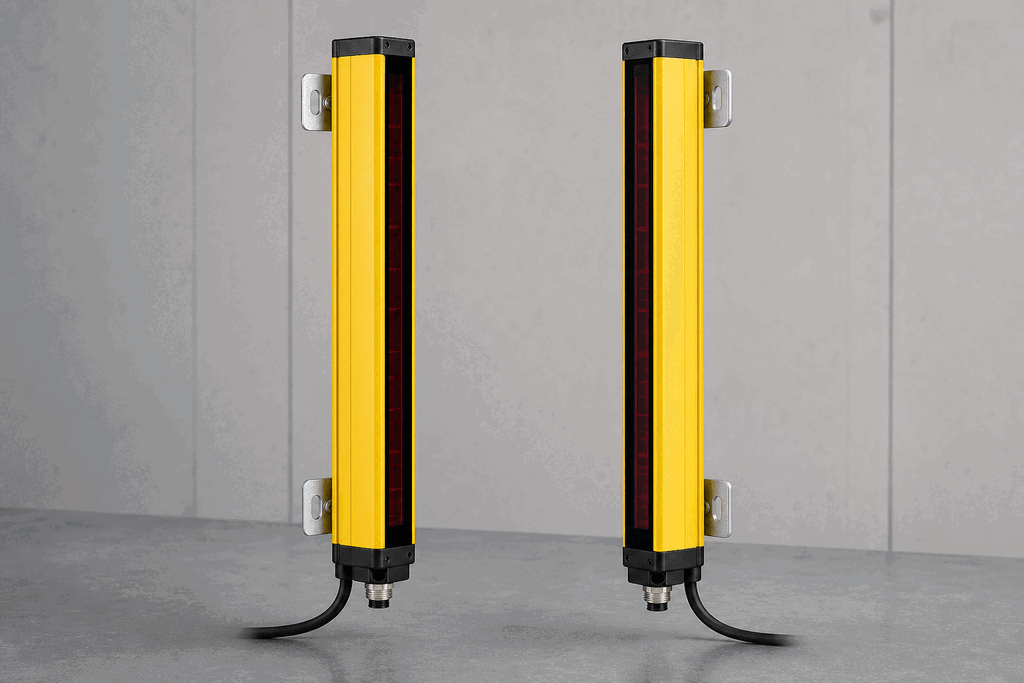

Representative real-world Safety Light Curtain hardware on an industrial workbench
Representative field appearance · form factors vary by manufacturer

Hardware recognition

Know what to look for

Use the silhouette, active face, and connection style to identify the device before checking its part number and datasheet.

Body and mounting
Two tall narrow extrusions mount opposite each other across an access opening.
Active face
A vertical window contains the infrared transmitter or receiver optics.
Cable and terminals
Separate bottom connectors carry power, OSSD outputs, sync, and reset wiring.
Field rule: identify by appearance, then verify the exact wiring, range, approvals, and output type from the device label and datasheet.

02 / Understand the principle

Watch cause become a PLC signal

Follow the physical event through the sensing element and into the exact controller value.

Signal story / live loop

Safety Light Curtain: cause to controller

Paused

Now showingPhysical event

A hand enters the field → Both OSSDs drop → %I0.6–0.7 = 0

03 / Test and commission it

Commission it on the bench

Move the process, adjust the setpoint, invert the logic and inject faults. Watch the PLC value respond immediately.

Commissioning bench

Safety Light Curtain

24 VDC%I0.6–0.7
STOP / OSSD OFF
35 %
20 %

PLC channel

%I0.6–0.7

RAW 1

Engineering value

35 %

OSSD A/B

Output logic
Inject a field fault

Channel healthy

Hazard detected: both safety outputs must drop

Terminals
OSSD AOSSD BTest / reset

Commissioning note: Measure stopping time and safety distance; a clear beam is not proof of a safe stop.

Field guide

A safety light curtain consists of two columns: an emitter containing a vertical array of infrared LEDs and a receiver containing a matching array of photodetectors. Beams scan across the protected area sequentially — typically thousands of times per second. If any beam is interrupted, both output signal switching devices (OSSDs) drop to 0 V within one scan cycle.

The OSSD (Output Signal Switching Device) pair provides two monitored semiconductor safety outputs to a compatible safety relay or safety PLC. The controller evaluates their switching and discrepancy behavior and moves the safety function to its defined state when a blockage or detected fault occurs. The performance level or SIL belongs to the complete input–logic–output safety function, not to “two wires” by themselves; it depends on the selected devices, architecture, reliability data, diagnostics, common-cause measures, and validation.

Resolution is the diameter of the smallest object the curtain will reliably detect. Finger-resolution curtains detect objects ≥ 14 mm in diameter (a finger). Hand-resolution curtains detect objects ≥ 30 mm. Body-resolution curtains (≥ 70 mm) guard larger openings where only whole-body intrusion matters.

Muting — temporarily suspending the curtain — allows material (pallets, parts) to pass through while keeping it active against personnel. Muting requires two independent muting sensors whose activation sequence and timing are verified by the safety controller.

Light curtains require competent design and commissioning. Their resolution, response time, mounting position, reach-over/reach-under protection, reset behavior, and machine stopping time must all be validated. Connect them through the specified safety-rated control path, not ordinary PLC I/O.

Use this when…

  • Guarding the point-of-operation on a press or stamping machine
  • Creating a safe zone around a robot arm or collaborative robot
  • Protecting an access opening on a packaging or assembly machine

Where you will see it

Sheet metal stamping

Light curtains on a power press signal the safety-related control system if a hand enters the protected field. Required separation distance is calculated from the curtain response, control response, and measured machine stopping time.

Palletiser

Finger-resolution curtains on pallet infeed openings allow pallets to pass uninterrupted while detecting any person attempting to enter the cell.

PLC wiring reference

Trace the complete electrical path instead of treating the PLC tag as magic. Confirm the device datasheet before wiring real hardware.

  1. 1OSSD A
  2. 2OSSD B
  3. 3Test / reset

Commissioning checkpoint

Measure stopping time and safety distance; a clear beam is not proof of a safe stop.

PLC address
%I0.6–0.7
Expected signal
OSSD A/B

Field questions

Frequently asked questions

What signal does a Safety Light Curtain send to a PLC?

OSSD A/B is read at %I0.6–0.7. The exact electrical connection is OSSD A, OSSD B, Test / reset.

How do you commission a Safety Light Curtain?

Measure stopping time and safety distance; a clear beam is not proof of a safe stop.

Next skill

Connect it to PLC logic

Unlock PLC integration challenges

See plans

Free first success

Use the safety light curtain signal in PLC logic

Apply the wiring and commissioning model in a scored browser exercise, then save your progress and continue through the recommended path.

No installNo credit cardImmediate pass/fail feedback

Technical reference and worked-example guide

Safety light-curtain learning guide: implementation, evidence and troubleshooting

Direct answer

Safety light-curtain learning guide becomes useful when it connects hazard, access direction, protective height, resolution, safety distance, response time, ossd channels, safety controller, final elements, reset, muting and validation with field interruption through dual safety outputs, safety logic, final switching devices, energy removal, machine stopping and independent standstill evidence, then proves clear field permits an authorized reset and interruption produces the specified stop response under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for automation and maintenance learners identifying emitter, receiver, protective field, OSSD outputs, reset, muting and machine-stop boundaries. The intended result is specific: the learner can trace an interruption to the safety-control response and distinguish indication, safety output, final switching and stopped motion evidence.

an instructor and maintenance learner tracing a guarded safety and actuator signal path in an isolated diagnostic cell while studying light-curtain protective field, safety outputs and machine response
The scene keeps light-curtain protective field, safety outputs and machine response connected to declared conditions, observable behavior, diagnostic boundaries and evidence that another person can reproduce.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

hazard, access direction, protective height, resolution, safety distance, response time, OSSD channels, safety controller, final elements, reset, muting and validation. For light-curtain protective field, safety outputs and machine response, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

field interruption through dual safety outputs, safety logic, final switching devices, energy removal, machine stopping and independent standstill evidence. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

clear field permits an authorized reset and interruption produces the specified stop response. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

channel discrepancy, blocked field at reset, reflective interference, muting sequence error, restart, final-element fault and stopping-time drift. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

an application, mounting, optical, channel, wiring, logic, final-element, reset or stop-performance fault. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

the safety function designed and validated by qualified personnel on the actual machine. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert hazard, access direction, protective height, resolution, safety distance, response time, ossd channels, safety controller, final elements, reset, muting and validation into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document field interruption through dual safety outputs, safety logic, final switching devices, energy removal, machine stopping and independent standstill evidence and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply clear field permits an authorized reset and interruption produces the specified stop response from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test channel discrepancy, blocked field at reset, reflective interference, muting sequence error, restart, final-element fault and stopping-time drift without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse an application, mounting, optical, channel, wiring, logic, final-element, reset or stop-performance fault and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete the safety function designed and validated by qualified personnel on the actual machine and repeat the affected regression cases.

    Evidence: Reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Safety light-curtain learning guide: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe technician, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The page connects definitions and worked examples to runnable tools, explicit assumptions and repeatable checks so a formula or pattern can be challenged.

Where simulation stops

This educational page cannot design, calculate, validate or authorize a safety function; current standards, device manuals and qualified risk assessment govern.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. hazard, access direction, protective height, resolution, safety distance, response time, OSSD channels, safety controller, final elements, reset, muting and validation. For light-curtain protective field, safety outputs and machine response, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert hazard, access direction, protective height, resolution, safety distance, response time, ossd channels, safety controller, final elements, reset, muting and validation into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the technician, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How does a safety light curtain stop a machine? A defensible short answer is: Its safety outputs change when the protective field is interrupted; a safety-rated control chain then commands final elements according to the validated safety function.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. field interruption through dual safety outputs, safety logic, final switching devices, energy removal, machine stopping and independent standstill evidence. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document field interruption through dual safety outputs, safety logic, final switching devices, energy removal, machine stopping and independent standstill evidence and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Can a standard PLC read a light curtain? A defensible short answer is: A standard PLC may receive diagnostic status, but the risk-reduction function requires an appropriate safety architecture and validation.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. clear field permits an authorized reset and interruption produces the specified stop response. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply clear field permits an authorized reset and interruption produces the specified stop response from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about light-curtain protective field, safety outputs and machine response? A defensible short answer is: Start with the operating contract and evidence path: hazard, access direction, protective height, resolution, safety distance, response time, ossd channels, safety controller, final elements, reset, muting and validation, followed by field interruption through dual safety outputs, safety logic, final switching devices, energy removal, machine stopping and independent standstill evidence. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. channel discrepancy, blocked field at reset, reflective interference, muting sequence error, restart, final-element fault and stopping-time drift. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test channel discrepancy, blocked field at reset, reflective interference, muting sequence error, restart, final-element fault and stopping-time drift without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise light-curtain protective field, safety outputs and machine response effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. an application, mounting, optical, channel, wiring, logic, final-element, reset or stop-performance fault. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse an application, mounting, optical, channel, wiring, logic, final-element, reset or stop-performance fault and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. the safety function designed and validated by qualified personnel on the actual machine. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete the safety function designed and validated by qualified personnel on the actual machine and repeat the affected regression cases. The acceptance record should show this result: reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because an application, mounting, optical, channel, wiring, logic, final-element, reset or stop-performance fault or channel discrepancy, blocked field at reset, reflective interference, muting sequence error, restart, final-element fault and stopping-time drift can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about Safety light-curtain learning guide

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

How does a safety light curtain stop a machine?

Its safety outputs change when the protective field is interrupted; a safety-rated control chain then commands final elements according to the validated safety function.

Can a standard PLC read a light curtain?

A standard PLC may receive diagnostic status, but the risk-reduction function requires an appropriate safety architecture and validation.

What should I learn first about light-curtain protective field, safety outputs and machine response?

Start with the operating contract and evidence path: hazard, access direction, protective height, resolution, safety distance, response time, ossd channels, safety controller, final elements, reset, muting and validation, followed by field interruption through dual safety outputs, safety logic, final switching devices, energy removal, machine stopping and independent standstill evidence. Add advanced features only after the baseline is predictable.

How do I practise light-curtain protective field, safety outputs and machine response effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because an application, mounting, optical, channel, wiring, logic, final-element, reset or stop-performance fault or channel discrepancy, blocked field at reset, reflective interference, muting sequence error, restart, final-element fault and stopping-time drift can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.
