Pick and Place PLC Program & Ladder Diagram (Run It Free Online)

This page walks through a complete pick and place PLC program — the step-by-step motion sequence that drives a 2-axis vacuum pick-and-place unit from home, down to pick a part, across to a drop zone, and back. Every rung described here maps to a live Pick and Place scenario you can run directly in your browser. Build the ladder diagram as a step sequencer, press Run, and a simulated X/Z gantry executes the cycle while an auto-grader checks each motion against its limit switches — no robot, no PLC hardware, and no software install required.

pick-and-placevacuumsequencingrobot
Pick and Place (Vacuum) scenario preview

Ready to build this?

Sign up free — no credit card required. This scenario requires the Basic plan.

Sign up to play this scenario →

Already have an account? Log in

Briefing

A 2-axis (X/Z) vacuum pick-and-place unit. Starting at the home position, the sequence waits for a part, descends to pick height, activates the vacuum gripper, ascends, traverses to the drop zone, descends to drop height, releases vacuum, ascends, and returns home. VACUUM_OK confirms grip before the upward travel begins.

Objectives

  • Z descends when PART_AT_PICK is detected and the system is at HOME
  • VACUUM activates at PICK_LS and VACUUM_OK must confirm before Z rises
  • X_ACTUATOR traverses after ascending to HOME_LS
  • Z descends to DROP_LS, VACUUM de-activates, Z ascends and X returns home
  • CYCLE_COMPLETE_LAMP pulses for one scan at end of cycle

Hints

  • Use a step variable: 0=HOME, 1=Z_DOWN_PICK, 2=VAC_ON_WAIT, 3=Z_UP_AFTER_PICK, 4=X_TRAVERSE, 5=Z_DOWN_DROP, 6=VAC_OFF_WAIT, 7=Z_UP_RETURN, 8=X_RETURN
  • Z_ACTUATOR low = extend (down), high = retract (up). Use limit switches to confirm travel.
  • TON of 200ms for vacuum settle before sensing VACUUM_OK
  • CYCLE_COMPLETE_LAMP := (step = 8 AND HOME_LS)

I/O Table

Inputs

PART_AT_PICK

Part present at pick station photoeye

BOOL · %I0.0

DROP_CLEAR

Drop zone clear sensor

BOOL · %I0.1

VACUUM_OK

Vacuum level OK (part gripped)

BOOL · %I0.2

HOME_LS

X and Z at home position

BOOL · %I0.3

PICK_LS

Z at pick (down) position

BOOL · %I0.4

DROP_LS

Z at drop (down) position

BOOL · %I0.5

START_PB

Start push-button

BOOL · %I0.6

STOP_PB

Stop push-button

BOOL · %I0.7

Outputs

X_ACTUATOR

X-axis extend (traverse to drop)

BOOL · %Q0.0

Z_ACTUATOR

Z-axis extend (descend)

BOOL · %Q0.1

VACUUM

Vacuum gripper on

BOOL · %Q0.2

CYCLE_COMPLETE_LAMP

Cycle complete indicator

BOOL · %Q0.3

Your program will be tested against:

All test cases run automatically when you submit. Assertions are hidden until you pass.

  1. #1Z descends on PART_AT_PICK when running at HOME

    Pressing START then presenting a part triggers Z descent

  2. #2VACUUM activates at PICK_LS

    When Z reaches PICK_LS the vacuum turns on

  3. #3Physics drives a complete pick-and-place cycle

    Physics simulates all limit switches; CYCLE_COMPLETE_LAMP asserts at end

How a pick and place PLC program works

A pick-and-place machine performs the same fixed motion cycle over and over: wait for a part, descend, grip, lift, traverse, descend, release, lift, return. Because the order never changes and each move must finish before the next begins, the natural way to write a pick and place robot PLC programming solution is a step sequencer — a chain of states that advances one move at a time, each transition confirmed by a limit switch rather than a guessed delay.

The Pick and Place scenario controls a 2-axis (X/Z) vacuum unit with eight inputs and four outputs, all pre-wired for you. The inputs are PART_AT_PICK (%I0.0, part-present photoeye at the pick station), DROP_CLEAR (%I0.1, drop-zone clear sensor), VACUUM_OK (%I0.2, vacuum-level-OK / part-gripped confirmation), HOME_LS (%I0.3, X and Z at home), PICK_LS (%I0.4, Z at the down/pick position), DROP_LS (%I0.5, Z at the down/drop position), START_PB (%I0.6) and STOP_PB (%I0.7).

The outputs are X_ACTUATOR (%Q0.0, X-axis extend / traverse to drop), Z_ACTUATOR (%Q0.1, Z-axis extend / descend), VACUUM (%Q0.2, vacuum gripper on) and CYCLE_COMPLETE_LAMP (%Q0.3, cycle-complete indicator). Note the Z convention: extending Z_ACTUATOR drives the head down, and retracting it lets the head rise — so 'Z down' means the output is energised and the head travels until PICK_LS or DROP_LS confirms it has arrived. This pneumatic pick and place PLC behaviour, where solenoid-driven actuators extend and retract between hard limit switches, is exactly how a real two-axis cell is wired.

The pick and place sequence — eight steps confirmed by limit switches

The motion cycle is an 8-step sequencer. A RUN_BIT latches on START_PB while HOME_LS is true and unlatches on STOP_PB. While RUN_BIT is set and the head is home with a part waiting (PART_AT_PICK) and the drop zone clear (DROP_CLEAR), the sequence kicks off. The steps are: S1 Z-down-to-pick, S2 vacuum-on-and-settle, S3 Z-up-after-pick, S4 X-traverse, S5 Z-down-to-drop, S6 vacuum-off-and-settle, S7 Z-up-return, S8 X-return-home.

Each step is a SET/RESET latch and each transition is gated by the limit switch that proves the move finished. S1→S2 waits for PICK_LS (Z has reached pick height). S3→S4 waits for HOME_LS (Z back up). S4→S5 waits for DROP_LS. S5→S6 waits for DROP_LS at drop height. S7→S8 waits for both PICK_LS and DROP_LS to be clear (the head has lifted past both). S8 completes when HOME_LS returns. This is the heart of a robust pick and place sequence PLC design: never advance on a timer when a sensor can confirm the real position. Energising a timed delay instead would race the mechanics and drop parts on a slow or loaded axis.

The output coils are driven by ORing the steps in which each actuator should be active. Z_ACTUATOR is energised during S1, S2, S5 and S6 (the head is at or moving to a down position). X_ACTUATOR is energised during S4, S5, S6 and S7 (extended toward the drop side). VACUUM is held on across S2, S3, S4 and S5 — from the moment of grip, through the lift and traverse, until the head is down at the drop. Reading the actuator state straight off the step bits keeps the pick and place PLC ladder diagram easy to trace.

Vacuum grip confirmation and the settle timers

Gripping is the step where a naive sequencer fails. When the head reaches PICK_LS the program enters the vacuum-on step and energises VACUUM, but it must not lift until the part is actually held. Two conditions gate the S2→S3 transition: VACUUM_OK, the vacuum-level feedback confirming a part is gripped, AND a 200 ms settle timer. The settle timer is a TON (T_VAC_ON) with a 200 ms preset driven by the vacuum-on step; its .Q output ensures the vacuum has had time to pull down before the feedback is trusted. Only when both VACUUM_OK is true and the timer has elapsed does the head ascend. This is the objective that VACUUM_OK must confirm grip before the upward travel begins — the difference between picking a part and dropping it.

Releasing mirrors this. At the drop position the program enters the vacuum-off step and de-energises VACUUM. A second 200 ms TON (T_VAC_OFF) driven by that step, combined with VACUUM_OK going false, gates the S6→S7 transition — so the head waits for the vacuum to actually bleed off and confirm the part has been released before it lifts away. Releasing too early would lift a still-gripped part back out of the drop zone.

These two short timers are the only time-based elements in the whole program; every other transition is position-confirmed by a limit switch. That mix — sensors for motion, brief timers only for the physical settle of vacuum pressure — is the pattern that makes pneumatic pick and place PLC sequences reliable in the real world.

Running and auto-grading the pick and place cell in your browser

The Pick and Place scenario runs entirely in the browser — no robot, no PLC, no vendor software. You build the ladder diagram, press Run, and a physics model drives the simulated X/Z gantry, firing HOME_LS, PICK_LS and DROP_LS as the actuators reach each position and toggling VACUUM_OK as the gripper picks and releases.

Three auto-grader test cases check the program against the real specification. 'start-from-home' presses START, presents a part with the drop zone clear, and asserts Z_ACTUATOR energises so the head descends. 'vacuum-on-at-pick-ls' drives the head down, trips PICK_LS, and asserts VACUUM turns on at the pick position. 'full-cycle' lets the physics model drive every limit switch through a complete cycle and asserts CYCLE_COMPLETE_LAMP comes on at the end — the proof that all eight steps sequenced correctly, the grip and release confirmed, and the head returned home.

Because the grader watches the real outputs as the simulated mechanics move, it catches the classic pick-and-place mistakes: advancing a step before its limit switch confirms, lifting before VACUUM_OK proves a grip, or holding the vacuum on through the release. That tight feedback loop makes this a practical way to learn pick and place robot PLC programming — and the underlying step-sequencer pattern transfers directly to indexing tables, gantries, and any cyclic machine — without a cell on the bench.

Frequently asked questions

How do you write a pick and place PLC program?

Use a step sequencer. Define one latched step per move in the cycle — Z-down-to-pick, vacuum-on, Z-up, X-traverse, Z-down-to-drop, vacuum-off, Z-up, X-return — and advance from each step to the next only when the limit switch that proves the move finished is true. Drive each output by ORing the steps in which it should be active: Z_ACTUATOR during the down steps, X_ACTUATOR during the traverse steps, VACUUM held from grip through to release. Confirming every move with a sensor rather than a timer is what makes the pick and place sequence PLC logic reliable.

What I/O does the pick and place scenario use?

Eight inputs and four outputs, all pre-wired. Inputs: PART_AT_PICK (%I0.0), DROP_CLEAR (%I0.1), VACUUM_OK (%I0.2), HOME_LS (%I0.3), PICK_LS (%I0.4), DROP_LS (%I0.5), START_PB (%I0.6) and STOP_PB (%I0.7). Outputs: X_ACTUATOR (%Q0.0, traverse to drop), Z_ACTUATOR (%Q0.1, descend), VACUUM (%Q0.2, gripper on) and CYCLE_COMPLETE_LAMP (%Q0.3). Energising Z_ACTUATOR drives the head down; releasing it lets the head rise.

How does the vacuum gripper confirm it has picked the part?

When the head reaches PICK_LS the program turns VACUUM on and enters the vacuum-on step, but it does not lift immediately. The transition to the lift step is gated by VACUUM_OK — the vacuum-level feedback that confirms a part is gripped — AND a 200 ms settle timer (a TON) that gives the vacuum time to pull down. Only when both the feedback is true and the timer has elapsed does the head ascend, which prevents lifting before the part is actually held in this pick and place sequence PLC design.

Why use limit switches instead of timers in a pick and place sequence?

In a pick and place PLC ladder diagram, each step advances only when the limit switch proving the move finished is true — PICK_LS for the pick descent, HOME_LS for the lift, DROP_LS for the traverse and drop. Sensor confirmation means the sequence works regardless of how fast or slow an axis actually moves, whereas a fixed timer would race the mechanics and could advance before the head arrives — dropping or crushing parts on a loaded or slow axis. Brief timers are used only for the physical settle of vacuum pressure on grip and release.

Can I simulate a pneumatic pick and place PLC program without hardware?

Yes. The Pick and Place scenario runs entirely in your browser. You build the ladder diagram, press Run, and a physics model drives a simulated X/Z gantry — firing HOME_LS, PICK_LS and DROP_LS as the actuators reach each position and toggling VACUUM_OK as the gripper picks and releases. Three auto-grader test cases then check the descent, the vacuum activation at PICK_LS, and a full cycle ending with CYCLE_COMPLETE_LAMP, so you can learn pneumatic pick and place PLC programming without a robot, a PLC, or any installed software.

Ready to build this?

Sign up free — no credit card required. This scenario requires the Basic plan.

Sign up to play this scenario →

Already have an account? Log in

Runnable simulator field guide

Pick-and-place PLC scenario: implementation, evidence and troubleshooting

Direct answer

Pick-and-place PLC scenario becomes useful when it connects source and destination occupancy, home and place positions, vertical and horizontal axes, gripper state, motion permission, timeout and recovery policy with cycle request through state owner, axis commands, limit feedback, grip command, part-held evidence, release and destination confirmation, then proves one available part moves from source to destination through mutually exclusive steps and returns the mechanism home under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for automation learners sequencing a guarded two-position handling mechanism with part, axis and gripper feedback. The intended result is specific: the learner can transfer one part without conflicting motion, prove grip before travel, detect a lost part and recover from a known physical state.

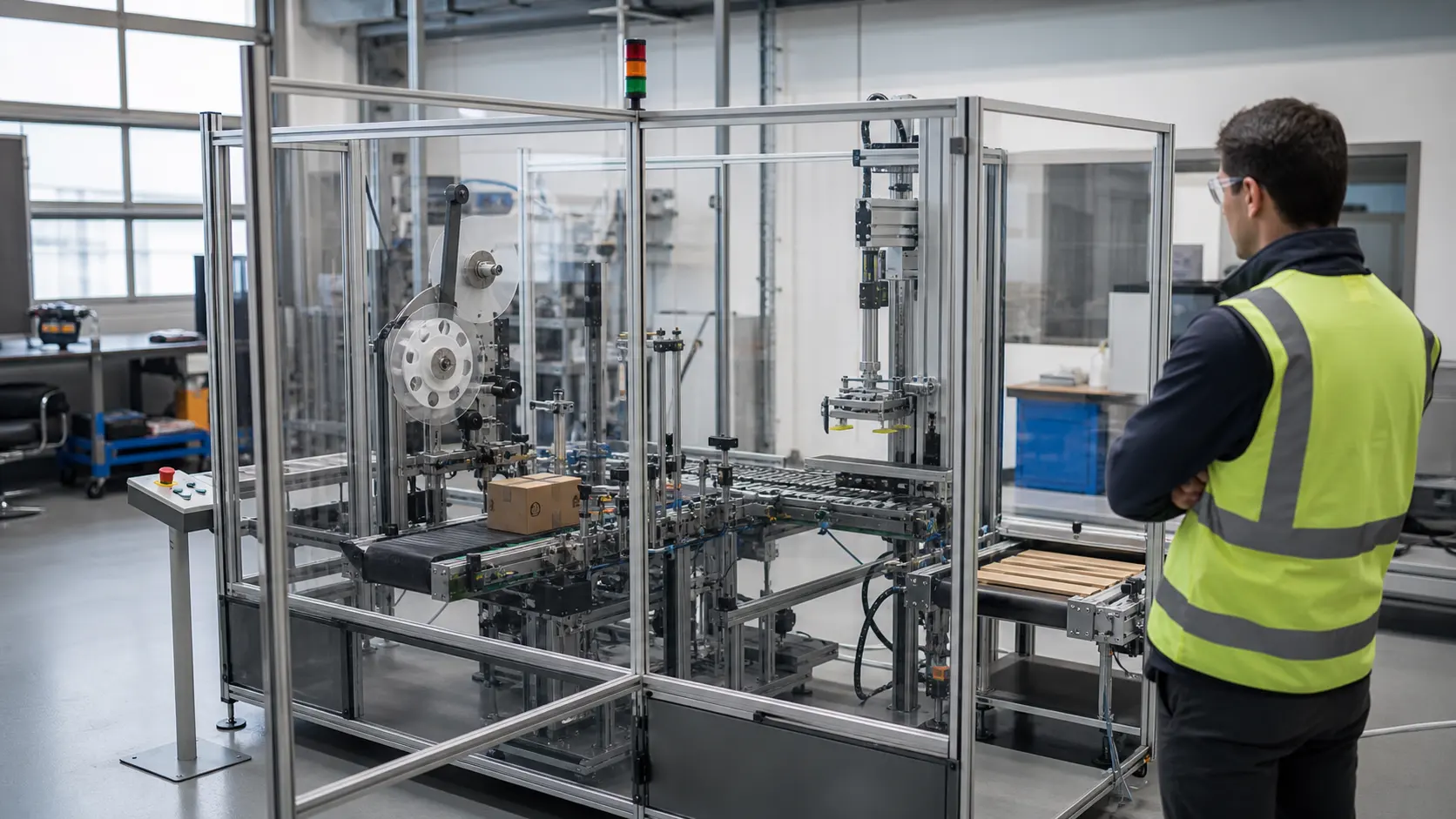

a guarded compact manufacturing cell with conveyor, sensors, pneumatic handling and a labeling station used for repeatable sequence training while studying pick-and-place states, gripping proof, axis interlocks and recoverable transfer
The training scene connects pick-and-place states, gripping proof, axis interlocks and recoverable transfer to a declared initial state, inspectable boundaries, safe limits and repeatable acceptance evidence.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

source and destination occupancy, home and place positions, vertical and horizontal axes, gripper state, motion permission, timeout and recovery policy. For pick-and-place states, gripping proof, axis interlocks and recoverable transfer, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

cycle request through state owner, axis commands, limit feedback, grip command, part-held evidence, release and destination confirmation. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

one available part moves from source to destination through mutually exclusive steps and returns the mechanism home. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

no part, double part, failed grip, part lost in travel, contradictory limits, slow axis, destination occupied, stop, restart and manual recovery. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a part-state, sequence, position, command, valve, gripper, timeout, feedback or recovery mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

the sequence commissioned with exact mechanics, payload, guarding and validated safe-motion functions. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert source and destination occupancy, home and place positions, vertical and horizontal axes, gripper state, motion permission, timeout and recovery policy into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document cycle request through state owner, axis commands, limit feedback, grip command, part-held evidence, release and destination confirmation and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply one available part moves from source to destination through mutually exclusive steps and returns the mechanism home from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test no part, double part, failed grip, part lost in travel, contradictory limits, slow axis, destination occupied, stop, restart and manual recovery without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a part-state, sequence, position, command, valve, gripper, timeout, feedback or recovery mismatch and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete the sequence commissioned with exact mechanics, payload, guarding and validated safe-motion functions and repeat the affected regression cases.

    Evidence: A run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Pick-and-place PLC scenario: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe operator, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The browser runtime joins editable control state to visible I/O and machine or process behavior, allowing the same initial conditions and stimuli to be replayed.

Where simulation stops

The simplified model does not validate robot paths, payload, collision, guarding, pneumatic force, motion safety or production cycle time.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. source and destination occupancy, home and place positions, vertical and horizontal axes, gripper state, motion permission, timeout and recovery policy. For pick-and-place states, gripping proof, axis interlocks and recoverable transfer, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert source and destination occupancy, home and place positions, vertical and horizontal axes, gripper state, motion permission, timeout and recovery policy into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the operator, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What is the safest way to program a pick-and-place sequence? A defensible short answer is: Use explicit states with declared entry evidence, mutually exclusive motion, timeouts and a recovery path based on actual mechanism and part position.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. cycle request through state owner, axis commands, limit feedback, grip command, part-held evidence, release and destination confirmation. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document cycle request through state owner, axis commands, limit feedback, grip command, part-held evidence, release and destination confirmation and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How should the PLC detect a dropped part? A defensible short answer is: Compare the maintained part-held evidence and expected destination result with the commanded gripper state, then stop further transfer and require bounded recovery.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. one available part moves from source to destination through mutually exclusive steps and returns the mechanism home. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply one available part moves from source to destination through mutually exclusive steps and returns the mechanism home from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about pick-and-place states, gripping proof, axis interlocks and recoverable transfer? A defensible short answer is: Start with the operating contract and evidence path: source and destination occupancy, home and place positions, vertical and horizontal axes, gripper state, motion permission, timeout and recovery policy, followed by cycle request through state owner, axis commands, limit feedback, grip command, part-held evidence, release and destination confirmation. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. no part, double part, failed grip, part lost in travel, contradictory limits, slow axis, destination occupied, stop, restart and manual recovery. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test no part, double part, failed grip, part lost in travel, contradictory limits, slow axis, destination occupied, stop, restart and manual recovery without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise pick-and-place states, gripping proof, axis interlocks and recoverable transfer effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a part-state, sequence, position, command, valve, gripper, timeout, feedback or recovery mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a part-state, sequence, position, command, valve, gripper, timeout, feedback or recovery mismatch and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. the sequence commissioned with exact mechanics, payload, guarding and validated safe-motion functions. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete the sequence commissioned with exact mechanics, payload, guarding and validated safe-motion functions and repeat the affected regression cases. The acceptance record should show this result: a run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a part-state, sequence, position, command, valve, gripper, timeout, feedback or recovery mismatch or no part, double part, failed grip, part lost in travel, contradictory limits, slow axis, destination occupied, stop, restart and manual recovery can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about Pick-and-place PLC scenario

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What is the safest way to program a pick-and-place sequence?

Use explicit states with declared entry evidence, mutually exclusive motion, timeouts and a recovery path based on actual mechanism and part position.

How should the PLC detect a dropped part?

Compare the maintained part-held evidence and expected destination result with the commanded gripper state, then stop further transfer and require bounded recovery.

What should I learn first about pick-and-place states, gripping proof, axis interlocks and recoverable transfer?

Start with the operating contract and evidence path: source and destination occupancy, home and place positions, vertical and horizontal axes, gripper state, motion permission, timeout and recovery policy, followed by cycle request through state owner, axis commands, limit feedback, grip command, part-held evidence, release and destination confirmation. Add advanced features only after the baseline is predictable.

How do I practise pick-and-place states, gripping proof, axis interlocks and recoverable transfer effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a part-state, sequence, position, command, valve, gripper, timeout, feedback or recovery mismatch or no part, double part, failed grip, part lost in travel, contradictory limits, slow axis, destination occupied, stop, restart and manual recovery can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.
