PLC Programming Online Simulator — Free in Your Browser

Write ladder logic or Structured Text, press Run, and watch a simulated machine respond. Auto-graded IEC 61131-3, Allen-Bradley, and Siemens practice — no download, hardware, or licence key.

How the browser-based PLC programming simulator runs ladder logic with no installA web browser window running a PLC ladder logic simulator with an input/output strip, requiring no installation or download.plcsimulator.app/playno installINPUTSOUTPUTS
Your code, a simulated scan loop, and a live IO table — all in a browser tab, no download or license key.
Real plc programming simulator footage

See this exact skill in the working simulator.

Watch the real browser product respond to the task on this page, then try the same practical workflow yourself. No slides, concept mockups, install, or credit card.

Try this in the browser
PLC Programming Simulator — Ladder Logic to Live Machine
What it is

A PLC programming simulator built for the browser.

A PLC programming simulator lets you write controller code and test it against a virtual plant — sensors, motors, valves, conveyors — without owning hardware. Traditionally these tools have been Windows-only, license-gated, and married to one vendor. Siemens\u2019 PLCSIM ships with TIA Portal. Rockwell\u2019s Studio 5000 Logix Emulate targets Studio 5000. LogixPro is a commercial teaching product. CoDeSys ships a simulator with its IDE. Each one requires install, each one locks you to a single instruction set, and most require a paid license to do anything meaningful.

Our PLC programming software removes all of that friction. It runs entirely in the browser, executes IEC, Allen-Bradley and Siemens-style logic in one editor, and teaches 9 dialects through guided tracks. It grades programs against scripted tests. Try the first real program without an account at /try.

The intended audience is anyone who needs ladder-logic practice without hardware: PLC students working through a first course, mechatronics and controls-engineering students prepping for interviews, plant engineers verifying logic changes offline before commissioning, and self-taught hobbyists. Every scenario is designed to be completable in 15–45 minutes so you get many reps per sitting.

What PLC programming practice looks like

Follow the program from rung to real machine behavior

A useful simulator must show more than a code editor. These six views connect the instructions a learner writes to the scan cycle, field I/O, motor control, process response and the evidence used to grade a solution.

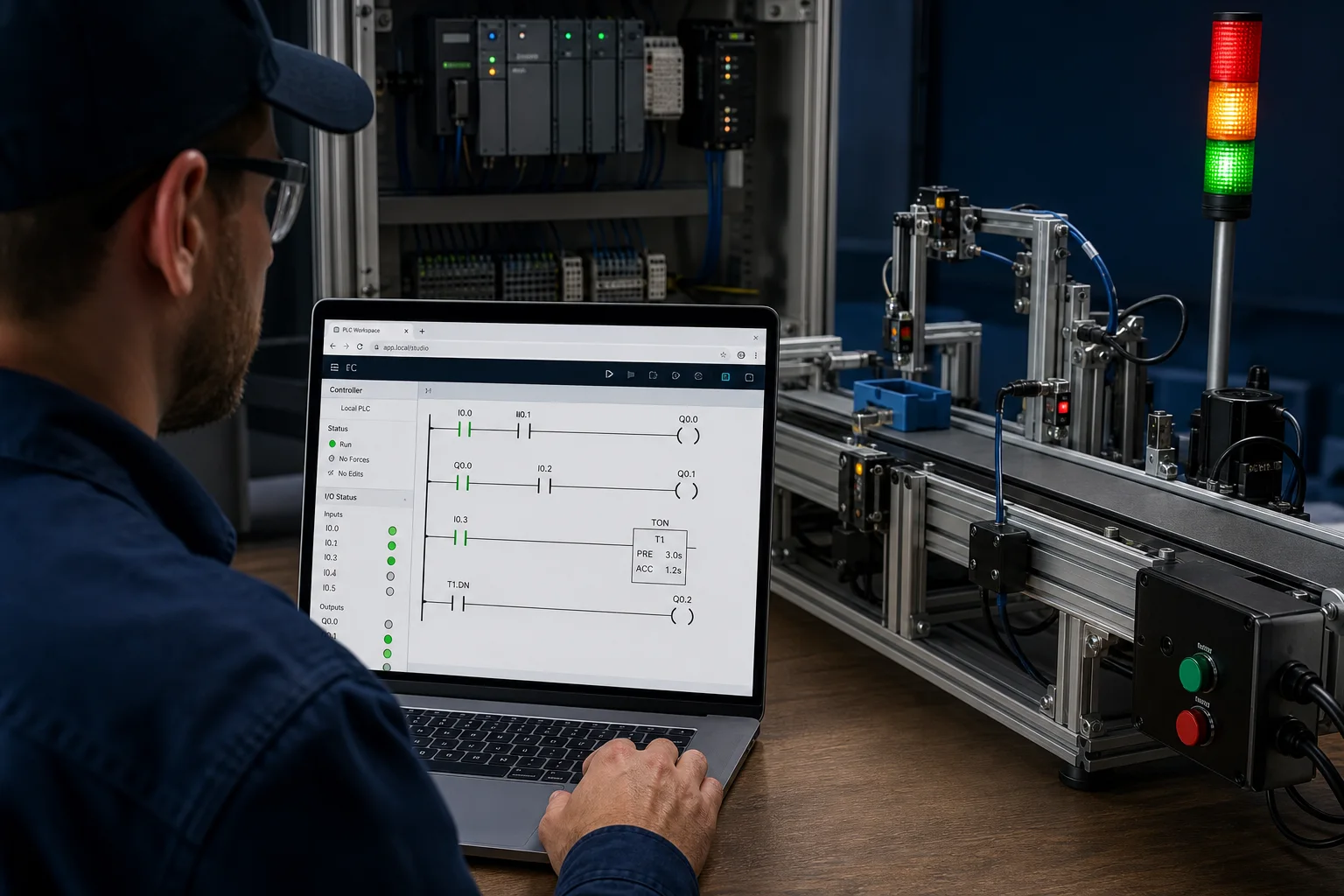

Controls technician running ladder logic in a browser-based PLC programming simulator beside a conveyor training cell
01Write the control logic, watch live I/O and compare the program state with the physical machine response in one workspace.

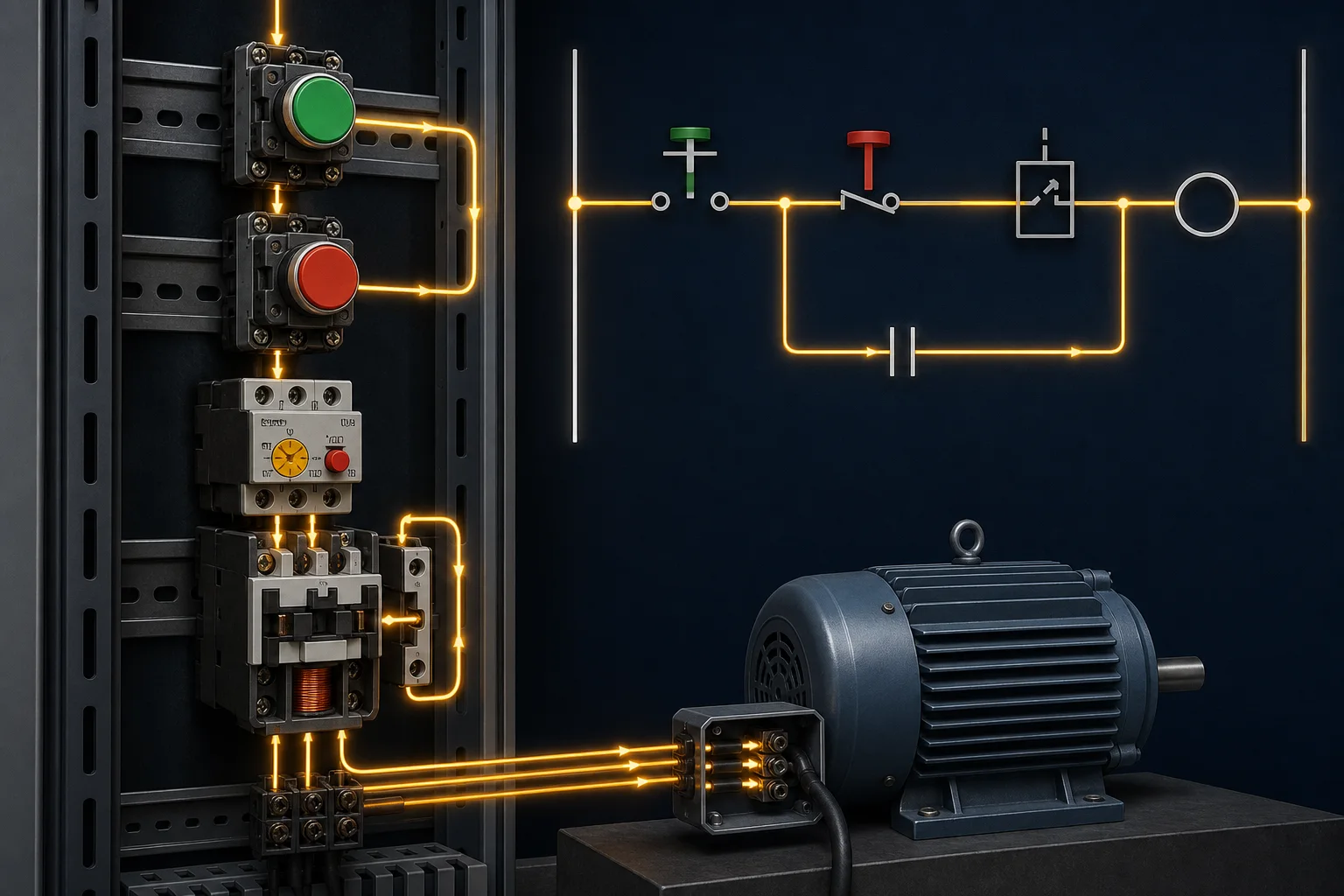

Three-wire motor start-stop circuit with overload, contactor, seal-in contact and ladder logic rung
02A seal-in branch keeps the contactor commanded after the momentary Start button is released; Stop or overload breaks the path.

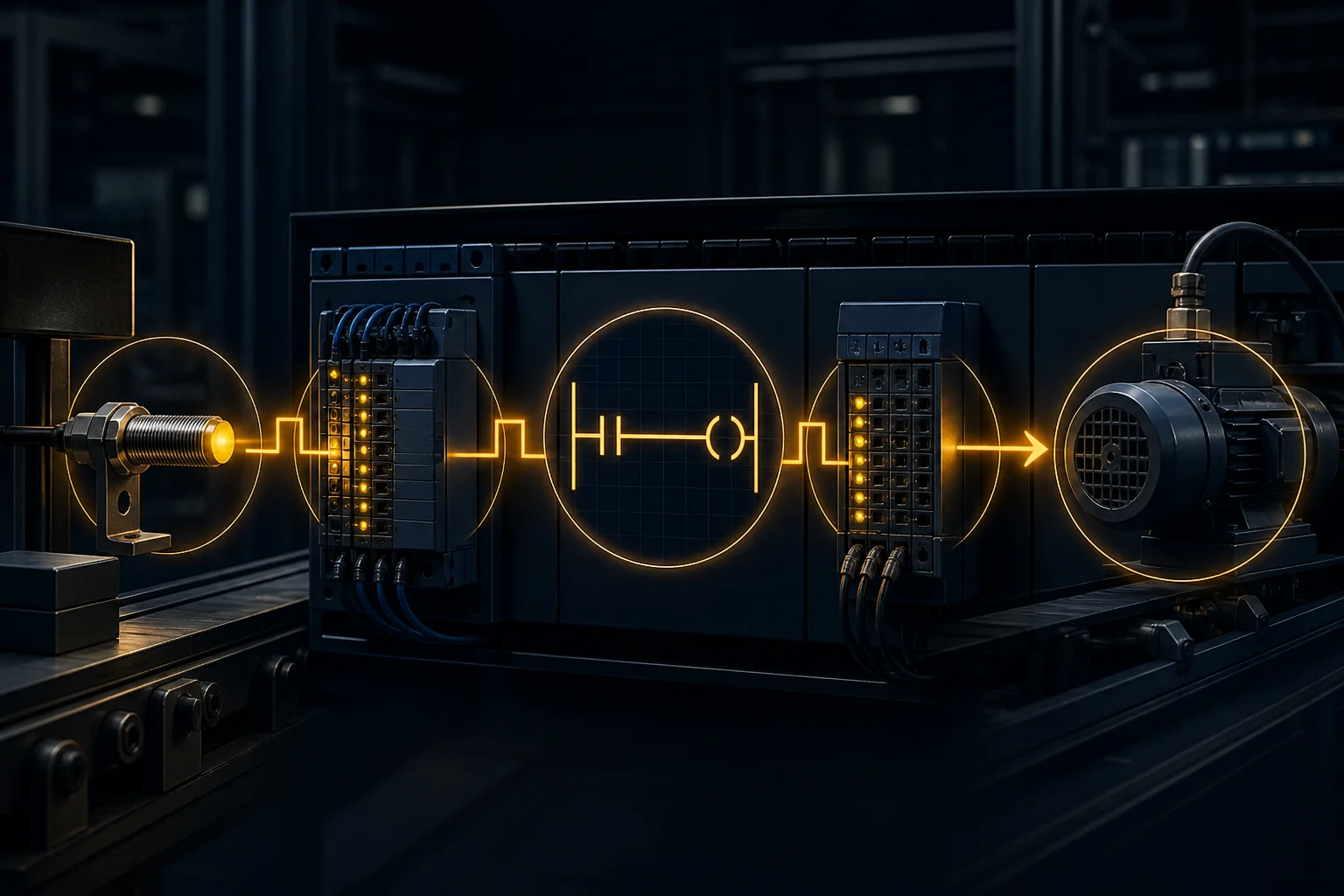

PLC scan signal path from proximity sensor through input module and ladder rung to output module and motor
03The simulator repeats the same control loop as a PLC: sample inputs, solve the program and update outputs.

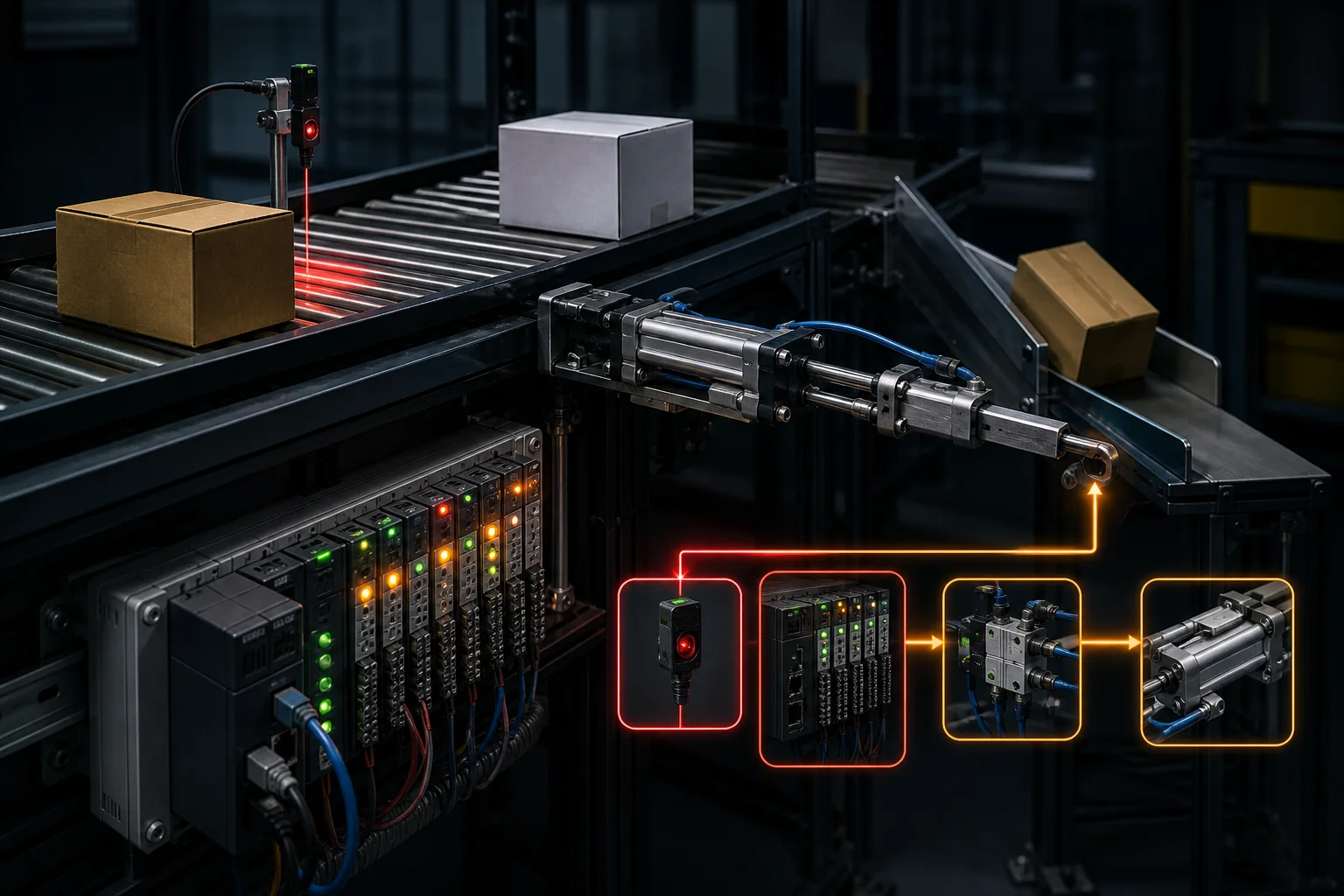

PLC-controlled conveyor sorter with photoelectric sensor, input module, pneumatic diverter and live signal path
04Machine scenarios connect abstract addresses to observable sensors and actuators, so a passing rung must also produce the intended motion.

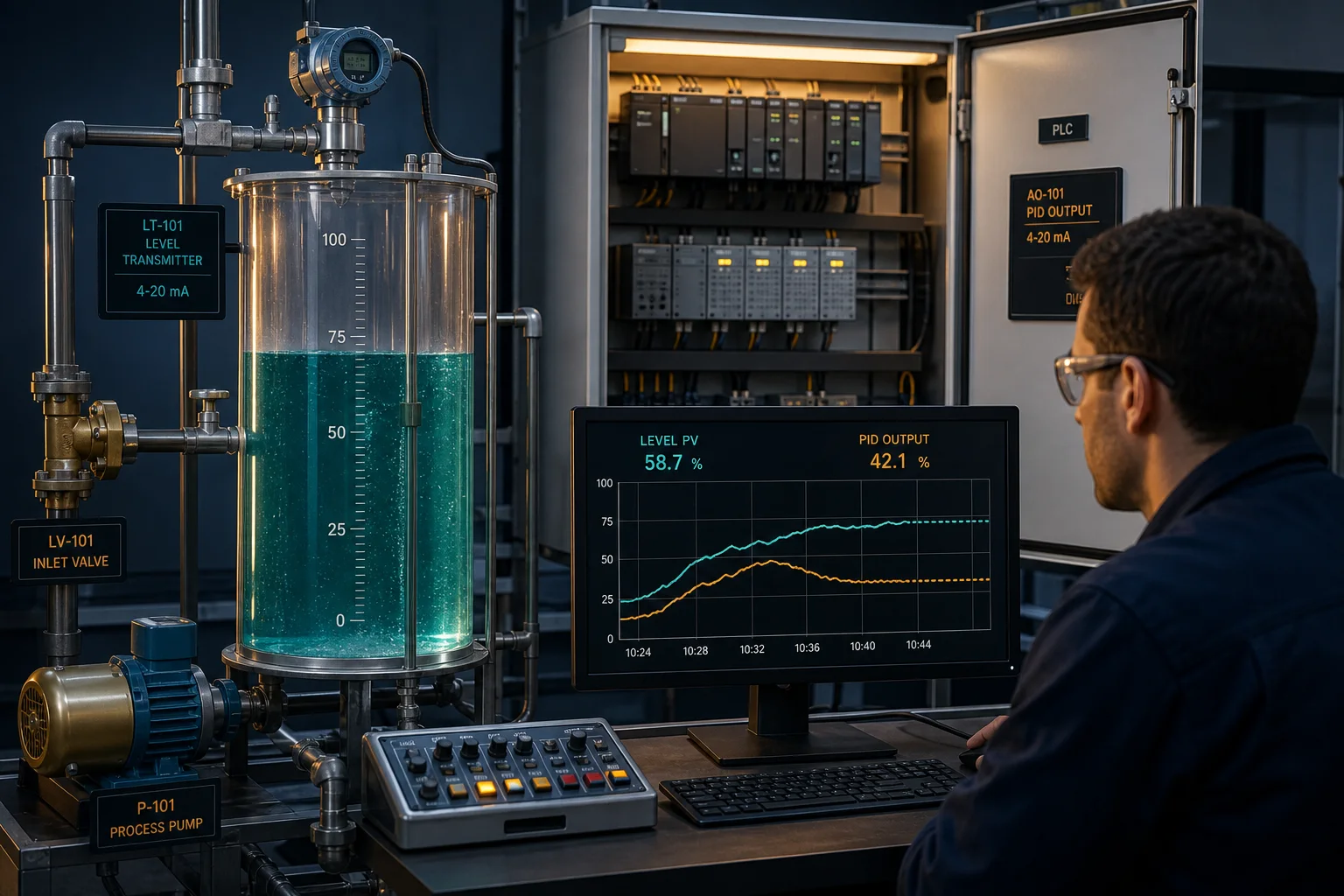

PLC tank level and PID programming lab with transmitter, control valve, pump and live process trend
05Advanced scenarios add analog scaling and process dynamics, letting learners compare the measured value, controller output and resulting level.

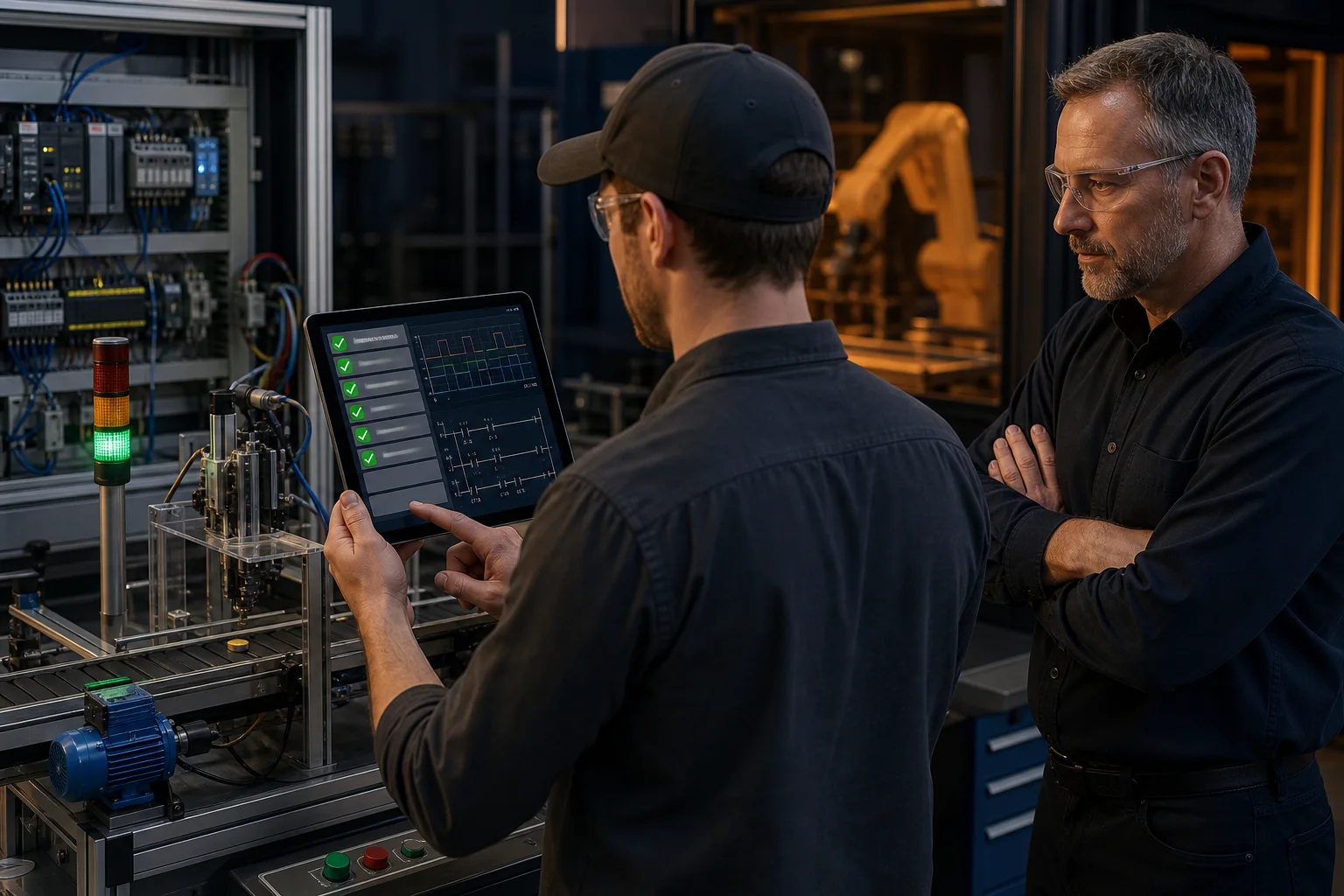

PLC programming skills assessment with automated test results, ladder logic and a working conveyor cell
06Auto-graded tests turn a successful machine cycle into repeatable evidence across normal, boundary and recovery cases.
How it works

From code to machine in three steps.

Every scenario follows the same loop: write logic, press Run, and watch the simulated IO table update as your program executes through each scan cycle.

1

Pick a scenario

140 published practice scenarios are indexed at /scenarios. Each ships with an IO list, a scripted test suite, and a written objective. Start with the free Traffic Light or Motor Start/Stop scenarios to see the flow.

2

Write ladder logic

The Monaco-based editor accepts IEC 61131-3, Allen-Bradley, or Siemens syntax. Switch dialect from the toolbar. Contacts, coils, timers, counters, edges, and PID function blocks are all wired up.

3

Run and grade

Press Run and your program drives a Phaser-rendered physics scene. Test cases evaluate every objective (correct sequencing, interlocks, timing windows) with pass/fail feedback and failure reasons.

The three-phase PLC scan cycle the programming simulator runs each cycleThe repeating PLC scan cycle: read inputs, execute the ladder logic, update outputs, then housekeeping, looping continuously.1Read Inputs2Execute Logic3Update Outputs4HousekeepingSCANCYCLE
Inputs → solve every rung top-to-bottom → outputs, on a repeating clock. The simulator runs this real scan loop so timers and counters behave like hardware.

Start in 30 seconds

There is nothing to download and no trial clock. Open /scenarios/traffic-light, drop a few contacts and coils onto a rung, press Run, and read the pass/fail result. No account is needed for the free scenarios, so you can write working ladder logic before you decide whether to sign up.

Languages & instructions

What you can write in the simulator.

The editor speaks the two IEC 61131-3 languages most people actually use to learn: ladder diagram (LD) and Structured Text (ST). You build rungs from the standard instruction set — contacts, coils, timers, counters, edges, compares, and math — and the simulator executes them against a live IO table.

Ladder logic, rung by rung

Ladder is the default. A rung reads left-to-right: examine-if-closed and examine-if-open contacts in series form an AND, parallel branches form an OR, and the coil on the right energises when the path is true. The simulator solves each rung in order, every scan, so the logic you draw is the logic that runs.

Ladder logic programming simulator →
A ladder logic rung — series contacts and a coil — running in the PLC programming simulatorA basic ladder logic rung between two power rails: an examine-if-closed contact (XIC) in series driving an output coil (OTE).L1L2] [StartXIC I:0/0LampOTE O:0/0
Series contacts AND together; the coil energises when the rung path is true.
Ladder logic contact and coil symbols you program in the PLC simulatorThe core ladder logic symbols side by side: XIC examine-if-closed, XIO examine-if-open, OTE output energize, OTL output latch and OTU output unlatch.XICIfXIOIfOTEEnergizeLOTLLatchUOTUUnlatch
Normally-open / normally-closed contacts, output, latch and unlatch coils — the core symbol set.

The instruction set

Beyond contacts and coils you get the full beginner-to-intermediate toolkit: on/off-delay and pulse timers, up/down counters, rising- and falling-edge detection, comparison and math blocks, and latch/unlatch for retentive state. Each instruction maps cleanly onto its Allen-Bradley and Siemens equivalent when you switch dialect.

Programming a seal-in motor-start rung in the PLC programming simulatorA seal-in latch rung: a Start contact in parallel with a Hold contact, in series with a normally-closed Stop contact, driving an output coil.StartHold (seal)StopMotor
Seal-in (latching) start/stop — the first real rung most learners build.
An on-delay (TON) timer running in the PLC programming simulatorA TON on-delay timer: the accumulated time bar ramps up toward the preset value, and the done (DN) bit turns on when the accumulator reaches preset.TONPRE 5000ACCACC ramps to PREPREDNdone bit
TON / TOF / TP timers behave to the IEC 61131-3 spec against the scan clock.
An up-counter (CTU) running in the PLC programming simulatorA CTU count-up counter: each input pulse increments the accumulator toward the preset, and the done (DN) bit turns on when count reaches preset.count pulsesCTUPRE 5ACC 3ACCcount toward presetDNdone bit
CTU / CTD / CTUD counters with live accumulator and preset you can watch.
Dialects

Three PLC dialects, one editor.

The compiler pipeline normalises each dialect into a common IR before execution, so your program runs against the same scan loop and the same test harness regardless of which syntax you wrote it in.

IEC 61131-3

The international standard. Structured Text + ladder with portable tag declarations (VAR ... END_VAR) and standard function blocks (TON, CTU, R_TRIG).

Ladder logic simulator →

Allen-Bradley

RSLogix-style XIC / XIO / OTE / OTL / OTU with AB tag notation (I:0/0, O:0/0, B3:0/0, T4:0, C5:0).

Allen-Bradley PLC simulator →

Siemens

TIA Portal / STEP 7-style STL networks with A / AN / O / ON / = / S / R and Siemens IO notation (%I0.0, %Q0.0).

Siemens PLC simulator →
The IEC 61131-3 programming languages supported by the PLC programming simulatorThe five IEC 61131-3 PLC programming languages as chips: Ladder Diagram, Function Block Diagram, Structured Text, Instruction List and Sequential Function Chart.IEC 61131-3 — five languagesLDLadder DiagramFBDFunction BlockSTStructured TextILInstruction ListSFCSequential Func. Chart
IEC 61131-3 defines the languages — the simulator focuses on the two you learn first: ladder diagram and Structured Text.
Writing Structured Text in the PLC programming simulator and exporting it to a real controllerA small Structured Text code block in an editor: an IF/THEN condition, a TON timer call and assignments, showing text-based PLC programming.main.st — Structured Text1IF Start AND NOT Stop THEN2 Run := TRUE;3END_IF;4DelayTmr(IN := Run, PT := T#5s);5Lamp := DelayTmr.Q;
Structured Text is portable today — write it here, then copy it into Codesys, OpenPLC, or any ST-compatible IDE.
Why browser-based

Why browser-based PLC programming matters.

Most PLC software was built for plant engineers on dedicated Windows workstations, not for students or self-learners. The result: install friction kills the first-hour experience. You download a 4 GB installer, reboot twice, hit a licensing wall, and never write a line of ladder logic.

A browser-based PLC simulator changes the shape of that first hour. You load a URL, see the editor, pick a scenario, and get a passing test within minutes. Portability follows naturally: the same simulator works on a Chromebook in a university lab, on a Linux desktop at home, on a locked-down corporate laptop where you cannot install admin-gated software, and on a phone in a pinch.

This matters for three groups. Students cannot afford per-seat licensing and often do not have admin rights on shared lab machines. Engineers prepping for interviews want something they can run from a coffee shop. Plant engineers testing a quick logic change before a commissioning window do not want to spin up a VM just to verify a rung. Removing the install is the single biggest usability lever, and it is the one lever that a browser-native tool can pull cleanly.

We make no secret about the trade-off: a browser simulator is a learning and prototyping tool, not a production PLC. The final word on any logic change lives on the real controller. Our pitch is that getting there is cheaper, faster, and less painful if the first hundred iterations happen in a tab you can close.

Under the hood

A real scan cycle, in your browser.

The simulator implements the three-phase PLC scan cycle faithfully: input image update, program execution (rung-by-rung, top-to-bottom), then output image update. A configurable scan-time clock drives the whole loop so timers and counters behave identically to hardware.

The IO table is explicit and inspectable. Every input address (%I0.0, I:0/0) and every output coil (%Q0.1, O:0/0) has a live value you can watch during a run. Internal memory bits, timer accumulators, and counter presets are all visible so you can debug a rung without guesswork.

Function blocks follow the 61131-3 spec: TON (on-delay timer), TOF (off-delay), TP (pulse), CTU/CTD/CTUD (counters), R_TRIG/F_TRIG (edge detection), EQ/NE/GT/GE/LT/LE (compare), and PID. These map directly to the AB and Siemens equivalents when you switch dialect.

How field inputs and outputs map to the IO table in the PLC programming simulatorA digital input pushbutton wired to a PLC input card, and a PLC output card driving a lamp, with a sinking versus sourcing hint.I/O CARDINPUTOUTPUTPushbuttonI:0/0LampO:0/0sinking (NPN) vs sourcing (PNP)
Field devices wire to discrete inputs and outputs; the simulator exposes every bit in a live IO table you can watch as the program runs.
Questions

Frequently asked.

Yes. Run the guided first program without an account, then create a free account for 27 practice scenarios and beginner labs. There is no card, install, or trial clock. Pro adds all 140 published scenarios and interview prep.

Start programming in your browser.

Ten guided beginner PLC labs, the first 6 core curriculum lessons, and starter wiring and fault practice are free. No credit card. Sign up in under a minute — or run your first real PLC program without an account.

Related: learn PLC programming · ladder logic simulator.

Runnable simulator field guide

PLC programming simulator: implementation, evidence and troubleshooting

Direct answer

PLC programming simulator becomes useful when it connects a control requirement expressed as inputs, state, outputs and feedback with program tags through scan execution to the machine model, then proves repeatable start, run and stop behavior under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for learners and programmers who need to run controller logic against observable I/O and machine behavior. The intended result is specific: the user can predict scan behavior, test a program and explain the first mismatch between logic state and modeled equipment.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

a control requirement expressed as inputs, state, outputs and feedback. For PLC programming simulation, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

program tags through scan execution to the machine model. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

repeatable start, run and stop behavior. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

timer limits, simultaneous commands and restart state. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

one stuck signal or missing feedback condition. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

behavioral tests recreated on the intended controller. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert a control requirement expressed as inputs, state, outputs and feedback into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document program tags through scan execution to the machine model and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply repeatable start, run and stop behavior from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test timer limits, simultaneous commands and restart state without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse one stuck signal or missing feedback condition and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete behavioral tests recreated on the intended controller and repeat the affected regression cases.

    Evidence: A run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for PLC programming simulator: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe operator, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The browser runtime joins editable control state to visible I/O and machine or process behavior, allowing the same initial conditions and stimuli to be replayed.

Where simulation stops

The learning runtime is an IEC-style subset, not a firmware-accurate replacement for a selected controller and engineering suite.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. a control requirement expressed as inputs, state, outputs and feedback. For PLC programming simulation, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert a control requirement expressed as inputs, state, outputs and feedback into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the operator, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about PLC programming simulation? A defensible short answer is: Start with the operating contract and evidence path: a control requirement expressed as inputs, state, outputs and feedback, followed by program tags through scan execution to the machine model. Add advanced features only after the baseline is predictable.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. program tags through scan execution to the machine model. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document program tags through scan execution to the machine model and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise PLC programming simulation effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. repeatable start, run and stop behavior. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply repeatable start, run and stop behavior from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. timer limits, simultaneous commands and restart state. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test timer limits, simultaneous commands and restart state without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because one stuck signal or missing feedback condition or timer limits, simultaneous commands and restart state can expose assumptions that never appear during ideal startup and steady operation.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. one stuck signal or missing feedback condition. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse one stuck signal or missing feedback condition and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Can browser practice replace official software or hardware? A defensible short answer is: No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. behavioral tests recreated on the intended controller. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete behavioral tests recreated on the intended controller and repeat the affected regression cases. The acceptance record should show this result: a run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How should progress be documented? A defensible short answer is: Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

Answer surface / 07

Questions people ask about PLC programming simulator

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What should I learn first about PLC programming simulation?

Start with the operating contract and evidence path: a control requirement expressed as inputs, state, outputs and feedback, followed by program tags through scan execution to the machine model. Add advanced features only after the baseline is predictable.

How do I practise PLC programming simulation effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because one stuck signal or missing feedback condition or timer limits, simultaneous commands and restart state can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

What should I do when the answer differs from a guide?

Check assumptions, version, units and initial state first. Reduce the case, compare one boundary at a time and prefer current primary documentation for target-specific behavior.

When is a PLC programming simulation exercise finished?

A run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition.
