URScript · Universal Robots

Learn URScript Online — Free Account, 4 Lessons Free, Run It in Your Browser

URScript is Universal Robots’ text programming language — the same one the controller runs under PolyScope. This hub teaches it accurately, command by command: movej vs movel, movep, waypoints and blends, gripper I/O, set_tcp and set_payload. Then you write real URScript on a simulated UR arm. No robot. No install. No vendor license.

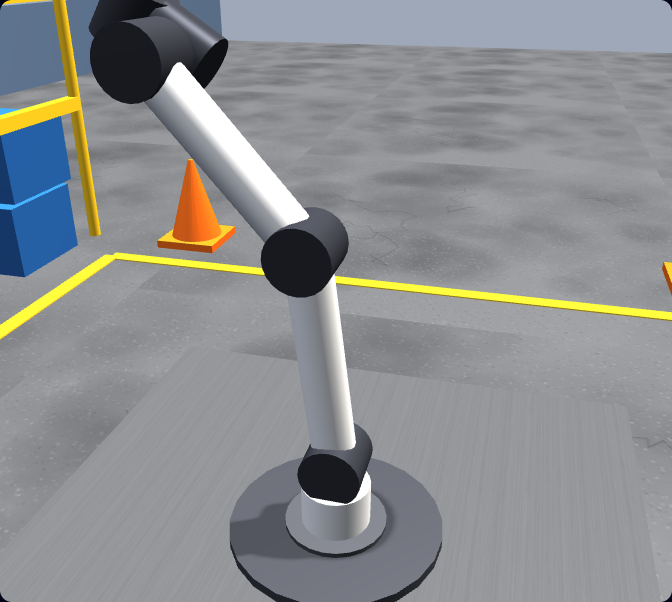

A close-up of a UR-style six-axis robot arm in the browser-based robot simulator, showing its jointed links and gripper, used to learn URScript by writing and running movej and movel commands.

Start here

What is URScript?

URScript is the text-based programming language built into every Universal Robots controller — the UR3e, UR5e, UR10e, UR16e and the rest of the range all run it. The syntax is close to Python: you have variables, if / while logic, functions, and threads, plus built-in commands for motion, I/O, and tool configuration.

The key thing to understand is that PolyScope generates URScript under the hood. When you build a graphical program tree on the teach pendant, the controller compiles it down to URScript commands. You can also write URScript directly — inside a Script node in a PolyScope program, sent over a socket from a PC, or as a complete .script file. Either way, learning URScript is what makes you fluent, because it is the language the robot actually executes.

URScript syllabus

A structured path through URScript

You can program a working UR cell with a small core of URScript. This is the order that works — each topic builds on the last, from your first move to a complete, safe program.

1 · Motion: movej, movel, movep

The three move commands are the heart of URScript. movej interpolates in joint space — fast, efficient, curved tool path — for free-air moves between stations. movel drives the tool in a straight Cartesian line at a controlled speed for approach, insertion, and edge-following. movep moves the tool at a constant speed with circular blends, for process paths like dispensing or gluing. Each takes acceleration (a) and velocity (v) arguments that shape the motion.

2 · Waypoints & blend radius

A waypoint is a taught target pose. By default the arm stops at each one. Add a blend radius and the arm rounds the corner — it never fully stops, so a chain of moves flows smoothly and the cycle time drops. A bigger blend is smoother and faster, but the path cuts the corner more, so the blend is a trade-off you tune per move.

3 · Digital I/O & gripper

set_digital_out(n, True/False) sets a digital output — the usual way to fire a 2-finger gripper or signal a conveyor. get_digital_in(n) reads an input, for example a part-present sensor. Picking something up is just: move to the part, set the gripper output to close, then lift. This is where a program stops being motion and starts doing work.

4 · TCP & payload

set_tcp(pose) tells the robot where the working point of the tool is relative to the flange, so movel lines stay straight at the tool tip rather than the wrist. set_payload(mass) tells the robot how heavy the tool-plus-part is so it controls motion accurately and its force monitoring stays correct. Getting both right is essential for accuracy and safe cobot operation.

5 · Program structure, variables & loops

URScript reads like Python: you declare variables, use if / while for logic, and wrap reusable steps in functions. A typical program defines its poses and parameters up front, then loops through the work — pick, move, place, repeat — using counters and conditions. This structure is what separates a one-off demo from a program that runs a shift. sleep(seconds) pauses execution, for example to let a gripper settle.

6 · Safety & protective stop

Universal Robots are collaborative robots that force- and power-limit their motion. If the controller detects an unexpected contact or exceeds a configured force threshold, it triggers a protective stop and the arm halts immediately. For a programmer this means two habits: keep set_payload accurate so force monitoring works, and design moves that respect the cell’s safety planes and speed limits. A simulator is the right place to learn this — you can deliberately trigger a protective stop and learn to avoid it without risk.

Diagram comparing URScript movej and movel: movej follows a curved joint-space path while movel drives the tool in a straight Cartesian line between the same two posesTwo tool paths between the same two points: a curved joint move (movej) in cyan and a straight linear move (movel) in amber.ABmovej — joint arcmovel — straight line
movej curves through joint space; movel keeps the tool on a straight line.
Diagram of URScript waypoints and blend radius: an arm stopping at each taught waypoint versus rounding the corners with a blend radius for a smoother, faster cycleA tool path through four waypoints P1 to P4 with a rounded blend radius smoothing the corner at P3 so the robot does not stop.blend rP1P2P3P4
A blend radius rounds the corner so a chain of moves flows without stopping.

Commands reference

URScript commands cheat sheet

You can program a working cell with a small core of URScript. Here are the commands you will actually use, what each does, and a minimal example — the vocabulary to keep next to you while you practise.

CommandWhat it doesExample
movej(q, a, v)Joint move — fast, curved tool path. Best for free-air moves between stations.movej(home_q, a=1.4, v=1.0)
movel(pose, a, v)Linear move — the TCP travels in a straight Cartesian line at controlled speed.movel(pick, a=0.5, v=0.1)
movep(pose, a, v, r)Constant tool-speed move with circular blends, for process paths like gluing.movep(p1, a=1.2, v=0.25, r=0.05)
set_tcp(pose)Set the tool center point relative to the flange so moves are straight at the tool tip.set_tcp(p[0,0,0.15,0,0,0])
set_payload(m)Tell the robot the mass of tool + part so motion and force monitoring stay accurate.set_payload(0.8)
set_digital_out(n, b)Set a digital output — the usual way to close/open a gripper or signal a conveyor.set_digital_out(0, True)
get_digital_in(n)Read a digital input, e.g. a part-present sensor, returning a boolean.if get_digital_in(2): ...
sleep(t)Pause execution for t seconds — e.g. to let a gripper settle.sleep(0.4)
textmsg(s1, s2)Write s1 followed by s2 to the program Log (shown under the editor in the simulator).textmsg("count=", count)
get_actual_tcp_pose()The tool pose in the base frame, p[x, y, z, rx, ry, rz], after the moves issued so far.here = get_actual_tcp_pose()
get_actual_joint_positions()The six joint angles in radians after the moves issued so far.q = get_actual_joint_positions()
get_forward_kin(q, tcp)Forward kinematics of the arm for joint vector q (default: current joints) as a base-frame pose.get_forward_kin([0, -1.57, 0, -1.57, 0, 0])
pose_trans(p_from, p_from_to)Compose two poses, e.g. an offset expressed in the tool or a fixture frame.above = pose_trans(here, p[0,0,-0.1,0,0,0])
pose_inv(p)The inverse of a pose, for converting between frames.pose_trans(pose_inv(fixture), pick)
interpolate_pose(p1, p2, alpha)Blend position linearly and orientation spherically between two poses; alpha 0 gives p1, 1 gives p2.interpolate_pose(a, b, 0.5)
var = valueDeclare a variable; URScript supports numbers, booleans, poses and lists.count = 0
while / ifProgram flow — loop the work and branch on conditions, Python-like.while count < 4: ...

Motion commands take acceleration a (rad/s² or m/s²) and velocity v (rad/s or m/s) arguments. A pose is written p[x, y, z, rx, ry, rz] — x/y/z in metres, rx/ry/rz as an axis-angle rotation; a joint target is six angles in radians.

Code → motion

How a line of URScript becomes motion

When you write movel(pick, a=0.5, v=0.1), the controller does not just teleport the arm. It runs a small pipeline — the same pipeline the simulator runs — and seeing it is what makes the language click.

Diagram of the URScript-to-motion pipeline: a movel command is parsed, inverse kinematics solves the joint angles for the target pose, a trajectory is planned, and the arm movesThree lines of URScript — movej, movel and set_digital_out — each mapped by an arrow to the corresponding motion on the robot arm.program.urpmovej(p1)movel(p2)set_digital_out(0,True)
Parse the command → solve inverse kinematics for the pose → plan the trajectory → move the arm.

  1. 1 · Parse

    The controller reads the command and its target pose and a/v arguments.

  2. 2 · Inverse kinematics

    It solves which joint angles put the TCP at that Cartesian pose.

  3. 3 · Plan trajectory

    It builds a time-stamped path — straight line for movel, joint-space curve for movej — honouring a and v.

  4. 4 · Move

    The joints follow the trajectory; the TCP arrives at the pose. The simulator shows exactly this.

URScript example

A first URScript pick-and-place

Here is a small, correct URScript program: it sets up the tool, moves to a safe home pose with movej, drops straight down onto the part with movel, closes a gripper via a digital output, then places and returns. These are the exact commands that run on a real UR controller.

# A first URScript pick-and-place on a UR5e
set_tcp(p[0, 0, 0.15, 0, 0, 0])      # tool point: 150 mm gripper
set_payload(0.8)                      # 0.8 kg tool + part

movej(home_q, a=1.4, v=1.0)           # joint move to a safe home pose
movel(pick_approach, a=1.2, v=0.3)    # straight line above the pick
movel(pick, a=0.5, v=0.1)             # straight down onto the part
set_digital_out(0, True)              # close the gripper
sleep(0.4)                            # let the gripper settle

movel(pick_approach, a=1.2, v=0.3)    # lift straight up
movel(place, a=1.2, v=0.25)           # straight line to place B
set_digital_out(0, False)             # open the gripper
movej(home_q, a=1.4, v=1.0)           # return home

In the simulator you write this, the arm solves the inverse kinematics for each pose, and you watch it run under physics — the safest way to test a program before it ever reaches hardware.

Diagram of the pick-and-place cycle the URScript program performs: approach, grasp, lift, traverse, place and release between point A and point BA repeating pick-and-place cycle around a loop: approach, close gripper, lift, traverse, place, open gripper.1Approach2Close3Lift4Traverse5Place6OpenLOOP
The cycle the program runs, A → B
Diagram of URScript gripper control via a digital output: set_digital_out closing and opening a two-finger gripper to grasp and release a partA two-finger robot gripper shown open (DO=0) and closed on a part (DO=1), controlled by a digital output signal.OPENDO = 0set DOCLOSEDpartDO = 1DO active
set_digital_out drives the gripper
Diagram of URScript set_payload: the mass of the tool plus part in the gripper that the robot must know to move accurately and keep force monitoring correctA robot arm holding a payload box at its tool centre point, with a mass and centre-of-gravity indicator and a small downward droop hint.3.0 kgCoGdroop
set_payload keeps motion accurate

URScript guides

Go deeper with the full articles

These deep-dive guides cover the theory behind each part of the syllabus. Read them alongside your practice.

  • What is URScript? — a complete introduction to UR’s programming language: syntax, where it runs, and how it relates to PolyScope.
  • URScript: movej vs movel — joint moves vs linear moves explained, with examples and the rule for choosing each one.
  • How to program a Universal Robot — a step-by-step walkthrough for beginners, from first jog to a working pick-and-place.

Why practice in a simulator

Learn the real language, with no robot and no risk

vs a real UR arm

A UR arm costs tens of thousands and one bad move can damage tooling. The simulator lets you fail safely and repeat a task endlessly — the only way to actually build skill — at zero cost and zero risk.

vs URSim

UR’s official URSim is the real controller software but ships as a Linux virtual machine that beginners find heavy to install. Ours opens in a browser tab on any computer, with lessons that teach URScript from zero.

Real URScript

You write the same movej, movel, set_digital_out, set_tcp and set_payload you would type into a real UR — so the language and habits transfer straight onto PolyScope and a physical controller.

Keep learning

More on robot programming

Questions

URScript FAQ

URScript is the text-based programming language built into every Universal Robots controller. It has a Python-like syntax and gives you direct control of the arm: motion commands (movej, movel, movep), digital and analog I/O (set_digital_out, get_digital_in), tool configuration (set_tcp, set_payload), timing (sleep), and program flow with variables, loops, functions, and threads. PolyScope — the graphical interface on the teach pendant — generates URScript under the hood, so the language is what the controller actually runs.

Start writing URScript today.

Write real URScript on a simulated UR arm in your browser. No robot, no install, no vendor license — a free account is required, and 5 of the 21 lessons are free.

Independent vendor-platform field guide

Learn URScript: transfer checklist

Direct answer

The learner can write and explain a bounded URScript-oriented task and list the official controller, software and safeguarded-cell tests that remain necessary.

Written for universal Robots learners studying program structure, variables, waypoints, joint and linear motion, I/O, timing and recovery.

System map / 02

NODE 01observable

Platform context

Robot and software context, TCP, feature, payload, waypoints, motion, I/O, cell state and acceptance criteria.

NODE 02observable

Tags and addressing

URScript statements through program state, frames and motion to gripper, PLC handshake and process feedback.

NODE 03observable

Reference pattern

A home, approach, pick, depart, place and return sequence with explicit state checks.

NODE 04observable

Timing and limits

Reach, singularity, blend, timing, interruption, protective stop, lost part and restart.

NODE 05observable

Diagnostics

A syntax, variable, frame, waypoint, I/O, timing or recovery mismatch.

NODE 06observable

Official-tool transfer

The program recreated, simulated and accepted in official tools and the safeguarded cell.

Answer surface / 07

What is URScript?

URScript is the scripting language used for program logic and motion on Universal Robots controllers. Exact support depends on controller software and should be verified in current official documentation.

Can I learn URScript without a robot?

You can learn syntax, state, frames, motion selection and handshakes in simulation. Production paths, payload, safety and recovery still require official tools and supervised target-cell validation.

Continue the signal path / 08

Industrial robotics path

Progress from motion concepts to a complete cell sequence

Practice coordinates and commands, connect the robot handshake to PLC state, then validate safety and vendor-specific behavior in the correct tools.
