Allen-Bradley PLC Simulator — Practise Studio 5000-Style Logic Online

Allen-Bradley-style logic in context

Move from instruction names to observable machine behavior.

These simulator-specific views connect tag-based logic to I/O, motor control, timing, counting and fault tracing. They are learning contexts—not depictions of a proprietary Rockwell IDE or controller runtime.

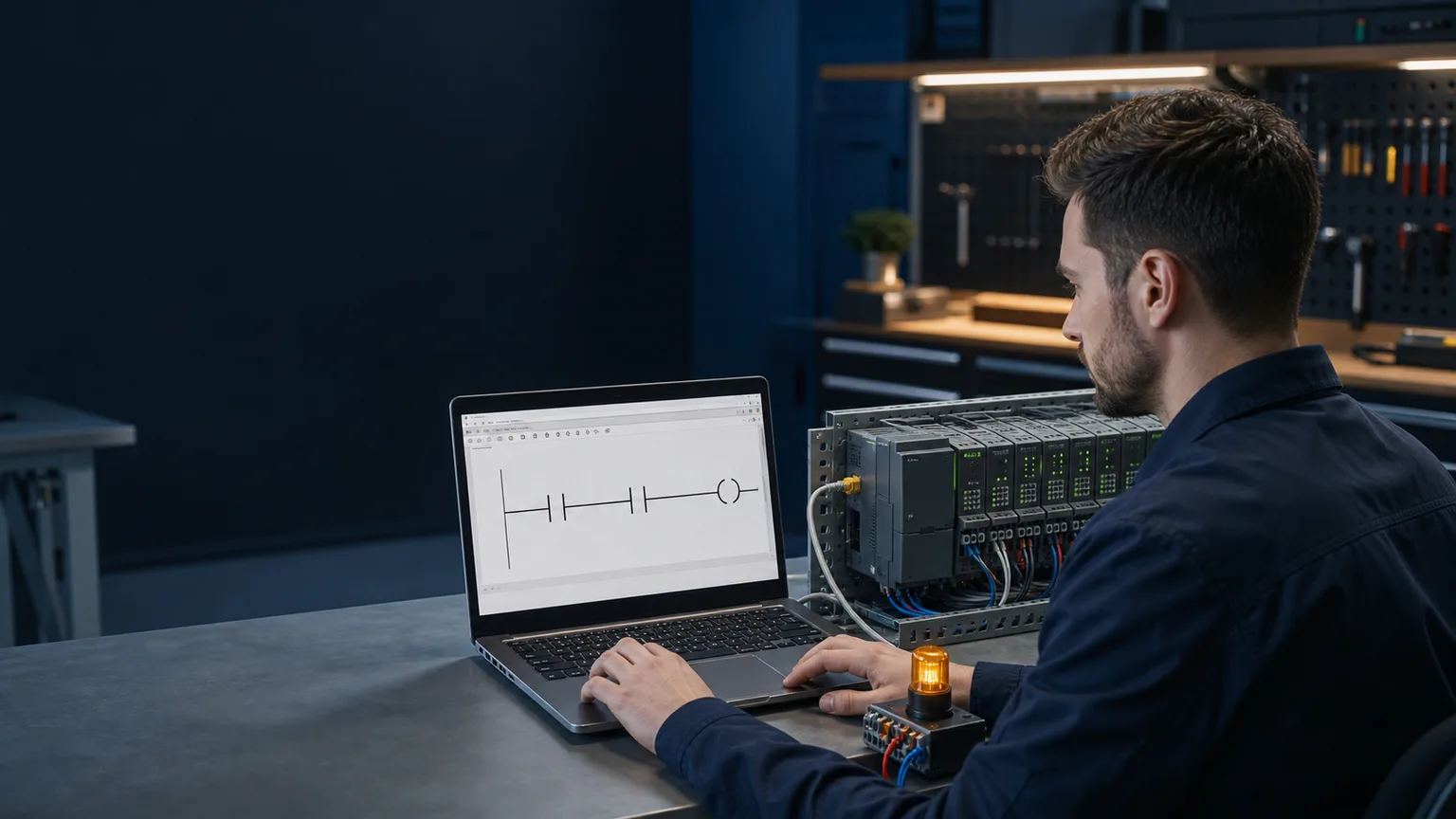

Controls technician using an Allen-Bradley-style browser ladder simulator beside a generic modular PLC I O training rack
01The browser exercise connects a rung to observable I/O without pretending to be a native controller engineering workstation.

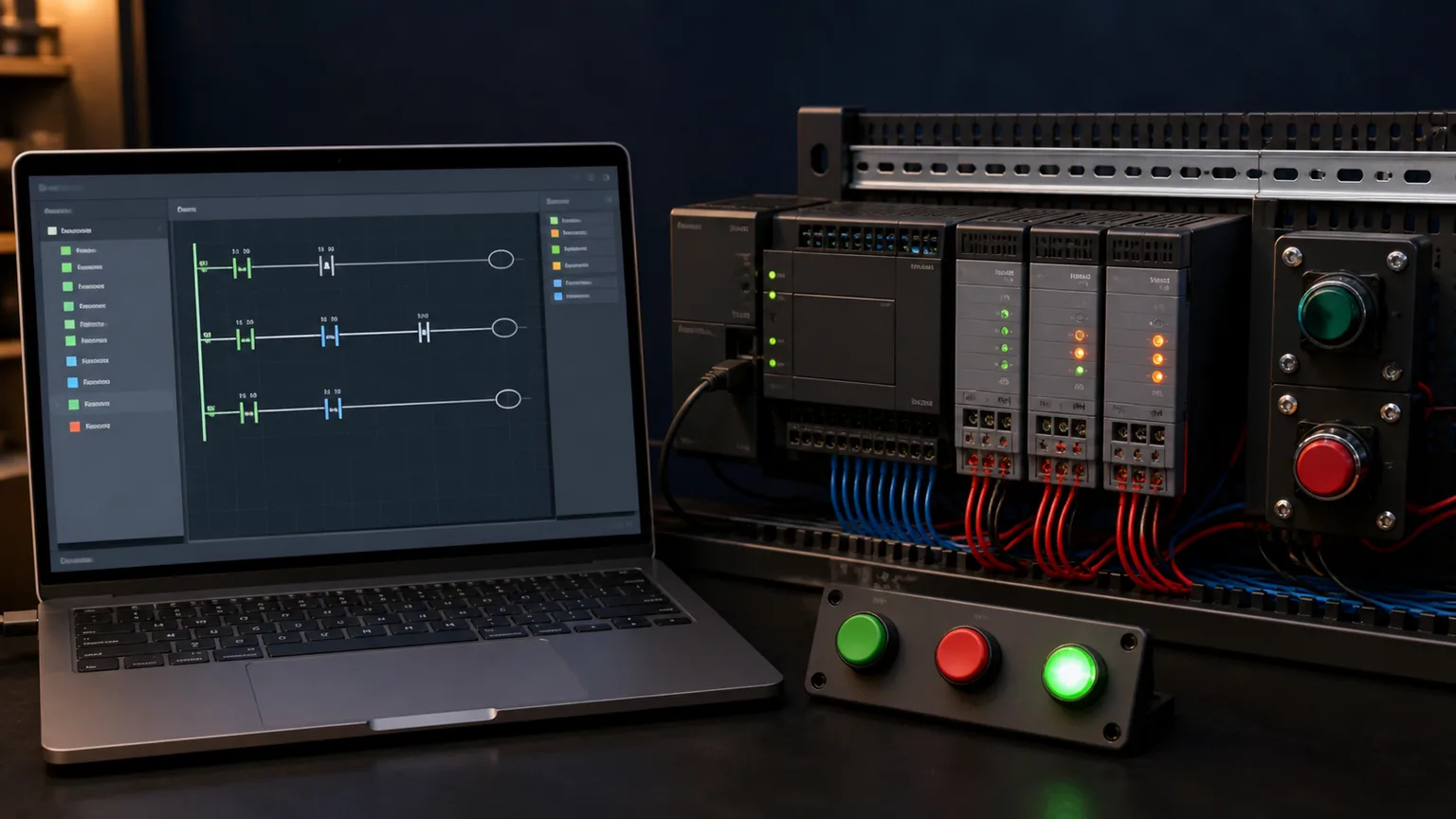

Generic PLC I O trainer with start stop buttons status LEDs and a browser ladder editor for tag-based control practice
02Readable tag names help learners trace a signal from pushbutton to input state, instruction truth and output response.

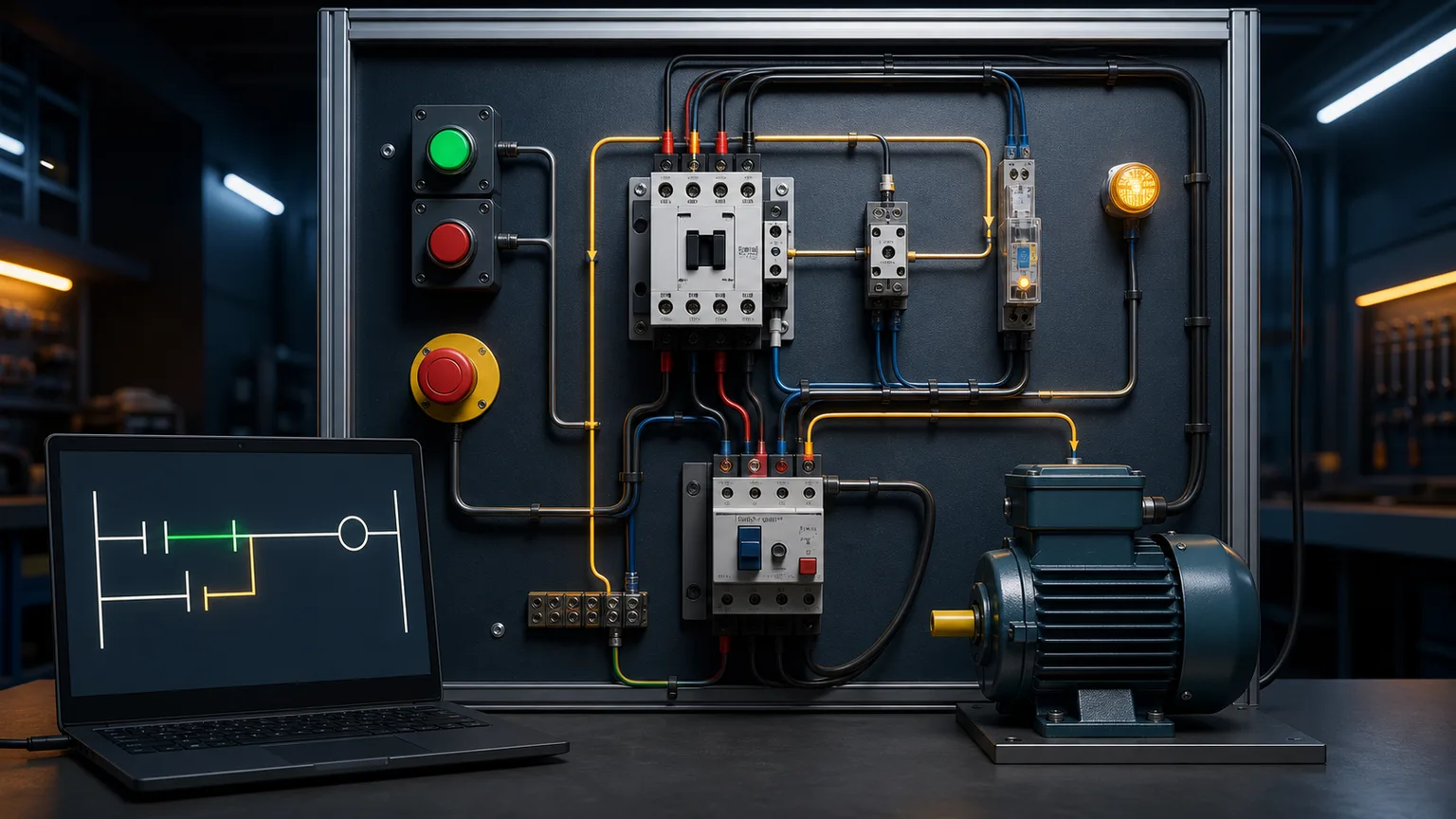

Guarded motor starter training panel with contactor overload start stop controls and an Allen-Bradley-style seal-in rung
03A seal-in exercise gives XIC, XIO and OTE a practical purpose: start, hold, stop and protect a motor command.

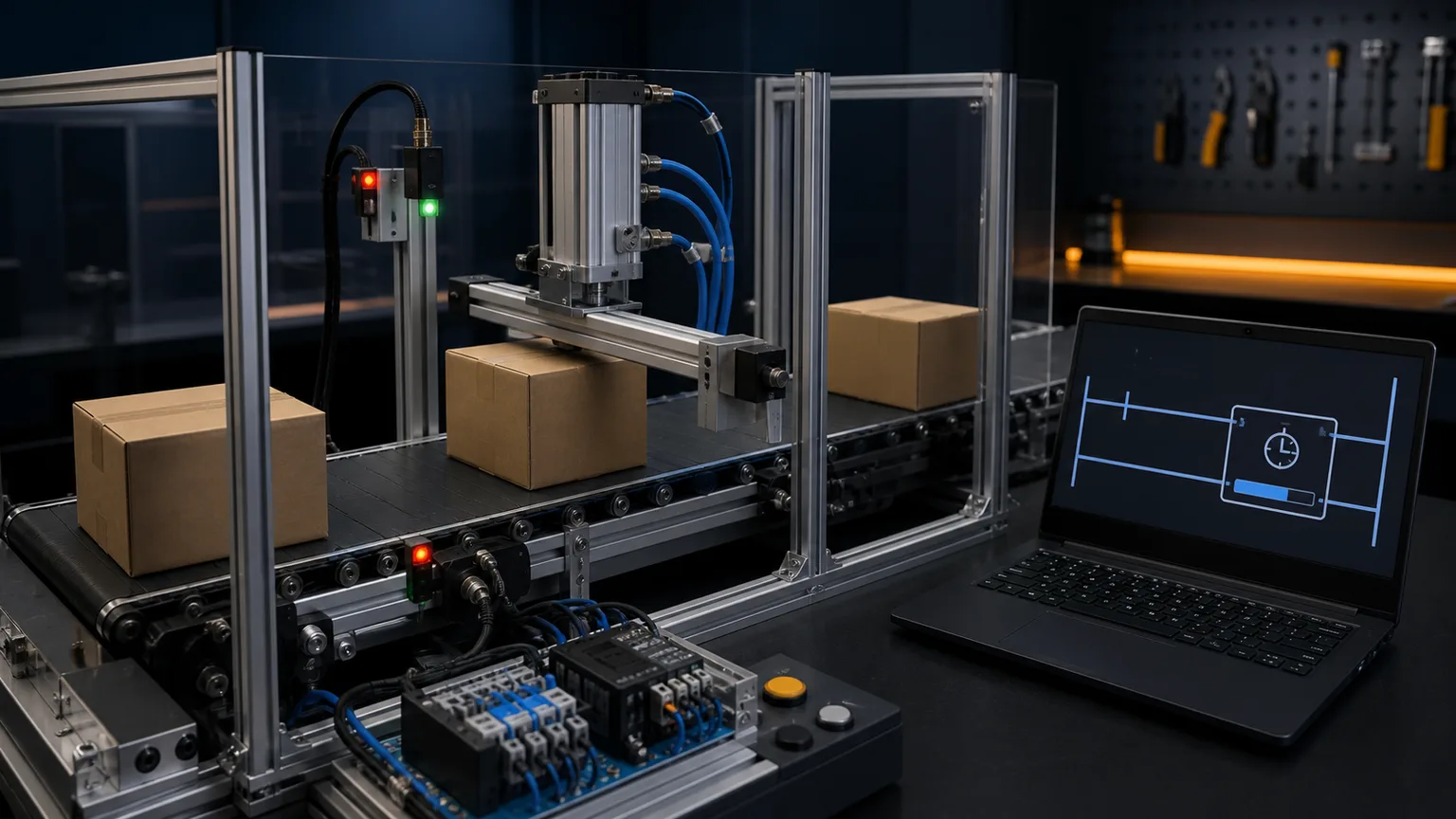

Guarded conveyor training cell using a photoelectric sensor and browser PLC timer block to control a pneumatic stop gate
04A timed conveyor makes rung state visible through sensor detection, elapsed time and a repeatable actuator response.

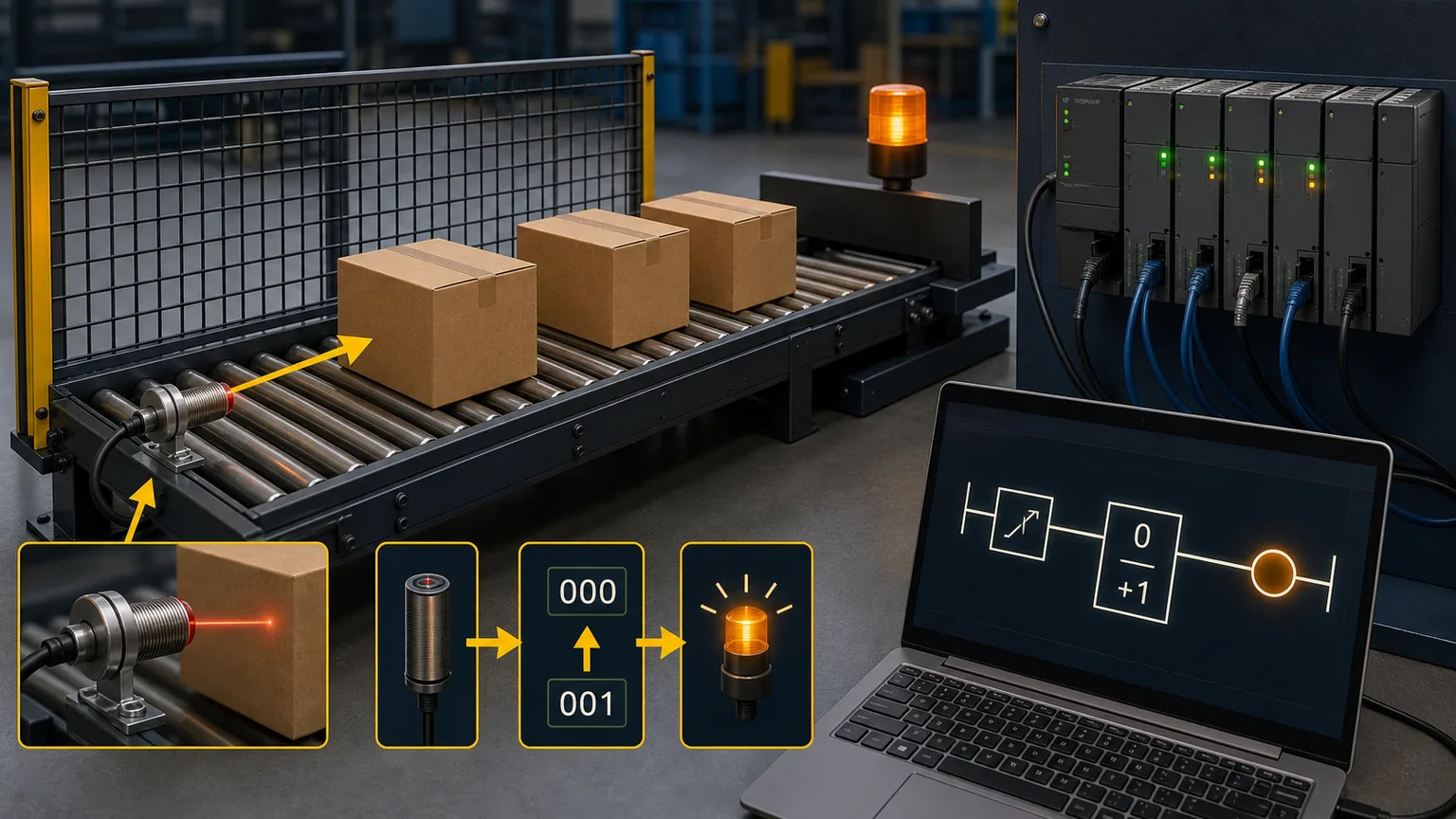

Pallet and carton conveyor exercise with sensor PLC input modules and a browser count-up ladder block
05Counter practice is anchored to a real event: one sensor edge per part, a changing accumulated value and an output at the target count.

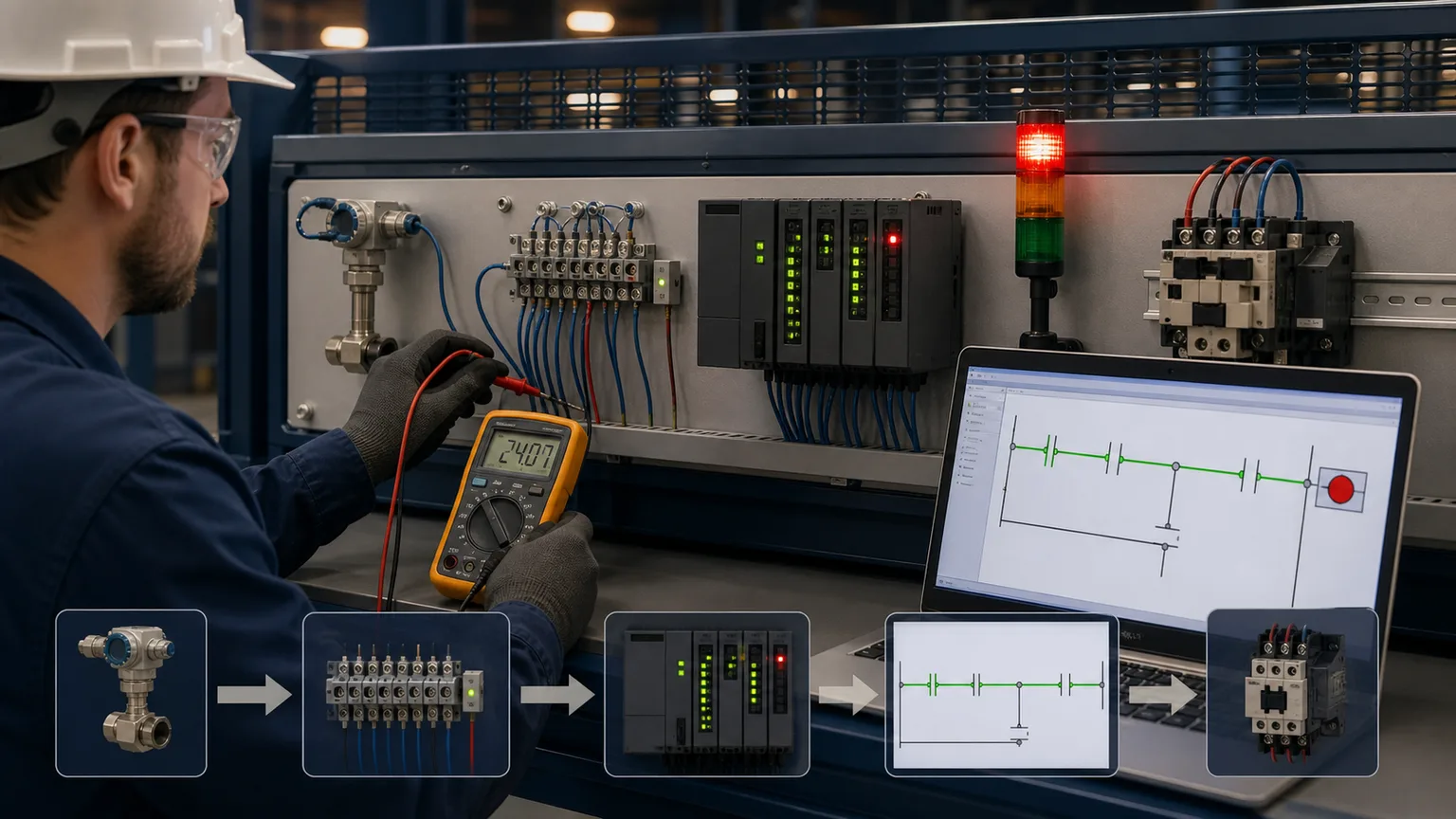

Technician tracing a 24 volt field signal through terminals PLC input LEDs live ladder continuity and an output contactor
06The troubleshooting path stays evidence-based: field device, terminal, input channel, tag, rung, output channel and actuator.

Why AB programmers use this

Familiar instruction vocabulary. Observable execution. No install.

RSLogix-style instructions

Practise common learning mnemonics such as XIC, XIO, OTE, OTL, OTU, TON, TOF and CTU, while keeping the boundary between transferable concepts and a proprietary runtime explicit.

Tag-based addressing

Use readable names such as MotorRun and inspect timer or counter state in context. The lesson model builds tag fluency without reproducing a controller tag database.

140 source-catalogued practice records

Real machine control problems: conveyor sorting, motor sequencing, batch mixing, HVAC control. Write AB-style ladder and get immediate pass/fail feedback.

Allen-Bradley start/stop ladder rung with XIC Start, XIO Stop and OTE Motor output coil in Studio 5000 tag style
A start/stop rung in Allen-Bradley style: XIC Start, XIO Stop, OTE Motor.
Allen-Bradley three-wire motor seal-in latch rung where the OTE Motor coil seals itself around the XIC Start contact
The classic three-wire seal-in: the Motor coil holds itself in around the Start button.

AB instruction set

The Allen-Bradley instructions, mapped to IEC 61131-3

Common Allen-Bradley mnemonics such as XIC, XIO, OTE, OTL/OTU, TON and CTU have transferable IEC concepts, but vendor implementations are not always one-for-one. The learning tracks compare intent and behavior while keeping production validation in the target vendor environment.

Table mapping Allen-Bradley instructions XIC, XIO, OTE, OTL, OTU, TON, CTU to their IEC 61131-3 equivalents
Allen-Bradley instruction mnemonics and their IEC 61131-3 equivalents.

Tag-based, not file-based

ControlLogix and CompactLogix controllers address I/O through a symbolic tag database, not RSLogix 500 file addresses. Physical module data is aliased to descriptive tags your ladder routine reads directly.

ControlLogix and CompactLogix tag-based addressing model showing input and output modules mapped to controller tags and ladder routines
The Logix tag-based model: physical modules → controller tag database → ladder routine.
Allen-Bradley ControlLogix architecture learning diagram showing a CPU scanning input and output modulesA modular PLC rack on a backplane: power supply, CPU processor, input module, output module and a communications module side by side.PLC RACKbackplane busPSUPowerCPUProcessorDIInputDOOutputNETComms
A simplified learning model of the CPU-and-I/O relationship—not a ControlLogix backplane or firmware emulator.

TON on-delay timer behaviour

The timer lesson demonstrates the core on-delay relationship: timing begins with a true enable condition, the accumulated value advances, and the done state changes at the preset. Controller-specific status behavior still belongs in the vendor documentation and target hardware test.

Allen-Bradley TON on-delay timer timing diagram showing the EN rung, ACC accumulator ramp and DN done bit
An Allen-Bradley TON timer: DN turns on only after ACC reaches the PRE preset.

Scenarios

Practice scenarios in AB dialect

Motor Start/Stop

Seal-in rung, OTL/OTU pattern, overload interlock.

View scenario →

Conveyor Sort

Diverter gate, part counter, CTU with DN bit.

View scenario →

Batch Mixer

Multi-step sequence, TON timers, recipe steps.

View scenario →

E-Stop Reset

Safety circuit, monitored E-stop, reset handshake.

View scenario →

Jog/Run Motor

Jog vs run mode, anti-tie-down, feedback check.

View scenario →

Forward/Reverse

Contactor interlock, direction feedback, timer delay.

View scenario →

How it works

01

Prove the first loop

Open /try without an account, complete the guided rung and observe the output.

02

Choose the AB learning dialect

Use the Allen-Bradley-style vocabulary where the exercise supports it and compare the transferable control pattern.

03

Build your program

Use common contacts, coils, timers and counters, then connect each instruction to a scenario purpose.

04

Get graded

Auto-grader runs every test case. Instant pass/fail with per-test breakdown.

Flowchart for getting started practising Allen-Bradley ladder logic — switch to AB dialect, build XIC XIO OTE rungs, add TON and CTU, run the scan, get graded
Getting started: from AB dialect to auto-graded feedback in five steps.

Tag-based addressing tips

Moving from file-based RSLogix 500 to Studio 5000 tag-based addressing trips up most learners. These conventions get you fluent fast.

Checklist of Allen-Bradley tag-based addressing tips — alias tags, reading the DN done bit, timer and counter members, UDTs and tag scope
Allen-Bradley tag and member conventions worth practising early.

Ladder fundamentals

The Allen-Bradley building blocks you practise here

The most transferable AB concepts are ladder symbols, scan order, I/O state, timers, counters and evidence-based troubleshooting. The simulator drills that reasoning so common vocabulary becomes familiar before vendor-specific project work.

Allen-Bradley ladder symbols — XIC examine-if-closed contact, XIO examine-if-open contact, OTE output coil, and OTL/OTU latch coilsThe core ladder logic symbols side by side: XIC examine-if-closed, XIO examine-if-open, OTE output energize, OTL output latch and OTU output unlatch.XICIfXIOIfOTEEnergizeLOTLLatchUOTUUnlatch
The core ladder symbols mapped to AB mnemonics: XIC, XIO, OTE, and the OTL/OTU latch pair.
The Allen-Bradley Logix scan cycle — read inputs into the image table, solve the ladder routines, write the output image table, repeatThe repeating PLC scan cycle: read inputs, execute the ladder logic, update outputs, then housekeeping, looping continuously.1Read Inputs2Execute Logic3Update Outputs4HousekeepingSCANCYCLE
The Logix scan the simulator runs — input scan, program scan, output scan, every cycle.
Allen-Bradley digital I/O — field input devices and output loads mapped to controller tags in the Logix input and output image tablesA digital input pushbutton wired to a PLC input card, and a PLC output card driving a lamp, with a sinking versus sourcing hint.I/O CARDINPUTOUTPUTPushbuttonI:0/0LampO:0/0sinking (NPN) vs sourcing (PNP)
Digital I/O mapped to Logix tags — buttons and sensors in, contactors and lamps out.
An Allen-Bradley CTU count-up counter — the CU bit pulses, ACC increments, and the DN done bit sets when ACC reaches PREA CTU count-up counter: each input pulse increments the accumulator toward the preset, and the done (DN) bit turns on when count reaches preset.count pulsesCTUPRE 5ACC 3ACCcount toward presetDNdone bit
An AB CTU counter — ACC increments on each CU pulse and DN sets at PRE.
Allen-Bradley PLC troubleshooting flow — verify power flow on the rung, check input forcing, confirm the OTE coil energises, then trace the scan in Studio 5000 online modeA PLC fault-diagnosis flow from top to bottom: observe the symptom, check the inputs, check the logic, check the outputs, then apply the fix.SymptomCheck inputsCheck logicCheck outputsFix
The troubleshooting reasoning transfers to online monitoring: prove each link in the signal path before changing the program.
A browser Allen-Bradley PLC simulator running a ladder rung online with no Studio 5000 install — practise XIC, XIO and OTE instructions instantly on any deviceA web browser window running a PLC ladder logic simulator with an input/output strip, requiring no installation or download.plcsimulator.app/playno installINPUTSOUTPUTS
The online AB simulator: a ladder rung running in a browser tab — no Studio 5000 license, any OS.

Where browser practice fits beside vendor tools

Start the first guided program in a browser without installing a vendor engineering environment
Practise on common desktop operating systems before arranging supervised hardware access
Use repeatable scenario tests and guided feedback to expose logic mistakes early
Compare Allen-Bradley-style vocabulary with other PLC learning dialects
Build machine-sequence and fault-tracing fluency before controller-specific commissioning
Use eligible completion evidence as portfolio support, not as a Rockwell credential

Honest scope

Which Allen-Bradley dialect features does this online simulator cover?

The browser editor covers a useful Allen-Bradley-style training subset. It does not claim to model the complete ControlLogix or CompactLogix instruction set, runtime, firmware or project workflow.

Feature / InstructionCoveredNotes
XIC / XIO learning mnemonicsCoveredNormally-open and normally-closed contact concepts in the graphical rung editor
OTE / OTL / OTU learning mnemonicsCoveredOutput, set and reset coil concepts in the graphical rung editor
TON / TOF timer blocksCoveredGeneric on-delay and off-delay behavior for scenario learning and testing
CTU / CTD counter blocksCoveredGeneric count-up and count-down blocks with observable state
Readable tag namesCoveredScenario variables and internal state, not a native controller tag database
Parallel branchesCoveredGraphical series and parallel logic for AND/OR control patterns
PID learning blockCoveredA generic training block, not instruction parity with Rockwell PIDE
Complete Logix instruction libraryNoThe training subset is intentionally narrower than Studio 5000
Studio 5000 project filesNoThe browser does not create or open native .ACD projects
Hardware download or online editingNoNo connection to a ControlLogix or CompactLogix backplane
Safety, motion and drive commissioningNoRequires approved vendor tools, hardware and site procedures

Try it free. No Studio 5000 licence needed.

Complete one guided program without an account, then create a free account for 27 source-tagged catalog records. Pro adds further catalog and learning access according to current entitlements.
