Learn Universal Robots Programming & URScript — Free, in Your Browser

Universal Robots (UR) cobots are programmed two ways: the PolyScope teach pendant and the URScript text language. This guide explains both accurately — movej vs movel, waypoints and blends, gripper I/O, TCP and payload — then lets you write real URScript on a simulated UR5e arm. No robot. No install. No vendor license.

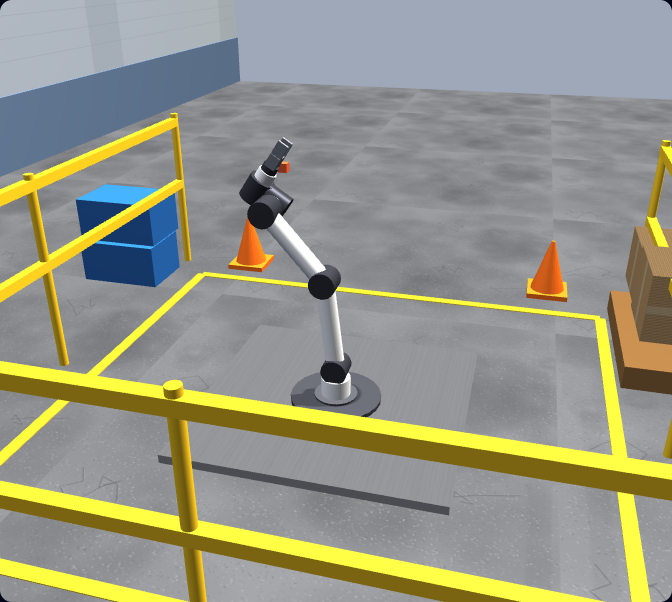

A UR-style six-axis robot arm standing in a 3D factory cell in the browser-based robot simulator, with a parts table, safety railing and pallet, used to learn Universal Robots programming with URScript.

The two ways

How you actually program a Universal Robot

Every UR arm — the UR3e, UR5e, UR10e, UR16e and the larger models — ships with the same software, so the programming approach is identical across the range. There are two ways in, and experienced programmers move between them constantly.

1. PolyScope (graphical teach pendant)

PolyScope is the touchscreen interface on the UR teach pendant. You build a program tree by adding nodes — Waypoints, Move blocks (MoveJ / MoveL), I/O actions, and If / Loop logic. Crucially, you teach poses by physically jogging the arm to a position by hand and saving it as a waypoint, rather than typing coordinates. It is the fastest way to get a working program and the way most operators start. Under the hood, PolyScope generates URScript for everything you build.

2. URScript (text programming)

URScript is UR’s text-based language, with a Python-like syntax. You write commands directly — movej, movel, set_digital_out, set_tcp — either inside a Script node in a PolyScope program, sent over a socket from a PC, or as a complete .script file. Text gives you full control: real variables, math, loops, functions, and threads that are awkward to express in the graphical tree. It is the same language whether you are on a UR3e or a UR16e.

The takeaway: PolyScope and URScript are not rival products — they are two views of the same robot. PolyScope is generated URScript with a friendly front end. Learning URScript is what makes you fluent, because it is what the controller actually runs.

How PolyScope nodes map to URScript

Every graphical node you add on the teach pendant compiles to a URScript line. Once you can read that mapping, the two ways stop feeling separate.

PolyScope nodeGenerated URScript
MoveJ waypointmovej(pose, a=1.4, v=1.0)
MoveL waypointmovel(pose, a=1.2, v=0.25)
Set DO actionset_digital_out(0, True)
Wait DIwhile not get_digital_in(2): sync()
Set TCP / Payloadset_tcp(...) / set_payload(...)
Loop / If nodewhile ... : / if ... :
Diagram of a Universal Robots-style six-axis cobot arm with base, links, gripper and tool centre point, the J1–J6 joints you control when programming a URA six-axis articulated robot arm with a base and a two-finger gripper, its six rotary joints labelled J1 through J6.J1J2J3J4J5J6TCP
A UR arm has six rotary joints (J1–J6); both PolyScope and URScript ultimately move this TCP.

URScript essentials

The URScript commands that matter most

You can program a working UR cell with a small core of URScript. Here is the essential vocabulary, used correctly.

Motion: movej vs movel vs movep

  • movej — moves in joint space. Each joint interpolates from its current angle to the target angle. Fast and efficient, but the tool follows a curved path. Best for free-air moves between stations.
  • movel — moves the tool in a straight Cartesian line at a controlled tool speed. Use it for approach, insertion, and any move where the tool’s path matters.
  • movep — moves the tool linearly at a constant speed with circular blends, for process paths like dispensing or gluing where steady tool velocity is required.

Waypoints & blend radius

A waypoint is a taught target pose. By default the arm stops at each one. Add a blend radius and the arm rounds the corner — it never fully stops, so a chain of moves flows smoothly and the cycle time drops. Bigger blend = smoother and faster, but the path cuts the corner more, so blends are a trade-off you tune per move.

I/O & gripper control

set_digital_out(n, True/False) sets a digital output — the usual way to fire a 2-finger gripper or signal a conveyor. get_digital_in(n) reads an input, for example a part-present sensor. Picking something up is just: move to the part, set the gripper output to close, lift.

set_tcp & set_payload

set_tcp(pose) tells the robot where the working point of the tool is relative to the flange, so movel lines are straight at the tool tip, not the wrist. set_payload(mass) tells the robot how heavy the tool-plus-part is so it controls motion accurately and its safety/force monitoring stays correct. Getting both right is essential for accuracy and safe cobot operation.

Diagram of UR movej versus movel: movej curves through joint space while movel keeps the tool on a straight Cartesian line between the same two waypointsTwo tool paths between the same two points: a curved joint move (movej) in cyan and a straight linear move (movel) in amber.ABmovej — joint arcmovel — straight line
movej vs movel
Diagram of UR waypoints and blend radius: stopping at each taught waypoint versus rounding the corners with a blend for a faster cycleA tool path through four waypoints P1 to P4 with a rounded blend radius smoothing the corner at P3 so the robot does not stop.blend rP1P2P3P4
Waypoints & blends
Diagram of UR gripper I/O: set_digital_out closing and opening a two-finger gripper, and get_digital_in reading a part-present sensorA two-finger robot gripper shown open (DO=0) and closed on a part (DO=1), controlled by a digital output signal.OPENDO = 0set DOCLOSEDpartDO = 1DO active
Gripper & I/O
Diagram of UR set_payload: the mass of the tool plus part the cobot must know to move accurately and keep its force monitoring correctA robot arm holding a payload box at its tool centre point, with a mass and centre-of-gravity indicator and a small downward droop hint.3.0 kgCoGdroop
TCP & payload
# A first URScript pick-and-place on a UR5e
set_tcp(p[0, 0, 0.15, 0, 0, 0])      # tool point: 150 mm gripper
set_payload(0.8)                      # 0.8 kg tool + part

movej(home_q, a=1.4, v=1.0)           # joint move to a safe home pose
movel(pick_approach, a=1.2, v=0.3)    # straight line above the pick
movel(pick, a=0.5, v=0.1)             # straight down onto the part
set_digital_out(0, True)              # close the gripper
sleep(0.4)

movel(pick_approach, a=1.2, v=0.3)    # lift straight up
movel(place, a=1.2, v=0.25)           # straight line to place B
set_digital_out(0, False)             # open the gripper
movej(home_q, a=1.4, v=1.0)           # return home

That is real URScript — the exact same commands run on a physical UR controller. In the simulator you write this, the arm solves the inverse kinematics for each pose, and you watch it run under physics.

Diagram of how UR URScript becomes motion: a movel command is parsed, inverse kinematics solves the joint angles for the target pose, the trajectory is planned, and the UR arm movesThree lines of URScript — movej, movel and set_digital_out — each mapped by an arrow to the corresponding motion on the robot arm.program.urpmovej(p1)movel(p2)set_digital_out(0,True)
Each URScript move is parsed, solved with inverse kinematics, planned, and run on the arm.

Learn UR programming

A step-by-step path from zero to a graded cell

You do not learn robot programming by reading — you learn it by writing code and watching the arm move. This is the order that works, and it is the order the lessons follow. Every step runs against a simulated UR arm and is graded against a real goal.

1 · Jog the arm

Move the UR in joint space and Cartesian space; understand base vs tool frames and how the tool centre point (TCP) is defined before you write any code.

2 · Your first moves

Write movej and movel to send the arm between poses; see how acceleration (a) and velocity (v) change the motion, and when each move type is right.

3 · Digital I/O & gripper

Use set_digital_out and read inputs with get_digital_in; open and close a gripper so the arm can actually pick something up.

4 · Pick-and-place A→B

Combine approach, grasp, lift, traverse, place, and release into the core cobot skill — a complete pick-and-place cycle.

5 · Waypoints & blends

Chain waypoints and add a blend radius so the arm flows smoothly through points instead of stopping at each one, for faster cycle times.

6 · Payload & TCP

Configure set_payload and set_tcp correctly and see how they change reach, accuracy, and the safe speed of the arm.

7 · Protective stop & safety

Trigger and avoid a protective stop; understand cobot force limits and safety planes so your program stays within safe limits.

8 · Graded capstone

Program a complete cell — palletise parts into a pattern with no collision, under a cycle-time budget, and within force limits — and earn the pass.

Cobot safety

Protective stops and force limits

Universal Robots are collaborative robots — designed, with a proper risk assessment, to work near people. They achieve that mainly through force and power limiting: the controller monitors joint forces, and if it detects an unexpected contact or exceeds a configured force threshold, it triggers a protective stop — the arm halts immediately. You also define safety planes, speed limits, and reduced-speed zones in the safety configuration.

For a programmer this means two habits: keep the set_payload value accurate so force monitoring works correctly, and design moves that respect the cell’s safety limits. A simulator is the right place to learn this — you can deliberately trigger a protective stop and learn to avoid it without ever damaging a real arm or risking a person. A collaborative rating is never a substitute for a real safety assessment on a deployed cell.

Diagram of UR cobot safety: force limiting, a configured safety plane, and a protective stop triggered when the arm meets an unexpected over-force contact near a personA collaborative robot surrounded by concentric speed-and-separation monitoring zones, with a protective-stop indicator when a person enters the inner zone.warningreduced speedstopPROTECTIVESTOP
A UR cobot force-limits its motion and protective-stops on unexpected contact.

Why a simulator

Practise the real language, with no robot and no risk

vs a real UR arm

A UR arm costs tens of thousands and one bad move can damage tooling. The simulator lets you fail safely and repeat a task endlessly — the only way to actually build skill — at zero cost and zero risk.

vs URSim

UR’s official URSim is the real controller software but ships as a Linux virtual machine that beginners find heavy to install. Ours opens in a browser tab on any computer, with lessons that teach from zero.

Real URScript

You write the same movej, movel, set_digital_out, set_tcp and set_payload you would type into a real UR — so the language and habits transfer straight onto PolyScope and a physical controller.

Keep learning

More on Universal Robots programming

Questions

Universal Robots programming FAQ

There are two ways, and most programmers use both. The first is PolyScope, the graphical interface on the UR teach pendant: you build a program tree by adding nodes (Waypoints, MoveJ/MoveL blocks, I/O actions, If/Loop logic) and you teach poses by physically jogging the arm to a position and saving it as a waypoint. The second is URScript, UR’s text-based programming language: you write commands like movej and movel directly, either inside a Script node in PolyScope or as a complete .script program sent to the controller. PolyScope is faster to start with; URScript gives you full control for complex logic, math, and reuse.

Start programming a UR arm today.

Write real URScript on a simulated UR5e in your browser. No robot, no install, no vendor license — the first lessons are free.

Independent vendor-platform field guide

Universal Robots programming: implementation, evidence and troubleshooting

Direct answer

Universal Robots programming becomes useful when it connects robot model, software version, base and tool frames, tcp, payload, waypoints, motion type, i/o, cell state and recovery with program node or script statement through path generation, controller output, robot motion and independent process feedback, then proves home, approach, process, depart and return behavior executed at deliberate training settings under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for robot learners planning a bounded Universal Robots task with frames, waypoints, motion, payload, I/O and recovery. The intended result is specific: the learner can design and test a transferable sequence while separating browser evidence from URSim, controller and cell validation.

Automation engineer comparing PLC and robot programming workflows at a vendor-neutral workstation for PolyScope and URScript robot programming workflow
A migration decision is credible when PolyScope and URScript robot programming workflow is tested against the same declared behavior and target constraints.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

robot model, software version, base and tool frames, TCP, payload, waypoints, motion type, I/O, cell state and recovery. For PolyScope and URScript robot programming workflow, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

program node or script statement through path generation, controller output, robot motion and independent process feedback. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

home, approach, process, depart and return behavior executed at deliberate training settings. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

reach, singularity, blend, TCP, payload, lost part, delayed I/O, interruption and restart. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a frame, pose, path, motion, payload, handshake, process or recovery mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

the task recreated in current official tools and validated in the safeguarded target cell. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert robot model, software version, base and tool frames, tcp, payload, waypoints, motion type, i/o, cell state and recovery into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document program node or script statement through path generation, controller output, robot motion and independent process feedback and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply home, approach, process, depart and return behavior executed at deliberate training settings from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test reach, singularity, blend, tcp, payload, lost part, delayed i/o, interruption and restart without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a frame, pose, path, motion, payload, handshake, process or recovery mismatch and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete the task recreated in current official tools and validated in the safeguarded target cell and repeat the affected regression cases.

    Evidence: Transfer is complete only after the example is recreated, compiled and tested in the official engineering environment and on the intended controller family.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Universal Robots programming: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe learner, maintainer and target-platform reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The browser material teaches transferable control behavior and vendor-oriented terminology while keeping project files, firmware and exact runtime behavior outside the claim.

Where simulation stops

The browser environment does not run PolyScope, UR controller dynamics, safety configuration or a production-cell risk assessment.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. robot model, software version, base and tool frames, TCP, payload, waypoints, motion type, I/O, cell state and recovery. For PolyScope and URScript robot programming workflow, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert robot model, software version, base and tool frames, tcp, payload, waypoints, motion type, i/o, cell state and recovery into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the learner, maintainer and target-platform reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about PolyScope and URScript robot programming workflow? A defensible short answer is: Start with the operating contract and evidence path: robot model, software version, base and tool frames, tcp, payload, waypoints, motion type, i/o, cell state and recovery, followed by program node or script statement through path generation, controller output, robot motion and independent process feedback. Add advanced features only after the baseline is predictable.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. program node or script statement through path generation, controller output, robot motion and independent process feedback. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document program node or script statement through path generation, controller output, robot motion and independent process feedback and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise PolyScope and URScript robot programming workflow effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. home, approach, process, depart and return behavior executed at deliberate training settings. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply home, approach, process, depart and return behavior executed at deliberate training settings from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. reach, singularity, blend, TCP, payload, lost part, delayed I/O, interruption and restart. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test reach, singularity, blend, tcp, payload, lost part, delayed i/o, interruption and restart without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a frame, pose, path, motion, payload, handshake, process or recovery mismatch or reach, singularity, blend, tcp, payload, lost part, delayed i/o, interruption and restart can expose assumptions that never appear during ideal startup and steady operation.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a frame, pose, path, motion, payload, handshake, process or recovery mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a frame, pose, path, motion, payload, handshake, process or recovery mismatch and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Can browser practice replace official software or hardware? A defensible short answer is: No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. the task recreated in current official tools and validated in the safeguarded target cell. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete the task recreated in current official tools and validated in the safeguarded target cell and repeat the affected regression cases. The acceptance record should show this result: transfer is complete only after the example is recreated, compiled and tested in the official engineering environment and on the intended controller family. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How should progress be documented? A defensible short answer is: Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

Answer surface / 07

Questions people ask about Universal Robots programming

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What should I learn first about PolyScope and URScript robot programming workflow?

Start with the operating contract and evidence path: robot model, software version, base and tool frames, tcp, payload, waypoints, motion type, i/o, cell state and recovery, followed by program node or script statement through path generation, controller output, robot motion and independent process feedback. Add advanced features only after the baseline is predictable.

How do I practise PolyScope and URScript robot programming workflow effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a frame, pose, path, motion, payload, handshake, process or recovery mismatch or reach, singularity, blend, tcp, payload, lost part, delayed i/o, interruption and restart can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

What should I do when the answer differs from a guide?

Check assumptions, version, units and initial state first. Reduce the case, compare one boundary at a time and prefer current primary documentation for target-specific behavior.

When is a PolyScope and URScript robot programming workflow exercise finished?

Transfer is complete only after the example is recreated, compiled and tested in the official engineering environment and on the intended controller family.

Industrial robotics path

Progress from motion concepts to a complete cell sequence

Practise coordinates and commands, connect the robot handshake to PLC state, then validate safety and vendor-specific behavior in the correct tools.
