Learn KUKA Robot Programming Fundamentals Online

KUKA robots are programmed in KRL — the KUKA Robot Language — using the smartPAD teach pendant and KUKA.Sim for offline work. Before you touch KRL, you have to understand the universal robot-programming fundamentals: frames and TCP, joint vs linear motion, waypoints, I/O, and pick-and-place. Practise all of those hands-on in your browser, free to start — on a real-code robot simulator whose skills transfer straight to KUKA.

Honest note: our simulator is not a KUKA emulator and does not run KRL. It teaches the brand-independent fundamentals using real URScript on a UR-style arm — the concepts that carry over to KUKA and KRL.

How KUKA robots are programmed

KRL, the smartPAD, KUKA.Sim and WorkVisual

KUKA industrial robots are programmed in KRL — the KUKA Robot Language. A KRL program is a sequence of motion and logic instructions: PTP for point-to-point joint motion, LIN for straight-line Cartesian motion, and CIRC for circular motion, alongside variables, tool and base frame definitions, and digital I/O via $OUT[] and $IN[]. A KRL program is normally split across a .src motion file and a paired .dat data file, and the language is Pascal-style — close in feel to Structured Text. These programs run on the KUKA KR C controller (KRC4 / KRC5).

Day to day, a KUKA programmer works at the smartPAD, KUKA’s teach pendant — touchscreen, 6D jogging mouse, mode selector, and three-position enabling switch. You jog the arm, teach points, set the tool centre point and base frames, and step through the program. For larger jobs, integrators develop offline in KUKA.Sim (3D cell modelling, reach-checking, and cycle-time estimation), configure the controller and I/O in WorkVisual, and test programs on a PC with the OfficeLite virtual KR C controller before deploying to a real robot.

All of that — KRL syntax, the smartPAD, KUKA.Sim, WorkVisual — sits on top of one shared foundation: the way an articulated robot arm actually moves. That foundation is what most beginners are really missing, and it is brand-independent.

A six-axis articulated robot arm with its six rotary joints labelled, the same articulated kinematics as a KUKA KR-series industrial robot, taught hands-on in the browser robot simulator.A six-axis articulated robot arm with a base and a two-finger gripper, its six rotary joints labelled J1 through J6.J1J2J3J4J5J6TCP
The same six-axis articulated kinematics behind a KUKA KR-series robot — joints A1–A6 — which you jog and program hands-on in the browser simulator.
A comparison of industrial robot programming languages including KUKA KRL, ABB RAPID, FANUC TP and Universal Robots URScript, showing that the underlying motion concepts are shared across vendors.Four robot programming languages — URScript, ABB RAPID, KUKA KRL and FANUC TP — each expressing the same joint move, showing the concepts transfer across vendors.same move — four dialectsURScriptUniversal Robotsmovej(p1)RAPIDABBMoveJ p1KRLKUKAPTP P1TPFANUCJ P[1]
KUKA KRL is one vendor robot language among many — the motion concepts are shared; only the keywords (PTP/LIN/CIRC vs movej/movel) change.

What transfers

The fundamentals our simulator teaches — and where they land on a KUKA

You program our simulator in real robot code (URScript) on a six-axis arm. The keywords differ from KRL, but the concepts are the same articulated-arm fundamentals every KUKA programmer relies on.

Practised in the simulatorOn a real KUKA / in KRL
Joint vs linear motion (movej / movel)PTP point-to-point vs LIN linear motion in KRL
Tool centre point & payload setupTool frame and load data on the KR C controller
Base vs tool framesBASE and TOOL coordinate frames in KRL
Waypoints & blend radiusTaught points and approximate (C_DIS / C_PTP) blends
Digital I/O & gripper controlOUT / IN signals driving the end-effector
Protective stop / force & speed limitsSafe operation and collaborative limits on KUKA cobots

Learn these once and moving to KRL is mostly relearning keywords, not relearning how a robot thinks. This mapping is conceptual — the simulator does not generate or run KRL or .src/.dat files; for that you would use a real smartPAD, KUKA.Sim, or WorkVisual.

A diagram contrasting joint motion and linear motion of a robot arm — the KUKA PTP point-to-point move versus the LIN straight-line Cartesian move — practised in the browser robot simulator.Two tool paths between the same two points: a curved joint move (movej) in cyan and a straight linear move (movel) in amber.ABmovej — joint arcmovel — straight line
Joint motion (KUKA PTP / URScript movej) takes the fast curved route through joint space; linear motion (KUKA LIN / movel) holds a straight Cartesian line. Choosing between them is a move-by-move decision on every KUKA program.
A diagram of digital I/O driving a robot gripper to open and close, the same input/output concept as KUKA $OUT[] and $IN[] signals, taught in the browser robot simulator.A two-finger robot gripper shown open (DO=0) and closed on a part (DO=1), controlled by a digital output signal.OPENDO = 0set DOCLOSEDpartDO = 1DO active
Driving a gripper with digital outputs and reading inputs — the same I/O model as KUKA $OUT[] / $IN[] signals — to actually grasp and move a part.

An honest roadmap to KUKA

From zero to programming a KUKA — a realistic path

We will be straight with you: this site is not a KUKA emulator and will not make you a certified KRL programmer on its own. What it does is remove the most expensive, slowest step — building real robot-motion intuition — so the KUKA-specific layer is much faster to learn. Here is a path that works.

1

Build the fundamentals hands-on (here, free)

Program a six-axis arm in real code: frames, TCP, joint vs linear motion, waypoints, I/O, and a full graded pick-and-place cycle. This is the part that takes practice, and you can do it free in your browser.

2

Learn the KRL layer

With the concepts solid, map them onto KRL — PTP, LIN, CIRC, BASE and TOOL frames, and KUKA I/O. Reading and writing KRL is much faster once the underlying motion model is already familiar.

3

Get hands-on with KUKA tools

Practise in KUKA.Sim or OfficeLite, or on a real robot with the smartPAD. KUKA College courses and the official documentation cover the brand-specific details and safety procedures.

4

Specialise: cells, cobots, integration

Move into real applications — palletising, welding, machine tending, or collaborative assembly on an LBR iiwa — and the PLC and HMI side of a robot cell, which our PLC simulator covers.

A diagram of robot coordinate frames — world, base and tool frames with a tool centre point — equivalent to KUKA WORLD, BASE and TOOL frames, taught in the browser robot simulator.Two coordinate frames — a fixed base frame and a tool centre point (TCP) frame — each drawn with red X, green Y, and blue Z axis arrows.ZXYBASEZXYTCP
WORLD, BASE and TOOL frames decide where the robot thinks it is — define the tool centre point wrong and every taught KUKA point is off. Frames are step one of the fundamentals.
A diagram of robot waypoints joined by a blend radius for smooth continuous motion, the same concept as KUKA approximate positioning blends, taught in the browser robot simulator.A tool path through four waypoints P1 to P4 with a rounded blend radius smoothing the corner at P3 so the robot does not stop.blend rP1P2P3P4
Chaining waypoints with a blend radius for smooth, fast cycles — the same idea as KUKA approximate-positioning (C_PTP / C_DIS) blends instead of stop-start motion.

KUKA cobots

The LBR iiwa, iisy, and collaborative safety

KUKA’s collaborative robots include the LBR iiwa — seven axes (7-DOF) with integrated joint-torque sensing so it can work safely alongside people on sensitive assembly tasks — and the newer LBR iisy cobot family aimed at easy, plug-and-produce setup. KUKA also offers the KMR iiwa, an autonomous mobile platform that carries an LBR iiwa around a facility. Cobots add a safety layer on top of ordinary robot programming: force and speed limits, collision detection and response, and safe human collaboration.

Our simulator teaches the collaborative-safety mindset hands-on — protective stops, force limits, and keeping a pick-and-place cycle within safe contact limits — so that safety thinking carries over to a real KUKA cobot. Programming a seven-axis LBR iiwa in KRL adds its own specifics, but the safety fundamentals you build here are exactly the ones a collaborative cell demands.

A diagram of collaborative robot safety — a force-limited cobot stopping on contact with a person inside a safe zone — the same safety mindset a KUKA LBR iiwa or iisy cobot requires, taught in the browser robot simulator.A collaborative robot surrounded by concentric speed-and-separation monitoring zones, with a protective-stop indicator when a person enters the inner zone.warningreduced speedstopPROTECTIVESTOP
Force and speed limits, safe zones and a protective stop on unexpected contact — the collaborative-safety discipline a KUKA LBR iiwa or iisy cobot cell demands, graded in the simulator.
A diagram of offline robot programming — building and simulating a robot cell on a PC before deployment — the same workflow as KUKA.Sim, WorkVisual and OfficeLite, with fundamentals taught in the browser robot simulator.Offline-programming flow: write and simulate the robot program on a laptop, deploy it, then run it on the real robot.write & simulate(offline)deploytransferreal robot
Offline programming: model the cell, plan and reach-check paths, and validate a program away from the robot — the role KUKA.Sim, WorkVisual and OfficeLite play in a real KUKA workflow.

Offline programming

KUKA.Sim, WorkVisual and OfficeLite

Serious KUKA work happens offline before it ever reaches the floor. KUKA.Sim builds a 3D model of the cell so you can plan paths, reach-check, and estimate cycle time; WorkVisual configures the KR C controller, fieldbus and I/O, and safety, and deploys the KRL project; and OfficeLite runs a virtual KR C controller on a PC so you can test a program without hardware.

These are professional, KUKA-specific tools — and they all assume you already understand frames, the tool centre point, motion types, and I/O. That is exactly the layer our browser simulator builds first, so the day you open KUKA.Sim or WorkVisual you are learning the tool, not the fundamentals underneath it. See how a free browser sim compares to desktop offline-programming software.

What you practise

Hands-on, graded, in the browser

Every lesson is graded against a real goal, so you are not just watching an animation — you are building skill you can defend in an interview or on the floor.

Frames & TCP

Work in base vs tool frames and define the tool centre point — the coordinate thinking behind every robot move, KUKA included.

Joint vs linear motion

When point-to-point joint motion is right and when you need a straight Cartesian line — the PTP-vs-LIN decision in KRL terms.

Waypoints & blends

Chain waypoints with blend radii for smooth, fast cycles instead of stop-start motion.

Digital I/O & gripper

Read and set digital signals to open and close a gripper and actually move a part.

Pick-and-place A→B

Approach, grasp, lift, traverse, place, release — the backbone of real robot work.

Collaborative safety

Protective stops, force limits, and safe contact — the cobot mindset the LBR iiwa demands.

A diagram of a robot pick-and-place cycle — approach, grasp, lift, traverse, place and release a part — the core task taught and graded in the browser robot simulator and the backbone of real KUKA robot work.A repeating pick-and-place cycle around a loop: approach, close gripper, lift, traverse, place, open gripper.1Approach2Close3Lift4Traverse5Place6OpenLOOP
The pick-and-place cycle — approach, grasp, lift, traverse, place, release — graded against a real goal. It is the backbone of palletising, machine tending and assembly on any KUKA cell.
A diagram showing how a robot's payload at the gripper affects reach and motion, the same load-data concept you configure on a KUKA KR C controller, taught in the browser robot simulator.A robot arm holding a payload box at its tool centre point, with a mass and centre-of-gravity indicator and a small downward droop hint.3.0 kgCoGdroop
Payload at the tool changes reach, accuracy and safe speed — the same load-data thinking you configure on a KUKA KR C controller.

Prove the fundamentals

A graded path you can show an employer

Working through the fundamentals here is not just practice — it is a path. Go from your first jog, through frames, motion, I/O and a full graded pick-and-place, to a certificate of completion you can put on a CV or take into an interview as evidence you understand how a robot is programmed. None of it is KUKA-specific, and that is the point: it proves the brand-independent foundation a KUKA employer expects you to already have before you learn KRL.

A diagram of the learning path from robot-programming fundamentals through graded lessons to a certificate of completion, a transferable foundation before learning KUKA-specific KRL.A progression from lessons, through three completed checkmarks, to a certificate seal — learn then certify.lessonspass graded taskscertificate
Fundamentals → graded lessons → pick-and-place capstone → certificate. A transferable robot-programming foundation, before the KUKA-specific KRL layer.

Keep exploring

More robot programming paths

Questions

KUKA robot programming FAQ

KUKA industrial robots are programmed in KRL — the KUKA Robot Language. You typically jog the arm and teach points with the smartPAD teach pendant, then write or refine a KRL program (PTP, LIN, and CIRC motion commands, plus I/O and logic) that the KR C controller executes. Programs can be built directly on the controller or developed offline in KUKA.Sim and loaded onto the robot. The everyday workflow — define frames and a tool centre point, teach waypoints, choose joint vs linear motion, drive I/O for a gripper, and build a pick-and-place cycle — is the same set of fundamentals our browser simulator teaches hands-on.

Build the robot fundamentals that transfer to KUKA.

Frames, TCP, joint vs linear motion, waypoints, I/O, pick-and-place, and collaborative safety — hands-on, graded, in your browser. Free to start.

Independent vendor-platform field guide

KUKA robot programming guide: implementation, evidence and troubleshooting

Direct answer

KUKA robot programming guide becomes useful when it connects controller and software generation, krl context, base, tool, load data, points, ptp and linear motion, approximation, i/o, submit or program state and safety boundary with program statements through frames, interpolation and controller state to robot motion, gripper i/o, plc handshake, process feedback and recoverable cell state, then proves home, approach, pick, depart, place and return behavior executes at deliberate training speed with explicit handshake evidence under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for robot and PLC programmers learning transferable industrial robot concepts before using official KUKA tools and a safeguarded cell. The intended result is specific: the learner can describe one pick-and-place by base and tool frames, points, motion types, speed, approximation, I/O handshake and interruption recovery.

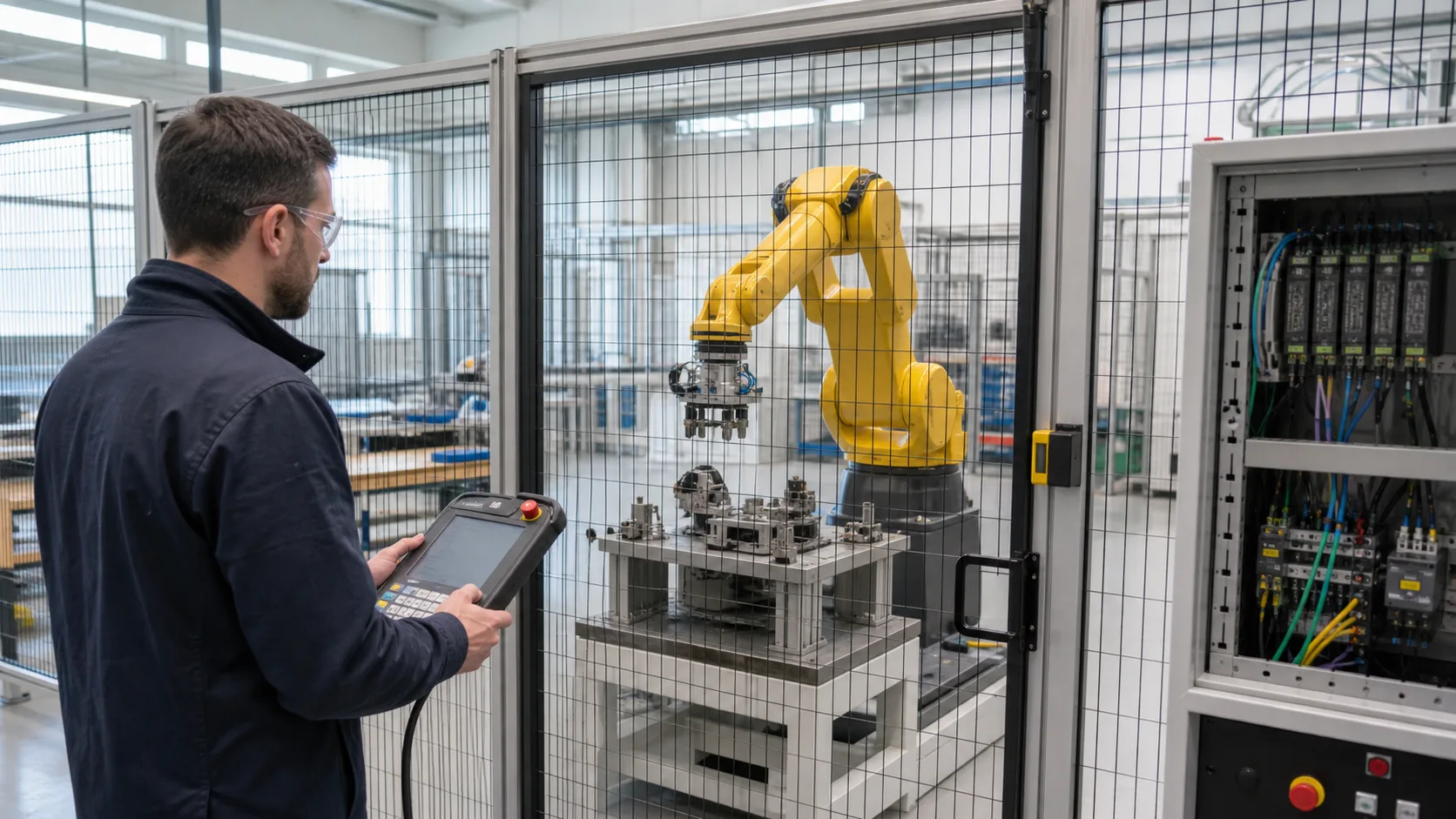

an automation engineer outside a safeguarded six-axis robot cell validating motion, tooling, I/O and recovery while studying KUKA robot frames, motion, I/O handshakes and recovery
The training scene connects KUKA robot frames, motion, I/O handshakes and recovery to a declared initial condition, observable boundaries, safe limits and repeatable acceptance evidence.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

controller and software generation, KRL context, base, tool, load data, points, PTP and linear motion, approximation, I/O, submit or program state and safety boundary. For KUKA robot frames, motion, I/O handshakes and recovery, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

program statements through frames, interpolation and controller state to robot motion, gripper I/O, PLC handshake, process feedback and recoverable cell state. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

home, approach, pick, depart, place and return behavior executes at deliberate training speed with explicit handshake evidence. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

undefined frame, wrong load, unreachable point, singularity, approximation near process, lost grip, safety stop, interruption, manual recovery and restart. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a program, frame, tool, load, point, motion, I/O, handshake, safety-state or recovery mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

the program recreated, simulated and accepted in current official KUKA tools and the safeguarded target cell. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert controller and software generation, krl context, base, tool, load data, points, ptp and linear motion, approximation, i/o, submit or program state and safety boundary into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document program statements through frames, interpolation and controller state to robot motion, gripper i/o, plc handshake, process feedback and recoverable cell state and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply home, approach, pick, depart, place and return behavior executes at deliberate training speed with explicit handshake evidence from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test undefined frame, wrong load, unreachable point, singularity, approximation near process, lost grip, safety stop, interruption, manual recovery and restart without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a program, frame, tool, load, point, motion, i/o, handshake, safety-state or recovery mismatch and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete the program recreated, simulated and accepted in current official kuka tools and the safeguarded target cell and repeat the affected regression cases.

    Evidence: Transfer is complete only after the example is recreated, compiled and tested in the official engineering environment and on the intended controller family.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for KUKA robot programming guide: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe learner, maintainer and target-platform reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The browser material teaches transferable control behavior and vendor-oriented terminology while keeping project files, firmware and exact runtime behavior outside the claim.

Where simulation stops

The site does not execute KRL, emulate a KUKA controller, validate a real path, provide safety training or replace current official software and hardware.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. controller and software generation, KRL context, base, tool, load data, points, PTP and linear motion, approximation, I/O, submit or program state and safety boundary. For KUKA robot frames, motion, I/O handshakes and recovery, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert controller and software generation, krl context, base, tool, load data, points, ptp and linear motion, approximation, i/o, submit or program state and safety boundary into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the learner, maintainer and target-platform reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What language do KUKA robots use? A defensible short answer is: Many KUKA industrial controller families use KUKA Robot Language, but exact syntax, options and workflow depend on controller and software generation.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. program statements through frames, interpolation and controller state to robot motion, gripper I/O, PLC handshake, process feedback and recoverable cell state. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document program statements through frames, interpolation and controller state to robot motion, gripper i/o, plc handshake, process feedback and recoverable cell state and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Can I learn KUKA programming without a robot? A defensible short answer is: You can learn frames, motion selection, state, I/O and recovery concepts in simulation; exact KRL, paths, loads, safety and deployment require official tools and supervised target-cell work.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. home, approach, pick, depart, place and return behavior executes at deliberate training speed with explicit handshake evidence. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply home, approach, pick, depart, place and return behavior executes at deliberate training speed with explicit handshake evidence from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about KUKA robot frames, motion, I/O handshakes and recovery? A defensible short answer is: Start with the operating contract and evidence path: controller and software generation, krl context, base, tool, load data, points, ptp and linear motion, approximation, i/o, submit or program state and safety boundary, followed by program statements through frames, interpolation and controller state to robot motion, gripper i/o, plc handshake, process feedback and recoverable cell state. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. undefined frame, wrong load, unreachable point, singularity, approximation near process, lost grip, safety stop, interruption, manual recovery and restart. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test undefined frame, wrong load, unreachable point, singularity, approximation near process, lost grip, safety stop, interruption, manual recovery and restart without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise KUKA robot frames, motion, I/O handshakes and recovery effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a program, frame, tool, load, point, motion, I/O, handshake, safety-state or recovery mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a program, frame, tool, load, point, motion, i/o, handshake, safety-state or recovery mismatch and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. the program recreated, simulated and accepted in current official KUKA tools and the safeguarded target cell. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete the program recreated, simulated and accepted in current official kuka tools and the safeguarded target cell and repeat the affected regression cases. The acceptance record should show this result: transfer is complete only after the example is recreated, compiled and tested in the official engineering environment and on the intended controller family. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a program, frame, tool, load, point, motion, i/o, handshake, safety-state or recovery mismatch or undefined frame, wrong load, unreachable point, singularity, approximation near process, lost grip, safety stop, interruption, manual recovery and restart can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about KUKA robot programming guide

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What language do KUKA robots use?

Many KUKA industrial controller families use KUKA Robot Language, but exact syntax, options and workflow depend on controller and software generation.

Can I learn KUKA programming without a robot?

You can learn frames, motion selection, state, I/O and recovery concepts in simulation; exact KRL, paths, loads, safety and deployment require official tools and supervised target-cell work.

What should I learn first about KUKA robot frames, motion, I/O handshakes and recovery?

Start with the operating contract and evidence path: controller and software generation, krl context, base, tool, load data, points, ptp and linear motion, approximation, i/o, submit or program state and safety boundary, followed by program statements through frames, interpolation and controller state to robot motion, gripper i/o, plc handshake, process feedback and recoverable cell state. Add advanced features only after the baseline is predictable.

How do I practise KUKA robot frames, motion, I/O handshakes and recovery effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a program, frame, tool, load, point, motion, i/o, handshake, safety-state or recovery mismatch or undefined frame, wrong load, unreachable point, singularity, approximation near process, lost grip, safety stop, interruption, manual recovery and restart can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

Industrial robotics path

Progress from motion concepts to a complete cell sequence

Practise coordinates and commands, connect the robot handshake to PLC state, then validate safety and vendor-specific behavior in the correct tools.
