PLC Programming for Beginners — A Practical Learning Path

See the whole learning progression

From a field signal to a commissioned control system

PLC programming makes sense when the code stays connected to the machine. These six views show the progression from I/O and scan behavior to language choice, increasing system complexity and supervised hardware practice.

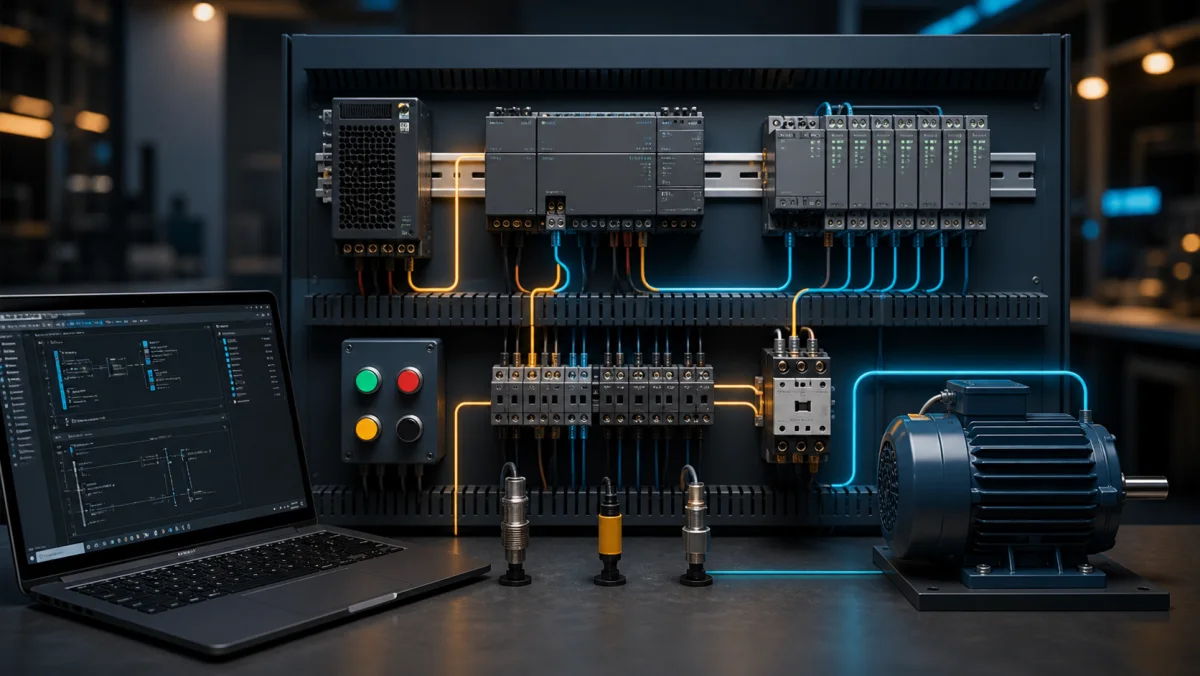

PLC training bench showing a controller, digital I O modules, terminal blocks, pushbuttons, sensors, motor and programming laptop
01Start with the complete signal path: a field device changes an input, the CPU evaluates logic, and an output module drives an actuator.

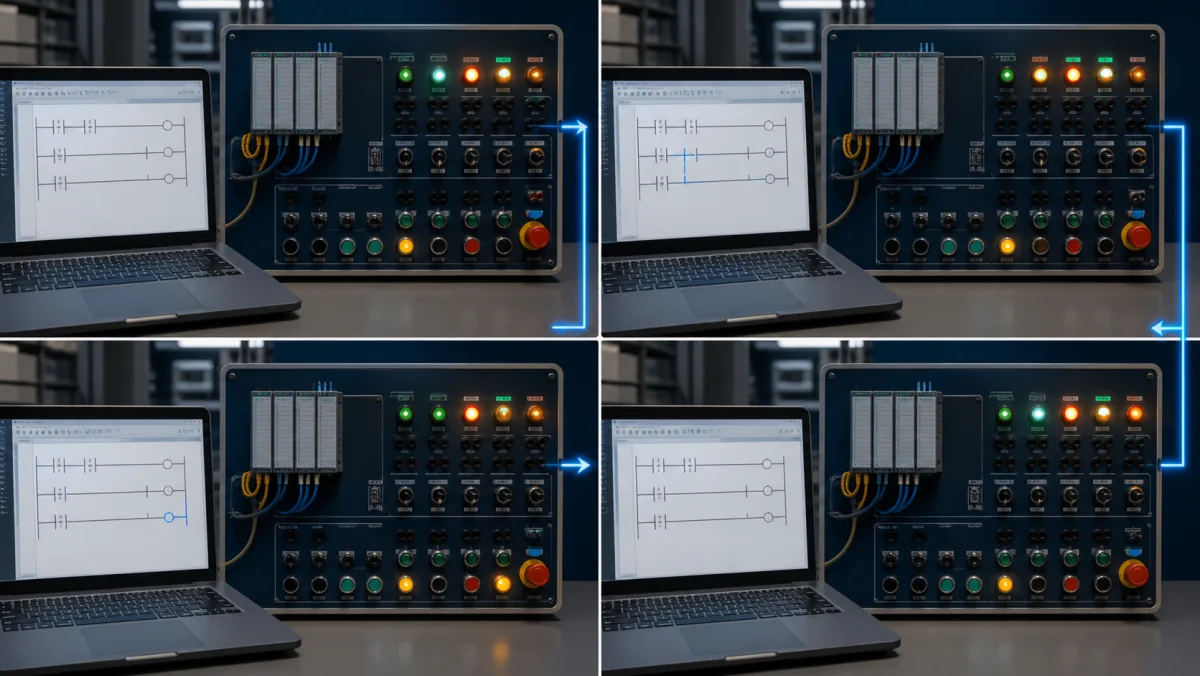

Four-stage PLC scan cycle training bench showing read inputs, execute ladder logic, write outputs and repeat
02Use the scan-cycle model to explain when input values are sampled, when logic executes and when physical outputs change.

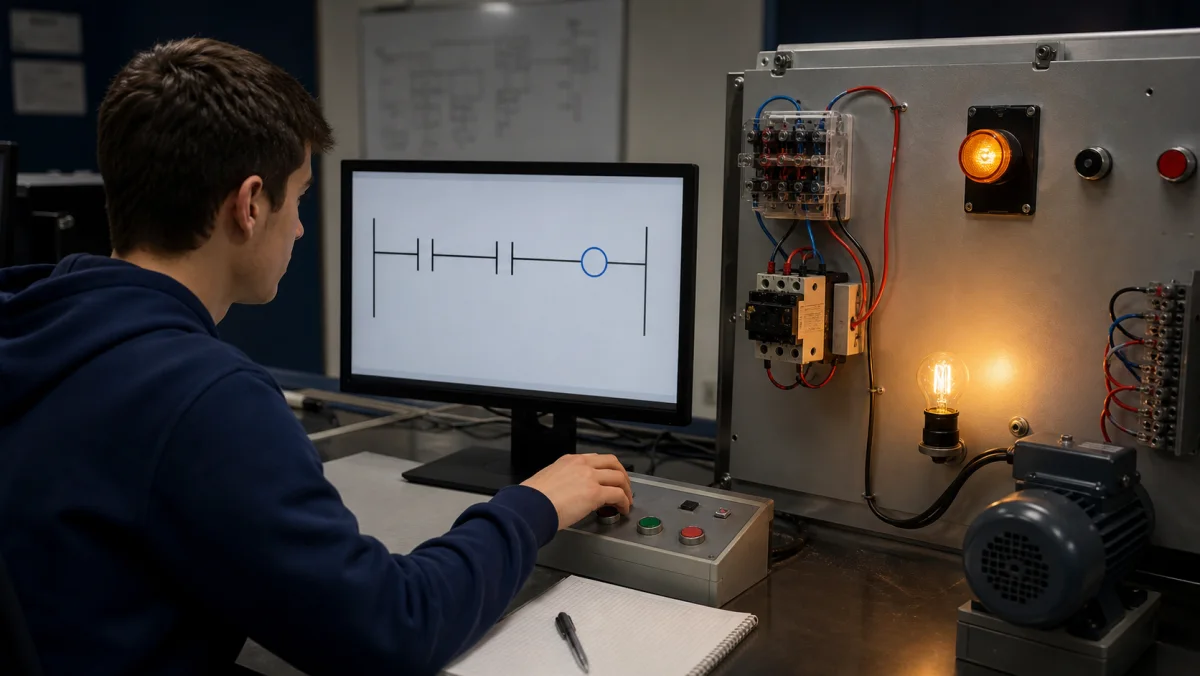

Beginner building a first ladder logic contact and coil program beside an illuminated PLC training lamp
03A first program should produce an obvious physical result: one contact controls one coil and the learner can explain why it energises.

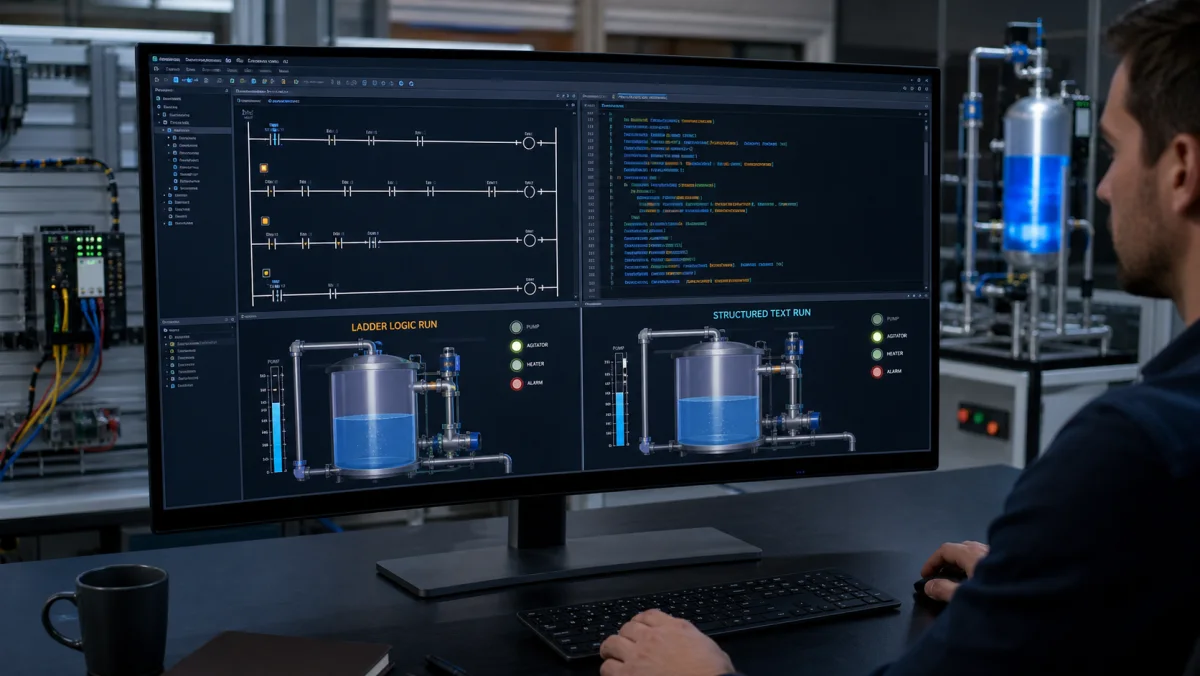

Controls engineer comparing ladder logic and Structured Text for the same tank process on one screen
04Compare languages against the same machine behavior so the choice is about clarity and control requirements, not syntax alone.

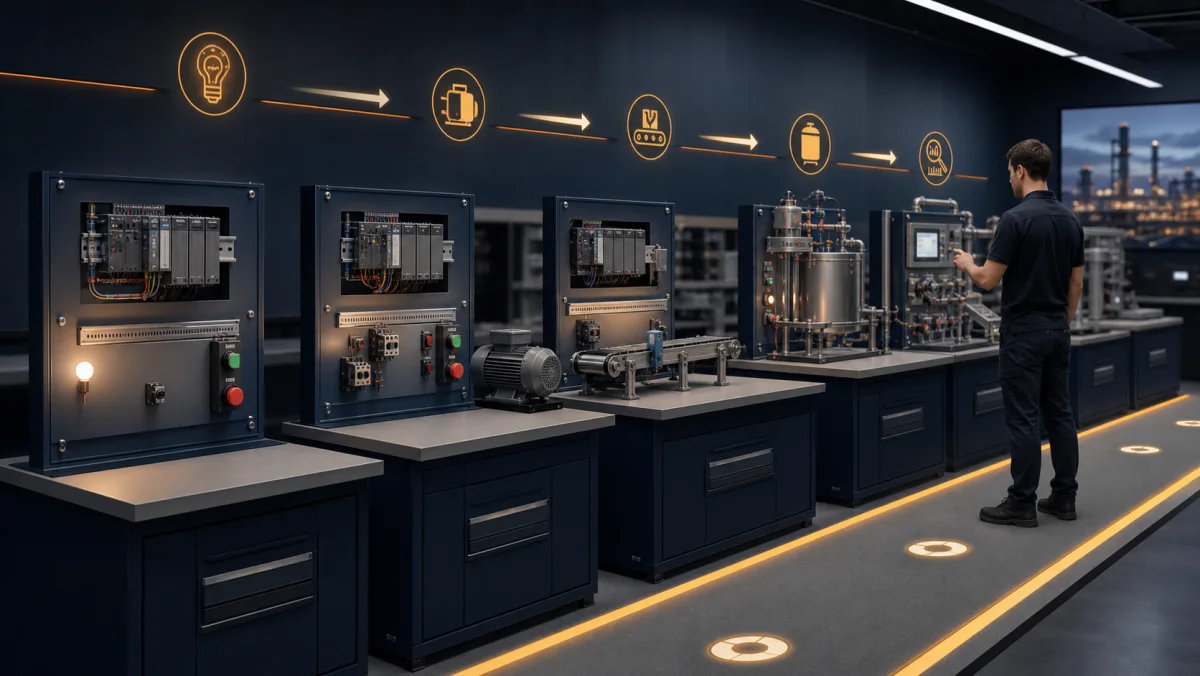

Progressive PLC learning path with motor, conveyor, process tank and commissioning training stations
05Progress from discrete cause and effect to timers, interlocks, sequencing, analog control and fault diagnosis in deliberate steps.

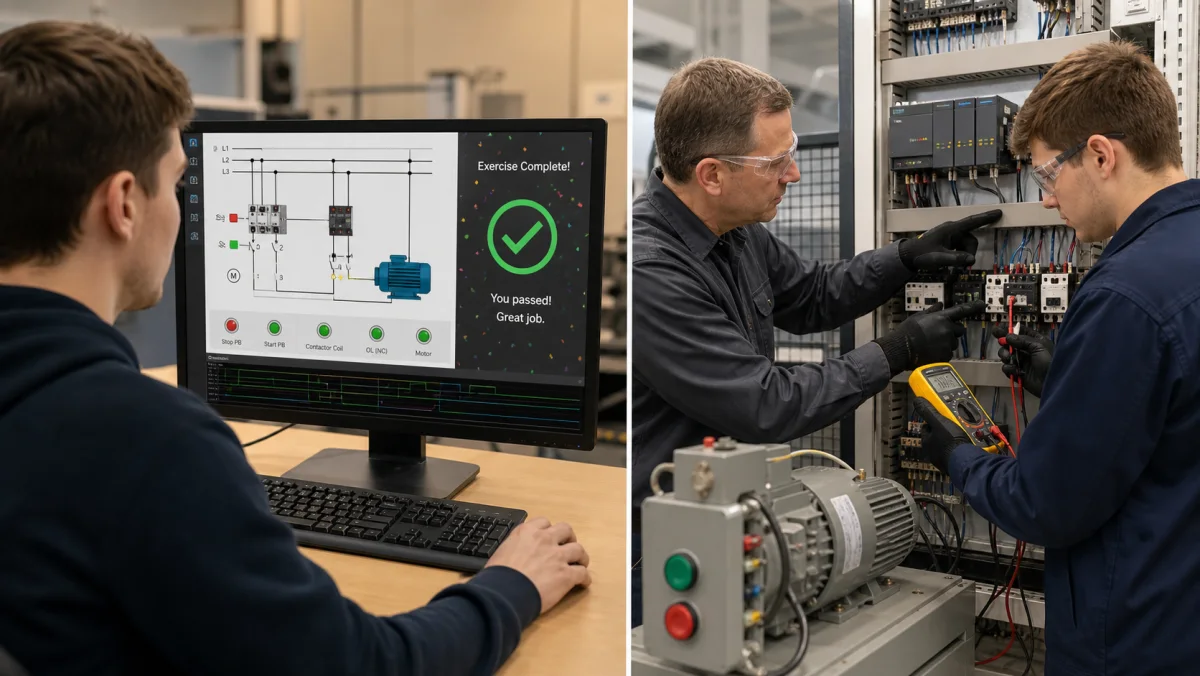

PLC learner moving from a browser simulator exercise to supervised electrical panel commissioning with a multimeter
06Simulation builds repeatable logic and diagnosis skill; supervised hardware practice adds wiring, measurement, safety and commissioning judgment.
Overview

Who learns PLC programming, and why.

PLC programming is the craft of writing controller logic that runs on a programmable logic controller — the industrial computer that drives motors, valves, conveyors, and sensors in a factory, water treatment plant, or process line. If you have ever pressed a crosswalk button and watched the light cycle, debated a garage-door safety beam, or stood next to a bottling line, you have interacted with a PLC.

People come to PLC programming from three main directions. Electrical and mechatronics students pick it up as part of their degree and need practice beyond what the textbook and a two-hour lab session provide. Software engineers move into controls and automation roles and need to internalise a scan-based, I/O-driven programming model that is nothing like the web stack. Plant technicians already familiar with wiring relays step up to the logic side when their employer replaces hardwired panels with PLCs.

All three groups want the same thing: enough reps on real-feeling scenarios to develop intuition. That is what this page, and the ten scenarios linked below, set out to provide.

Planning range, not a promise. A focused learner may need roughly 15–20 hands-on hours to establish the basic contact, coil, timer, counter and latch model. Interlocks, sequences, analog control and troubleshooting require substantially more deliberate practice, while safe hardware commissioning requires supervised physical work.

How a PLC is built — CPU, power supply, and digital and analog I/O modules connecting field sensors and actuatorsA modular PLC rack on a backplane: power supply, CPU processor, input module, output module and a communications module side by side.PLC RACKbackplane busPSUPowerCPUProcessorDIInputDOOutputNETComms
The hardware you are learning to program: a CPU running your logic, connected to inputs (buttons, sensors) and outputs (motors, valves) through I/O modules.
The path

How to learn PLC programming, in order.

Courses (RealPars, PLC Academy, Udemy) and YouTube playlists are good for theory. The piece they cannot give you is reps — writing logic, running it, watching it fail a test, and fixing it. This page is built around that loop. Here is the sequence that works.

  1. Step 1 — Learn the model, not the buttons

    Before any rung, understand the scan cycle and the I/O image table: a PLC reads inputs, runs your program top-to-bottom, then writes outputs, forever. Almost every beginner confusion (“why did my coil flicker?”) comes from not having this model. Five minutes on the diagrams below saves hours later.

  2. Step 2 — Learn ladder logic first

    Start with ladder logic — normally-open and normally-closed contacts, output coils, series (AND) and parallel (OR) branches. It is the most-used PLC language and it maps directly onto relay schematics, so it is the fastest to read. Write a one-rung program that turns a lamp on with a button. That is your first real PLC program.

  3. Step 3 — Add the four building blocks

    Layer on seal-in latching (hold a motor running off a momentary button), timers (TON / TOF / TP), counters (CTU / CTD), and edge detection (R_TRIG / F_TRIG). These four cover the large majority of real industrial logic. The Fundamentals section below explains each with a diagram.

  4. Step 4 — Build on auto-graded scenarios

    Move into the scenario library. Guided scenarios give you an I/O list, a written objective, and an objective test suite. You write the ladder, hit Run, and the grader tells you exactly which requirement failed. That feedback loop — not watching a video — is where the skill actually forms. A free account currently includes 27 source-tagged free-tier practice records; access can vary with account state and staged rollout.

  5. Step 5 — Branch into Structured Text and a vendor

    Once ladder feels natural, learn Structured Text for the maths-heavy and looping logic that ladder makes awkward, and pick a target vendor — Allen-Bradley (Studio 5000) or Siemens (TIA Portal). The IEC 61131-3 standard means the concepts transfer; only the addressing and tooling change. When you are ready for a credential, see the structured course and certification guide.

The five IEC 61131-3 PLC programming languages — Ladder Diagram, Structured Text, Function Block, Instruction List, and Sequential Function ChartThe five IEC 61131-3 PLC programming languages as chips: Ladder Diagram, Function Block Diagram, Structured Text, Instruction List and Sequential Function Chart.IEC 61131-3 — five languagesLDLadder DiagramFBDFunction BlockSTStructured TextILInstruction ListSFCSequential Func. Chart
The international standard. Learn ladder first, then Structured Text; the rest you can pick up by need.
Learn Structured Text (ST) — a Pascal-like IEC 61131-3 language with IF, CASE, and loops for the logic ladder makes awkwardA small Structured Text code block in an editor: an IF/THEN condition, a TON timer call and assignments, showing text-based PLC programming.main.st — Structured Text1IF Start AND NOT Stop THEN2 Run := TRUE;3END_IF;4DelayTmr(IN := Run, PT := T#5s);5Lamp := DelayTmr.Q;
Structured Text reads like code. Reach for it once a sequence gets too tangled to draw as rungs.
Fundamentals

The PLC programming fundamentals you need first.

Before scenario one, make sure these concepts click. Skip any you already know.

The scan cycle

A PLC runs a three-phase loop: read all inputs into an image table, execute the user program top-to-bottom, then write the output image back to physical outputs. Every rung you write is evaluated once per scan. Scan time is typically 1–50 ms on industrial hardware. Internalising the scan model explains why coil order matters, why a rung can fire twice in one cycle, and why edge-detection exists.

Learn the PLC scan cycle — read inputs, execute the ladder program top-to-bottom, then write outputs, repeating every scanThe repeating PLC scan cycle: read inputs, execute the ladder logic, update outputs, then housekeeping, looping continuously.1Read Inputs2Execute Logic3Update Outputs4HousekeepingSCANCYCLE
The loop that runs forever while the PLC is powered. Your whole program is evaluated once per scan.

Rungs, contacts, and coils

Ladder logic draws a "rung" across two power rails. Left to right, you place contacts (inputs) and end with a coil (output). A normally-open contact (XIC in AB, --] [-- in standard notation) passes power when its tag is true. A normally-closed contact (XIO, --]/[--) passes when its tag is false. The coil at the end energises when power flows all the way across.

Learn ladder logic symbols — normally-open and normally-closed contacts, output coils, and timer and counter blocksThe core ladder logic symbols side by side: XIC examine-if-closed, XIO examine-if-open, OTE output energize, OTL output latch and OTU output unlatch.XICIfXIOIfOTEEnergizeLOTLLatchUOTUUnlatch
The vocabulary of ladder logic. Learn to read these four symbols and you can read most rungs.
Read a ladder rung left to right — input contacts in series and parallel feeding an output coil across the power railsA basic ladder logic rung between two power rails: an examine-if-closed contact (XIC) in series driving an output coil (OTE).L1L2] [StartXIC I:0/0LampOTE O:0/0
A single rung is a Boolean expression: power must flow from the left rail to the right to energise the coil.

Latching (set / reset)

Most coils are non-retentive — they de-energise the instant the rung conditions fail. Latching solves the problem that most push-buttons are momentary. A SET / OTL coil turns the bit on and leaves it on; a RESET / OTU coil turns it off. The canonical three-wire motor seal-in rung uses a latch to keep a contactor energised after you release the START button.

Learn the seal-in (latching) rung — a START contact in parallel with the output's own contact holds a motor running after the button is releasedA seal-in latch rung: a Start contact in parallel with a Hold contact, in series with a normally-closed Stop contact, driving an output coil.StartHold (seal)StopMotor
The most-reused rung in PLC programming: the output seals itself in around a momentary START, with STOP and overload breaking the seal.

Timers

The TON (on-delay timer) starts counting when its input goes true and sets its .Q output when the accumulator reaches the preset. TOF (off-delay) does the opposite. TP (pulse) produces a fixed-duration output pulse on a rising edge. Every scenario on this site uses timers; the Traffic Light scenario is essentially a timer-driven state machine.

Learn the TON on-delay timer — the input enables timing, the accumulator climbs to the preset, then the done bit turns onA TON on-delay timer: the accumulated time bar ramps up toward the preset value, and the done (DN) bit turns on when the accumulator reaches preset.TONPRE 5000ACCACC ramps to PREPREDNdone bit
Timing diagram for a TON. The done (.Q) bit waits for the preset, then follows the input until it drops.

Counters

CTU (count up) increments on rising edges, fires its .Q when the accumulator reaches the preset, and resets on command. CTD counts down. CTUD does both. Counters show up in conveyor-sort logic, batch counts, and anywhere you need to track discrete events.

Learn the CTU count-up counter — each rising edge increments the accumulator, and the done bit fires when it reaches the presetA CTU count-up counter: each input pulse increments the accumulator toward the preset, and the done (DN) bit turns on when count reaches preset.count pulsesCTUPRE 5ACC 3ACCcount toward presetDNdone bit
A CTU counts discrete events — parts off a conveyor, cycles complete — and trips its done bit at the preset.

Edge detection

R_TRIG fires for exactly one scan on a false-to-true transition; F_TRIG fires on true-to-false. Edge detection is how you make a rung respond to a push-button event rather than to the button being continuously held. Most beginner bugs in ladder logic are solved by adding an edge-detect block where you meant one.

The IO table

Every physical input and output is mapped to an address. In Allen-Bradley: I:0/0, O:0/0. In Siemens: %I0.0, %Q0.0. In IEC 61131-3: you declare a tagged variable at an address (START_PB AT %I0.0 : BOOL;). Every scenario on this site ships with its IO list printed in the scenario brief; your first job is to map it mentally before you write a rung.

Learn PLC digital I/O addressing — field switches and sensors map to input addresses, output addresses drive lamps, motors, and valvesA digital input pushbutton wired to a PLC input card, and a PLC output card driving a lamp, with a sinking versus sourcing hint.I/O CARDINPUTOUTPUTPushbuttonI:0/0LampO:0/0sinking (NPN) vs sourcing (PNP)
Every rung references addresses like these. Mapping the I/O list to physical devices is step zero of every scenario.
Start without an account

Run your first PLC rung.

The guided first program uses one contact and one coil: flip a switch and watch the output light energise. It demonstrates the edit, run and observe loop without asking for an account or pretending to be a full vendor runtime.

After that first rung, create a free account to use the source-tagged free-tier scenarios in the full editor, save progress and run their automated checks. Catalog access depends on account state, tier, entitlement and staged rollout.

Run it now at /try with no signup or credit card.

Honest caveat

Beyond our simulator.

We will say this clearly: a simulator is not a replacement for real hardware experience. You will eventually want time on an actual controller — wiring inputs, dealing with sinking-vs-sourcing DC, watching a contactor physically pull in, debugging an analog sensor with a multimeter. The logic half of PLC programming transfers cleanly from simulator to hardware; the wiring and commissioning half does not.

What this simulator does is make logic iteration faster and safer. You can rerun sequences and fault states without risking a physical actuator, then take a more deliberate program into a supervised hardware lab. It complements rather than replaces electrical safety training and real commissioning practice.

Once the scenarios start to feel easy, add supervised practice on an appropriate training controller, protected low-voltage I/O and field devices, following the manufacturer documentation and your site safety procedures. A vendor or controls credential can document formal study, but employers will still judge troubleshooting, safety and practical reasoning.

Realistic timeline

How long does it take to learn PLC programming?

A rough planning range for contacts, coils, timers, counters and latching is 15–20 focused hands-on hours, but prior electrical knowledge, practice quality and the target role can move that number substantially. Interlocks, sequencing, analog control and troubleshooting require additional deliberate practice. Available practice records are auto-graded against scripted test cases, so every hour of practice includes feedback a video course cannot give.

When you need depth alongside the reps, the same platform includes written guides, wiring and fault-finding practice, and interactive sensor learning materials built on IEC 61131-3 languages. The payoff is measurable: O*NET (U.S. Department of Labor) reports 2025 median wages of $63,190 for electricians and $64,520 for industrial machinery mechanics, with roughly 81,000 and 45,700 projected US job openings a year respectively through 2034. Those occupations are broader than PLC programming, so treat the data as labor-market context rather than a salary or placement promise.

“Reading about seal-in rungs is like reading about swimming. Write the rung, watch the grader fail it on a timing edge, fix it — that ten-minute loop teaches more than any chapter, and it is the only reason this simulator exists.”
— Paul, builder of this simulator
Questions

Frequently asked.

There is no universal hour count. As a planning range, focused learners may need roughly 15–20 hands-on hours for contacts, coils, timers, counters and latching, then substantially more practice for interlocks, sequencing, analog control and troubleshooting. Job readiness also requires electrical safety, wiring, commissioning and supervised hardware experience.

Ready to start?

Build and run the guided Switch & Light program without an account, then save your progress and continue through the free learning path.

Related: PLC simulator · ladder logic simulator · all scenarios · PLC programming course · PLC training · certification guide.

Competency and practice field guide

Learn PLC programming: implementation, evidence and troubleshooting

Direct answer

Learn PLC programming becomes useful when it connects a staged roadmap from i/o and scan cycle to sequence and diagnostics with concept lessons connected to runnable programs and machine outcomes, then proves start-stop, interlock, timer, counter and sequence exercises under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for new learners seeking a practical sequence from electrical state and Boolean logic to machine programs. The intended result is specific: the learner can write and test a small program, explain each signal boundary and diagnose a changed case.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

a staged roadmap from I/O and scan cycle to sequence and diagnostics. For beginner PLC programming, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

concept lessons connected to runnable programs and machine outcomes. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

start-stop, interlock, timer, counter and sequence exercises. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

simultaneous inputs, limits, reset and power-return behavior. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

one hidden logic or process-feedback fault. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

a portfolio and target-platform practice plan. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert a staged roadmap from i/o and scan cycle to sequence and diagnostics into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document concept lessons connected to runnable programs and machine outcomes and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply start-stop, interlock, timer, counter and sequence exercises from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test simultaneous inputs, limits, reset and power-return behavior without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse one hidden logic or process-feedback fault and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete a portfolio and target-platform practice plan and repeat the affected regression cases.

    Evidence: A learner completes the surface by explaining the result, passing a changed case and identifying what still requires supervised target-equipment practice.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Learn PLC programming: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe learner, instructor and assessor may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The browser platform can retain programs, scenario results, attempts and observable machine state so practice is attached to evidence rather than seat time alone.

Where simulation stops

Self-paced browser learning cannot replace supervised field practice, target-platform training or safety qualification.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. a staged roadmap from I/O and scan cycle to sequence and diagnostics. For beginner PLC programming, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert a staged roadmap from i/o and scan cycle to sequence and diagnostics into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the learner, instructor and assessor may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about beginner PLC programming? A defensible short answer is: Start with the operating contract and evidence path: a staged roadmap from i/o and scan cycle to sequence and diagnostics, followed by concept lessons connected to runnable programs and machine outcomes. Add advanced features only after the baseline is predictable.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. concept lessons connected to runnable programs and machine outcomes. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document concept lessons connected to runnable programs and machine outcomes and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise beginner PLC programming effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. start-stop, interlock, timer, counter and sequence exercises. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply start-stop, interlock, timer, counter and sequence exercises from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. simultaneous inputs, limits, reset and power-return behavior. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test simultaneous inputs, limits, reset and power-return behavior without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because one hidden logic or process-feedback fault or simultaneous inputs, limits, reset and power-return behavior can expose assumptions that never appear during ideal startup and steady operation.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. one hidden logic or process-feedback fault. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse one hidden logic or process-feedback fault and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Can browser practice replace official software or hardware? A defensible short answer is: No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. a portfolio and target-platform practice plan. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete a portfolio and target-platform practice plan and repeat the affected regression cases. The acceptance record should show this result: a learner completes the surface by explaining the result, passing a changed case and identifying what still requires supervised target-equipment practice. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How should progress be documented? A defensible short answer is: Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

Answer surface / 07

Questions people ask about Learn PLC programming

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What should I learn first about beginner PLC programming?

Start with the operating contract and evidence path: a staged roadmap from i/o and scan cycle to sequence and diagnostics, followed by concept lessons connected to runnable programs and machine outcomes. Add advanced features only after the baseline is predictable.

How do I practise beginner PLC programming effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because one hidden logic or process-feedback fault or simultaneous inputs, limits, reset and power-return behavior can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

What should I do when the answer differs from a guide?

Check assumptions, version, units and initial state first. Reduce the case, compare one boundary at a time and prefer current primary documentation for target-specific behavior.

When is a beginner PLC programming exercise finished?

A learner completes the surface by explaining the result, passing a changed case and identifying what still requires supervised target-equipment practice.
