What Is a PLC? Plain-English Guide for Beginners

A PLC (Programmable Logic Controller) is an industrial computer that reads sensor inputs, runs a control program, and switches outputs on or off. Learn how it works in plain English.

PLC Simulation Software7 min read

If you have ever wondered why a factory floor machine keeps running perfectly without a person watching every step, the answer is almost always a PLC.

A PLC (Programmable Logic Controller) is a ruggedised industrial computer that continuously reads sensor inputs, executes a control program, and switches outputs — motors, valves, lights — on or off according to the logic you wrote. It repeats this cycle thousands of times per second, reliably, in dusty or wet environments where a regular laptop would fail in minutes.

PLC system architecture showing field sensors feeding input modules, the CPU running the program, and output modules driving motors, valves and lights

The Three-Part Loop Every PLC Runs

Every PLC operates on the same fundamental loop, called the scan cycle:

  1. Read inputs — the processor samples every sensor, switch, and signal wired to its input terminals and stores the values in an input image table in memory.
  2. Execute the program — the CPU works through your ladder logic (or structured text) rung by rung, evaluating conditions and setting output bits in an output image table.
  3. Write outputs — the processor pushes the output image table to the physical output terminals, energising or de-energising every wired device.

Flowchart of the PLC scan cycle: read inputs, execute the control program, write outputs, then repeat

Then it starts again. On a typical mid-range PLC the whole cycle takes 1–20 ms — so the machine sees a "new reality" up to 1,000 times per second.

Timing diagram of PLC cyclic scanning showing inputs sampled at the start of each scan and outputs updated at the end

The inside of a PLC mirrors this loop: a CPU at the centre, flanked by the memory that holds your program, the I/O modules that wire to the field, communication ports for HMIs and networks, and a power supply feeding it all.

Anatomy of a PLC showing the CPU connected to memory, I/O modules, communications ports and the power supply

Where PLCs Are Used

PLCs were invented in the late 1960s to replace relay panels in automotive assembly plants. Today they control:

  • Conveyor and sorting systems — directing boxes or parts based on weight or barcode reads.
  • Water and wastewater treatment — opening valves, running pumps, dosing chemicals in sequence.
  • HVAC and building automation — sequencing chillers, modulating dampers, managing boiler startup.
  • Packaging machinery — carton erectors, case packers, labelers, palletisers.
  • Process control — maintaining temperature, pressure, and level with PID loops.

Checklist of industries and applications where PLCs are used, from conveyors and water treatment to packaging and process control

Anywhere a process must happen in a defined sequence, reliably, is a candidate for a PLC.

What Makes a PLC Different From a Regular Computer?

Reference tableSwipe
FeaturePLCRegular PC
Scan cycle timingDeterministic (guaranteed ms)Non-deterministic (OS scheduling)
Environmental ratingIP65+ dust/moisture protection commonRequires clean, conditioned environment
Input/outputDedicated industrial I/O modulesUSB peripherals
ProgrammingLadder logic, structured text, FBD, SFC, IL (IEC 61131-3)Any general-purpose language
Startup timeMillisecondsMinutes
Reliability10–20 year MTBF typicalStandard consumer MTBF

Comparison table of a PLC versus a regular PC across scan timing, environment, I/O, startup time and reliability

A PLC sacrifices raw computing power for determinism and ruggedness — it guarantees it will respond to inputs within a fixed time window, every single time.

PLCs originally replaced banks of hardwired relays, and the advantages still hold today: logic lives in software you can change without rewiring, in a fraction of the panel space.

Comparison of a PLC versus a hardwired relay panel, listing the advantages of a programmable controller

The Five IEC 61131-3 Programming Languages

The IEC 61131-3 international standard defines five programming languages that most modern PLCs support:

  • Ladder Diagram (LD) — graphical relay-style rungs; still the most widely used language.
  • Structured Text (ST) — text-based, resembles Pascal; great for complex maths and loops.
  • Function Block Diagram (FBD) — graphical blocks wired together; popular for analogue and PID.
  • Instruction List (IL) — deprecated in IEC 61131-3:2013; low-level assembly-like.
  • Sequential Function Chart (SFC) — step-and-transition diagram for sequential processes.

Checklist of the five IEC 61131-3 PLC programming languages: ladder diagram, structured text, function block diagram, instruction list and sequential function chart

Most real-world programs mix at least two: ladder for interlocks and sequencing, structured text for calculations.

A Simple Ladder Logic Example

Here is the canonical "motor start/stop" rung in IEC 61131-3 structured text:

(* Motor start/stop with seal-in *)
IF StartButton AND NOT StopButton AND NOT Overload THEN
    MotorRun := TRUE;
END_IF;

IF StopButton OR Overload THEN
    MotorRun := FALSE;
END_IF;

And the equivalent logic expressed as ladder pseudocode:

|--[StartButton]--+--[MotorRun]--+--[/StopButton]--[/Overload]--( MotorRun )--|
                  |              |
                  +-[MotorRun]---+

PLC ladder logic example of a motor start/stop seal-in rung with a Start contact, normally-closed Stop contact and a MotorRun coil

The second branch — MotorRun in parallel with StartButton — is a seal-in rung. Once the motor starts, its own output coil keeps itself energised even after the start button is released. Read more about seal-in rungs in Seal-In Rungs in Ladder Logic: The Complete Guide.

Key PLC Vocabulary

Reference tableSwipe
TermMeaning
CoilAn output that is turned on or off
ContactAn input condition checked in a rung
RungOne horizontal row in a ladder diagram
Tag / variableA named memory location (e.g., MotorRun)
I/O moduleThe hardware card that interfaces with field devices
Function blockA reusable sub-routine (timer, counter, PID)
Scan timeThe duration of one complete read-execute-write cycle

Vendor Dialects vs the IEC Standard

While IEC 61131-3 is the standard, each major vendor extends and customises it:

  • Allen-Bradley (Rockwell Automation) uses Ladder Diagram with its own tag-based addressing and proprietary function blocks in RSLogix 5000 / Studio 5000.
  • Siemens uses its own naming conventions in TIA Portal (S7-1200, S7-1500), though Structured Text is compliant with IEC semantics.
  • Codesys and OpenPLC offer the most faithful IEC 61131-3 implementations and are popular in education.

If you are learning from scratch, start with generic IEC 61131-3 concepts — the fundamentals transfer to every vendor. Then read PLC Dialects Compared: IEC 61131-3 vs Allen-Bradley vs Siemens to understand the differences before specialising.

How to Learn PLC Programming Without Hardware

Physical PLCs cost hundreds to thousands of dollars and require wiring, panel space, and software licences. Browser-based simulators remove every one of those barriers. You write real ladder logic, run it against a simulated machine model, and get instant pass/fail feedback — exactly the feedback loop you need to build fluency fast.

The Traffic Light scenario is the traditional first project for beginners: three outputs (red, amber, green), timed transitions, and no sensors to confuse the picture. From there you can progress through motor control lessons and work up to PID loops.


Practice this yourself in the simulator — 3 scenarios free. No install. No credit card. Write real ladder logic against a live machine model in your browser.

Try the simulator free →

ShareX / TwitterLinkedIn

From reading to running logic

Practice this yourself in the simulator

Start with guided PLC practice in your browser. No install and no credit card required.

Start practising free

Continue learning

Related field notes

All articles
fundamentals
scan cycle

The PLC Scan Cycle Explained (With Diagrams)

The PLC scan cycle is the continuous read-execute-write loop at the heart of every controller. Learn what happens in each phase and why scan time matters for your control programs.

8 min read
ladder logic
fundamentals

Seal-In Rungs in Ladder Logic: The Complete Guide

A seal-in rung keeps a coil latched after the momentary start signal drops. Learn how to build reliable seal-in circuits with stop, overload, and E-stop protection.

8 min read
ladder logic
structured text

Ladder Logic vs Structured Text: Which One to Learn First

Ladder logic is graphical and widely supported; structured text is textual and powerful for maths. Compare syntax, use cases, and job market demand to choose your first PLC language.

9 min read

Technical reference and worked-example guide

What is a PLC technical guide: implementation, evidence and troubleshooting

Direct answer

What is a PLC technical guide becomes useful when it connects controller purpose, power and processor, input and output modules, process image, cyclic task, program instructions, memory, communications, diagnostics and feedback with field condition through sensor and input channel to sampled data, program evaluation, output channel, interface, actuator and returned status, then proves a simple start-stop requirement produces predictable input, program, output and physical or modeled response across repeated scans under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for beginners, technicians and engineering students who want a practical definition connected to observable control behavior. The intended result is specific: the reader can explain how a physical input becomes program state and an output request, and why independent feedback is required to prove the machine result.

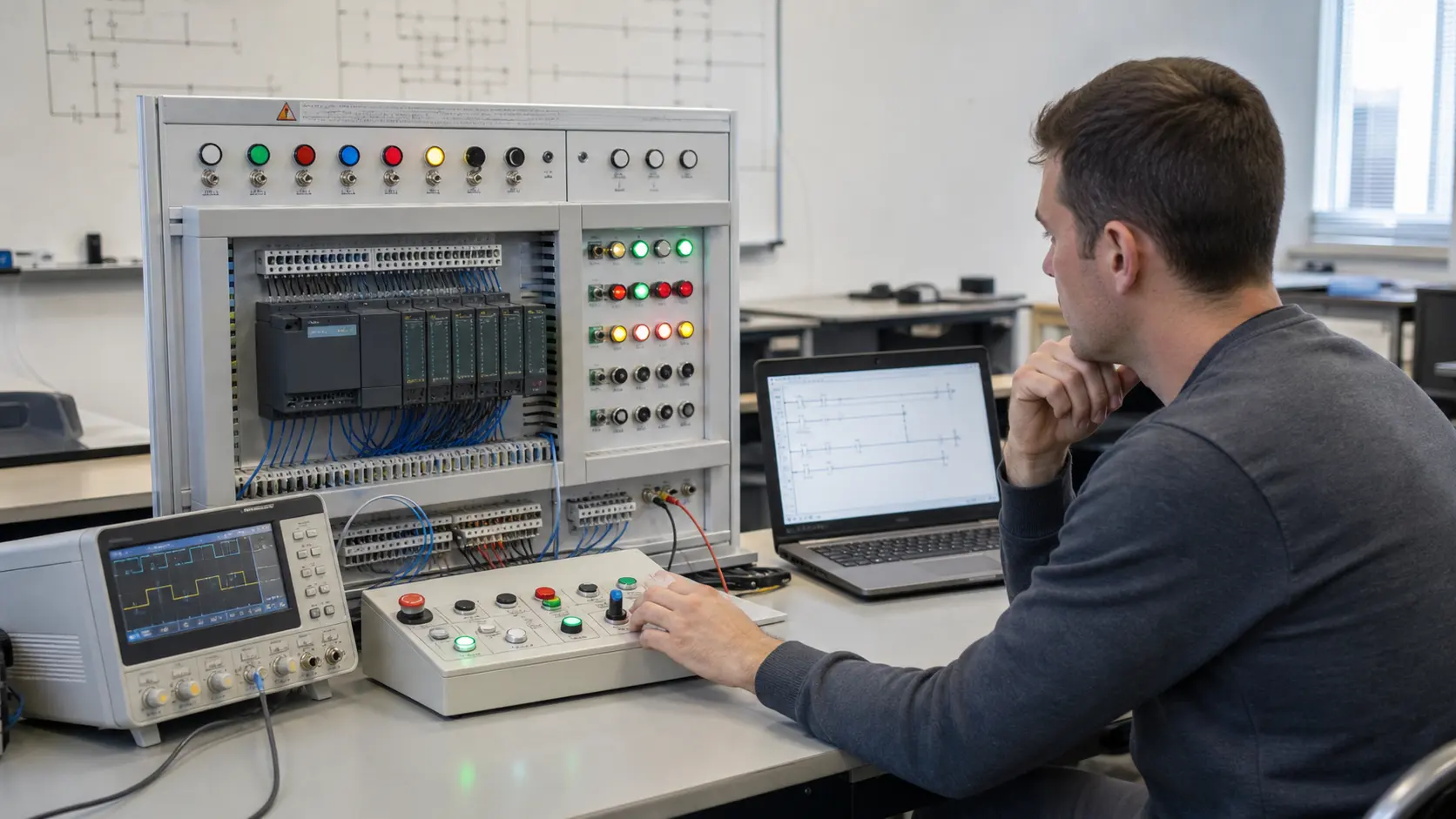

a PLC logic and scan-cycle training station with observable inputs, outputs, timing traces and program state used to prove execution behavior while studying PLC hardware, cyclic execution, I/O, program state, communications and machine feedback
The training scene connects PLC hardware, cyclic execution, I/O, program state, communications and machine feedback to a declared initial state, inspectable boundaries, safe limits and repeatable acceptance evidence.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

controller purpose, power and processor, input and output modules, process image, cyclic task, program instructions, memory, communications, diagnostics and feedback. For PLC hardware, cyclic execution, I/O, program state, communications and machine feedback, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

field condition through sensor and input channel to sampled data, program evaluation, output channel, interface, actuator and returned status. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

a simple start-stop requirement produces predictable input, program, output and physical or modeled response across repeated scans. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

simultaneous commands, input bounce, timer boundary, output overwrite, communication loss, retained state, controller restart and feedback failure. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a field, wiring, input, mapping, scan, logic, output, interface, actuator or feedback mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

the example recreated in the official engineering environment and proven on intended supervised hardware. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert controller purpose, power and processor, input and output modules, process image, cyclic task, program instructions, memory, communications, diagnostics and feedback into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document field condition through sensor and input channel to sampled data, program evaluation, output channel, interface, actuator and returned status and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply a simple start-stop requirement produces predictable input, program, output and physical or modeled response across repeated scans from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test simultaneous commands, input bounce, timer boundary, output overwrite, communication loss, retained state, controller restart and feedback failure without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a field, wiring, input, mapping, scan, logic, output, interface, actuator or feedback mismatch and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete the example recreated in the official engineering environment and proven on intended supervised hardware and repeat the affected regression cases.

    Evidence: Reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for What is a PLC technical guide: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe technician, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The page connects definitions and worked examples to runnable tools, explicit assumptions and repeatable checks so a formula or pattern can be challenged.

Where simulation stops

The overview is vendor-neutral and cannot replace exact controller manuals, electrical design, safety engineering, official software or target-hardware testing.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. controller purpose, power and processor, input and output modules, process image, cyclic task, program instructions, memory, communications, diagnostics and feedback. For PLC hardware, cyclic execution, I/O, program state, communications and machine feedback, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert controller purpose, power and processor, input and output modules, process image, cyclic task, program instructions, memory, communications, diagnostics and feedback into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the technician, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What is a PLC? A defensible short answer is: A programmable logic controller is an industrial computer designed to read inputs, execute deterministic control logic, update outputs and provide diagnostics and communications for machines and processes.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. field condition through sensor and input channel to sampled data, program evaluation, output channel, interface, actuator and returned status. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document field condition through sensor and input channel to sampled data, program evaluation, output channel, interface, actuator and returned status and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How is a PLC different from a normal computer? A defensible short answer is: PLCs emphasize industrial I/O, cyclic or scheduled control, environmental robustness, maintainability and predictable operation, although exact architectures vary.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. a simple start-stop requirement produces predictable input, program, output and physical or modeled response across repeated scans. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply a simple start-stop requirement produces predictable input, program, output and physical or modeled response across repeated scans from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about PLC hardware, cyclic execution, I/O, program state, communications and machine feedback? A defensible short answer is: Start with the operating contract and evidence path: controller purpose, power and processor, input and output modules, process image, cyclic task, program instructions, memory, communications, diagnostics and feedback, followed by field condition through sensor and input channel to sampled data, program evaluation, output channel, interface, actuator and returned status. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. simultaneous commands, input bounce, timer boundary, output overwrite, communication loss, retained state, controller restart and feedback failure. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test simultaneous commands, input bounce, timer boundary, output overwrite, communication loss, retained state, controller restart and feedback failure without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise PLC hardware, cyclic execution, I/O, program state, communications and machine feedback effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a field, wiring, input, mapping, scan, logic, output, interface, actuator or feedback mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a field, wiring, input, mapping, scan, logic, output, interface, actuator or feedback mismatch and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. the example recreated in the official engineering environment and proven on intended supervised hardware. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete the example recreated in the official engineering environment and proven on intended supervised hardware and repeat the affected regression cases. The acceptance record should show this result: reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a field, wiring, input, mapping, scan, logic, output, interface, actuator or feedback mismatch or simultaneous commands, input bounce, timer boundary, output overwrite, communication loss, retained state, controller restart and feedback failure can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about What is a PLC technical guide

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What is a PLC?

A programmable logic controller is an industrial computer designed to read inputs, execute deterministic control logic, update outputs and provide diagnostics and communications for machines and processes.

How is a PLC different from a normal computer?

PLCs emphasize industrial I/O, cyclic or scheduled control, environmental robustness, maintainability and predictable operation, although exact architectures vary.

What should I learn first about PLC hardware, cyclic execution, I/O, program state, communications and machine feedback?

Start with the operating contract and evidence path: controller purpose, power and processor, input and output modules, process image, cyclic task, program instructions, memory, communications, diagnostics and feedback, followed by field condition through sensor and input channel to sampled data, program evaluation, output channel, interface, actuator and returned status. Add advanced features only after the baseline is predictable.

How do I practise PLC hardware, cyclic execution, I/O, program state, communications and machine feedback effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a field, wiring, input, mapping, scan, logic, output, interface, actuator or feedback mismatch or simultaneous commands, input bounce, timer boundary, output overwrite, communication loss, retained state, controller restart and feedback failure can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.
