PLC Simulation Software Compared — Choose the Right Fidelity
Compare browser learning tools, controller emulators, and 3D machine simulators by the evidence they can produce. Then run a real ladder or Structured Text exercise in your browser before creating an account.
Watch a real PLC program run in the browser.
This is recorded from the working simulator—not a conceptual mockup. See the editor, live I/O and industrial scenario respond together before you create an account.
What the footage proves

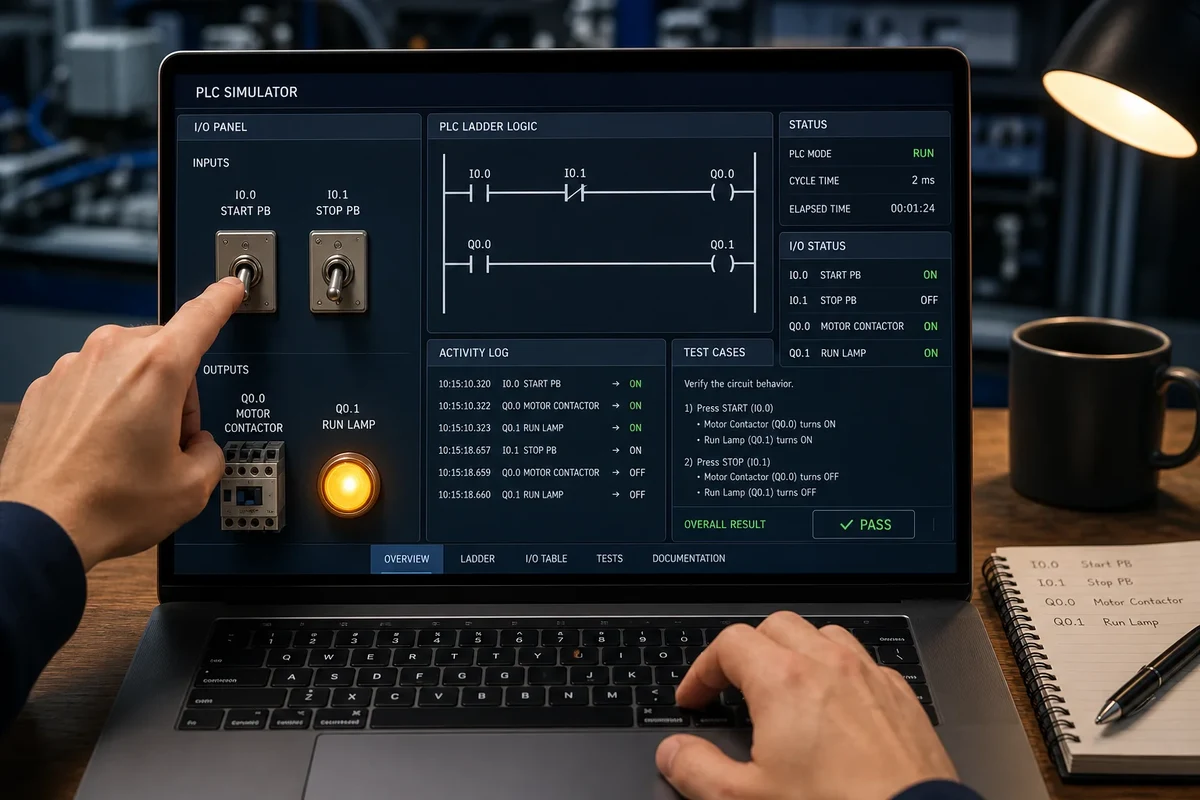

Write ladder or structured text, run the scan, toggle live I/O and see the machine state respond.
Practice motors, tanks, conveyors, alarms and interlocks instead of watching a decorative animation.
Use checks, explanations and structured learning paths to move from a first rung to job-relevant control work.
No install. No card. Start with a working circuit.
Live PLC simulation software running in your browser tab right now — no plugin, no install.

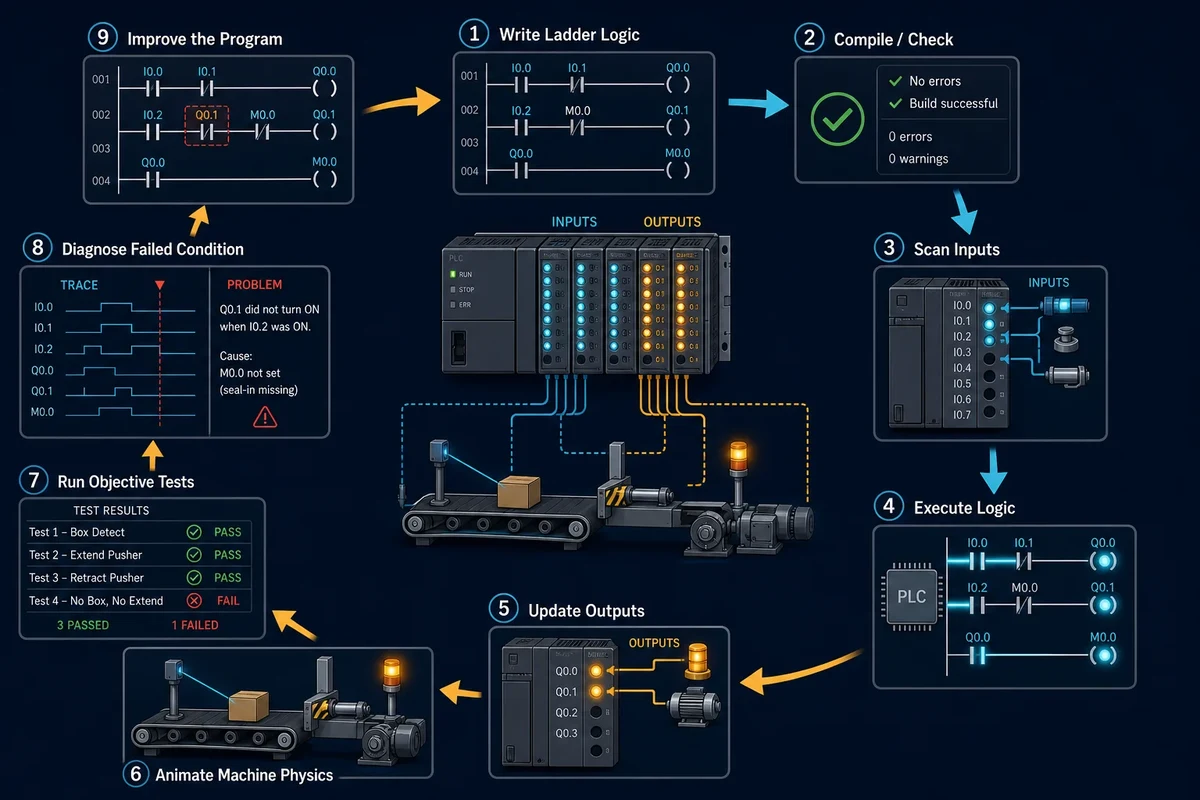

How the software teaches
A visible loop from PLC code to machine result
Useful simulation software does more than animate a finished example. It lets the learner create the logic, control the inputs, inspect live state, observe the machine, diagnose failures and prove the final behavior against repeatable tests.
What is PLC Simulation Software?
PLC simulation software is an umbrella category for tools that execute control logic, reproduce part of a controller runtime, model the connected machine, or combine those layers. The most useful first question is therefore not “Which product is best?” but “What must this test prove?” A learner may need visible scan-cycle practice and feedback. A controls engineer may need the exact vendor project to run against an emulated supported CPU. A virtual-commissioning team may need both a controller and a process model connected through a defined I/O contract.
A logic-learning simulator can parse a supported ladder or Structured Text program, execute a documented scan sequence, update virtual I/O, advance a deterministic machine model, and grade the observed result. A controller emulator goes closer to a named CPU family and vendor project workflow. A machine simulator supplies process physics, scenes, devices, or 3D behavior and may connect to either real or virtual controllers. None of those labels alone proves timing fidelity, protocol support, safety behavior, native project portability, or suitability for production acceptance.
This platform — PLC Simulation Software — is browser-based, free to start, and built for people who need to learn, teach, or prototype supported PLC logic before a hardware lab. Its source catalog defines 140 practice records marked published across multiple industrial topics, with visible availability depending on account state, tier, entitlement, and staged rollout. The core tutor supports 9 learning dialects and grades supported exercises against scripted tests. A free account includes 27 source-tagged free-tier scenario records and the first 6 core lessons in each dialect. The guided no-account first program lets visitors try the edit-run-observe loop before registering.
Control logic
Instructions, data, tasks and scan behavior
I/O contract
Named inputs, outputs, scale, quality and timing

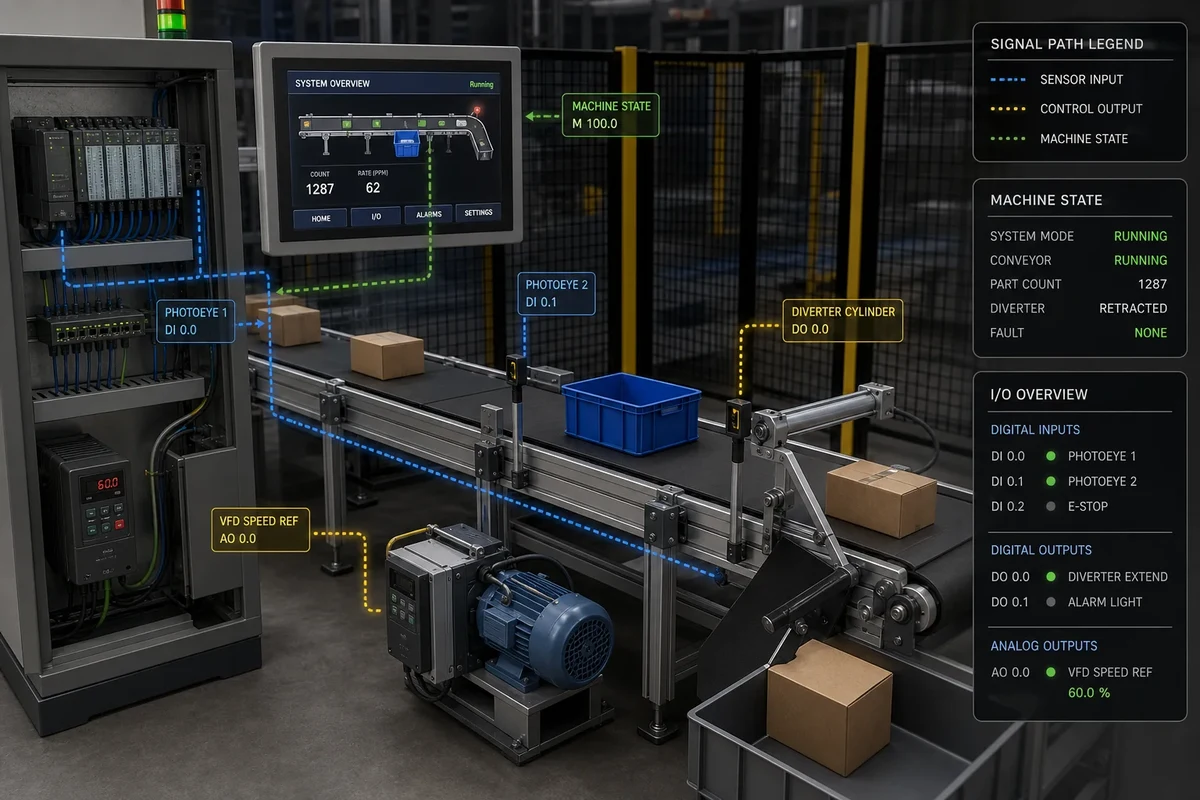

Machine model
Sensors, actuators, sequences and process response
Acceptance evidence
Expected cases, observed results and limitations
| Layer | What it executes or models | Useful proof | Not proof of |
|---|---|---|---|
| Logic learning simulator | A documented instruction subset, scan model, virtual I/O, exercises, and checks | Control intent, edge cases, learner practice, and objective task completion | Exact vendor firmware, task timing, native files, real modules, networks, or safety |
| Controller emulator | Supported virtual controller families and their vendor engineering workflow | Project execution, controller-specific instructions, communication, snapshots, or APIs where documented | Every physical module, installation fault, network load, process dynamic, or real safety function |
| Machine or process simulator | Sensors, actuators, material flow, process dynamics, scenes, and sometimes 3D physics | Sequence response, I/O contract, operator behavior, throughput assumptions, and failure scenarios | Controller runtime fidelity unless a qualified controller/emulator is connected and verified |
| Representative hardware test | Actual CPU, I/O, network, drives, devices, wiring, power, and controlled process interfaces | Installed-system behavior within the approved acceptance plan | Unperformed hazards, conditions, production loads, lifecycle changes, or field variations |
Who Uses PLC Simulation Software?
Four groups drive most of the demand for PLC simulation software, and each one has a distinct reason to choose a browser-based product over a vendor-installed simulator.
Controls engineers
Prototype logic changes before a commissioning window. A browser-based model opens with less setup than a full vendor environment, so you can explore sequencing and interlock patterns early. The resulting program still needs validation in the target vendor tool, controller, IO, and safety system.
Training programs and lecturers
Teach ladder logic without requiring one physical PLC workstation per learner. Browser access gives each student an individual practice environment, while supported auto-graded exercises and progress tracking reduce routine marking work. Hardware labs remain necessary for wiring and commissioning skills.
PLC training overview →Controls-engineering students
Practice scenarios homework-style, outside lab hours. The structured scenario library — from basic motor start/stop through PID and multi-step batch sequencers — maps closely to the control-systems curriculum at technical colleges and universities. Students on locked-down institutional laptops can use it without admin rights.
Browse scenarios →OEM integrators
Prototype machine-control sequences before hardware arrives on site. A simulated conveyor or process model can expose logic questions early, after which the candidate program must be transferred, reviewed, and tested in the vendor environment and on the real equipment.
PLC Simulation Software Comparison: Five Different Jobs
These products are not interchangeable competitors in every project. The table uses current public documentation reviewed on 30 August 2026 and separates the job each option performs. We have not assigned a universal winner or copied reseller prices that vary by edition, region, agreement, and date.
| Option | Category | Environment | Strongest fit | Machine model | Important boundary | Evidence |
|---|---|---|---|---|---|---|
| Our PLC Simulation Software | Browser learning and practice simulator | Current standards-capable browser; guided first program needs no account | 9 learning dialects, visible machine scenarios, repeatable checks, and low-friction individual or cohort practice | 140 source-catalogued practice records; visible access varies by tier and rollout | Not a vendor firmware emulator, native project-file workflow, production controller, or hardware/safety acceptance substitute. | Versioned public product facts |
| CODESYS simulation mode | IEC application simulation | Inside CODESYS Development System | Starting and debugging an active application on a simulated target without a physical controller | Not supplied by simulation mode itself | The official documentation lists differences from physical-controller operation; target and integration tests remain separate. | Official CODESYS simulation command |
| Siemens S7-PLCSIM Advanced | Siemens controller emulation | Local Siemens engineering and simulation environment | Supported S7-1500 and ET 200 controller projects, communication, multiple instances, and co-simulation | Connect an external model or HMI where required | Exact CPU, TIA Portal, PLCSIM version, license, communication, safety, and feature support must match the project. | Official Siemens product page |
| FactoryTalk Logix Echo | Rockwell controller emulation | FactoryTalk/Studio 5000 design environment | Supported ControlLogix, GuardLogix, and CompactLogix applications, snapshots, motion, and external digital-twin integration | Connect an HMI or external simulation through documented interfaces | Controller families and compatible Logix Designer versions are explicit; unsupported hardware and real field behavior still require testing. | Official Rockwell product page |
| Factory I/O | 3D factory and process simulation | FACTORY I/O application plus selected controller/driver | Building or using visible 3D scenes and connecting them to PLCs, SoftPLCs, Modbus, or supported simulators | Primary strength: configurable 3D factory scenes and parts | Controller-code authoring, runtime fidelity, drivers, licensing, and scene scope depend on the selected companion tools and edition. | Official FACTORY I/O documentation |
Disclosure: the highlighted row is our product and its claims come from the versioned public product-facts artifact and repository-backed tests. Other rows summarize the linked manufacturers' documentation; they are not endorsements and we did not complete a fresh licensed installation of every external product for this review. Confirm current versions, editions, system requirements, licensing, and supported targets directly with the vendor before purchase.
Choose PLC Simulation Software from the Acceptance Evidence
Write the acceptance result before creating a shortlist. “Run ladder logic” is too vague: it could mean learning contacts and coils, executing a released vendor project, proving HMI tags, tuning a process model, validating motion code, or rehearsing an operator response. Those tasks need different fidelity and often more than one connected tool.
| Required outcome | Start with | Evidence to demand before choosing |
|---|---|---|
| Learn PLC scan logic and receive objective feedback | Browser learning simulator | A runnable first task, documented instructions, visible I/O, repeatable checks, and an honest vendor-runtime boundary |
| Test a released Siemens application without the target CPU | Matching S7-PLCSIM product | Exact CPU family, TIA/PLCSIM compatibility, communication, safety, HMI, and co-simulation support |
| Test a supported modern Logix project without the controller | FactoryTalk Logix Echo | Exact controller family, Logix Designer version, motion/safety scope, snapshots, API, and connected-model plan |
| Debug a CODESYS application before a physical target is ready | CODESYS simulation mode | Active application support plus every documented difference from operation on the target device |
| Exercise control logic against a configurable 3D factory | Machine/process simulator such as Factory I/O | Required PLC driver, tag/address contract, physics fidelity, timing, scenes, and controller companion tool |
| Approve production commissioning or a safety function | Vendor tools plus representative hardware and witnessed acceptance | Installed I/O, networks, drives, process, fault response, cybersecurity, and safety validation |
For an individual learner
Prioritize a runnable first task, visible I/O, feedback that explains a failed condition, a progressive exercise path, and a clear free-tier boundary. Do not pay for controller fidelity you do not yet need.
For a school or training team
Test a representative learner device, onboarding time, accessibility, account provisioning, grading evidence, instructor views, privacy, support, procurement, export, and recovery before committing a cohort.
For engineering and commissioning
Match exact CPU, firmware, IDE, libraries, communications, I/O, motion, safety, process model, timing, and fault response. Preserve a residual hardware test plan instead of turning a successful simulation into an unqualified release claim.
A Seven-Part PLC Simulator Test Protocol
A useful comparison records versions and observed results. It does not score a screenshot, a product family name, or a marketing checklist as proof. Run the same small representative task in each shortlisted environment, retain the evidence, and mark every feature as observed, documented only, unavailable, or not tested.
| Test gate | Procedure | Evidence to retain |
|---|---|---|
| Identity and version | Record product, edition, release, controller families, browser/OS, licenses, and companion tools | Saved version manifest and official source URLs |
| First useful result | Start from a clean device or browser profile and time a complete working logic task | Screen recording plus start/end condition; exclude account setup unless required |
| Execution semantics | Test scan order, duplicate writers, timers, counters, retentive state, edge detection, data types, and invalid input | Expected-versus-observed matrix tied to the exact version |
| I/O and machine behavior | Apply known sensor states and controlled failures, then trace program, output, model, and feedback | State trace proving direction, timing, stale-data response, and recovery |
| Project portability | Move the smallest representative program through the documented import/export or manual-transfer path | Compile result and explicit list of manual conversions or unsupported artifacts |
| Teaching evidence | Complete one beginner and one troubleshooting task with a new learner | Checks, feedback, attempt history, instructor visibility, and accessibility notes |
| Production boundary | List every property the simulator cannot prove and schedule target testing | Signed residual-test plan; no simulation-only commissioning claim |
Our disclosed evidence is the working no-account path, recorded product walkthrough, versioned product facts, source catalog, and automated application tests. External product cells above are documentation-reviewed, not presented as fresh hands-on benchmarks. That distinction matters when a purchase or commissioning decision depends on a feature.
140 Source-Catalogued Practice Records
The catalog combines machine models, written objectives, IO lists, and scripted tests where applicable. Records are ordered by difficulty so learners can build on earlier control patterns. The number visible to a visitor can be lower than the source count because access depends on account state, tier, entitlement, and staged rollout. Browse the current catalog at /scenarios.
Traffic Light
Four-way signal with timer chain and all-red safety interlock phase.
Motor Start / Stop
Three-wire control with seal-in, E-stop, and thermal overload interlock.
Conveyor Sort
Photo-eye sort station with part counters and reject actuator output.
Tank Fill Station
Level sensors with hysteresis control and latched high-level alarm.
PID Temperature
Closed-loop temperature control with PID tuning and setpoint ramp.
Batch Mixer
Multi-step sequencer with ingredient timing and agitator interlock.
Elevator Controller
Multi-floor call queue, door timing, and direction logic sequencer.
Palletizer
Layer-building logic with row count, column indexing, and stack reset.
Showing 8 examples from 140 source-catalogued practice records. Browse the current catalog →
9 Learning Dialects in One Core Tutor
Vendor controller simulators are normally aligned to their own platform because their value is target fidelity. A vendor-neutral learning environment solves a different problem: showing how transferable control intent appears in several learning dialects without claiming binary or project compatibility. The supported learning set is IEC 61131-3, Allen-Bradley, Siemens SCL, Mitsubishi, Omron, KEYENCE KV, Schneider Unity, Delta, Instruction List.
IEC 61131-3 Structured Text
IEC 61131-3 concepts provide a transferable vocabulary across many environments. Any copied text still needs review for the target IDE, edition, libraries, data types, task model, supported instructions, and controller configuration.
Allen-Bradley RSLogix / Studio 5000-style
A learning dialect for transferable XIC, XIO, OTE, latch, timer, counter, sequencing, and address-reading patterns. It is not Studio 5000 Logix Designer, FactoryTalk Logix Echo, a native ACD file, or proof of a specific controller firmware.
Siemens TIA Portal / STEP 7-style
A Siemens-style learning surface for networks, addresses, timers, counters, sequencing, and data-oriented control concepts. It is not TIA Portal, S7-PLCSIM, an S7 project, or a supported substitute for compiling against the exact CPU.
The three cards above illustrate common IEC, Allen-Bradley, and Siemens-style patterns from the broader 9-dialect learning set. For lecturers, this means a control concept such as Tank Fill or Motor Start/Stop can demonstrate how the same intent is expressed across vendor ecosystems where that scenario and dialect combination is supported. Vendor-style syntax teaches transferable patterns; it does not emulate every instruction or firmware behaviour of a production runtime.
Deploying This PLC Simulation Software for a Class or Team
Individual learners and training programs have different needs. Here is how both are covered.
Individual learners
- Free — 27 source-tagged scenario records and the first 6 core lessons per dialect after signup, with no credit card or trial clock. The guided /try program needs no account.
- Basic — $99/year — Free- and Basic-tier catalog records, the 12-lesson core curriculum, quizzes, progress tracking, and attempt history.
- Pro — $249/year — expanded catalog and dialect access, plus 6 interview tracks, downloadable certificates, solution walk-throughs, and the PLC handbook PDF.
Teams, classrooms, and corporate L&D
Team and classroom options are available for managed cohorts. Contact us for the current seat model, pricing, procurement, and invoicing terms. Available organisational capabilities include:
- ✓ Admin console with usage dashboard
- ✓ Cohort progress reports — see which students are stuck and where
- ✓ Organisation-managed learning paths and scenarios
- ✓ Procurement and invoicing support by request
Confirm current availability and commercial terms with hello@plcsimulationsoftware.com for purchase orders or invoicing.
| Path | Current public price | Best starting use | Boundary to verify |
|---|---|---|---|
| No-account guided try | $0; no card | Prove the edit, run, I/O, machine, and feedback loop before registration | One guided first program; catalog play uses an account |
| Free account | $0; no trial expiry | Individual practice with 27 source-tagged free-tier records and initial lessons | Availability still depends on account state, entitlement, and rollout |
| Basic | $12/month or $99/year | Expanded catalog, core curriculum, quizzes, progress, and attempt history | Confirm the exact catalog and learning features visible before purchase |
| Pro | $29/month or $249/year | Expanded dialect access, interview tracks, certificates, solutions, and handbook access | A completion certificate records this platform's assessment; it is not a vendor or regulatory license |
| Managed team seats | $199/seat/year; 5-seat minimum | Cohorts needing managed access, progress visibility, procurement, and invoicing | Confirm current academic/bulk quote, reporting, privacy, support, and rollout terms |
Product and price facts are read from the public versioned artifact used by this page. Taxes, currency conversion, bulk or academic quotations, and future changes may alter the checkout amount; the pricing page and checkout are authoritative at purchase time.
What This PLC Simulation Software Cannot Do
A simulated pass is evidence about the program, model, version, and test that ran. It is not a blanket claim about the installed machine. These are our product limits, followed by the transfer checks that keep useful simulation evidence from becoming an unsafe commissioning shortcut.
Learning and prototyping scope
This is a learning and prototyping simulator, not a production PLC or a substitute for testing on the target controller and hardware.
Vendor-runtime coverage
Vendor dialect support teaches transferable syntax and logic patterns; it does not emulate every instruction or firmware behavior of each vendor runtime.
Catalog availability
Scenario and lesson access varies by account state, plan, entitlement and staged feature rollout.
Native project-file export
Native vendor project-file export is not guaranteed.
What a passing simulation can and cannot prove
| Candidate evidence | How to strengthen it in simulation | Still validate in the target environment |
|---|---|---|
| Boolean sequence and interlock intent | Run every normal, abnormal, and restart case against deterministic inputs | Electrical interface behavior, actual scan/time distribution, and machine hazard response |
| Timer/counter behavior inside the documented model | Boundary tests at zero, just below, equal to, and above each threshold | Vendor time base, task scheduling, retentive memory, restart, and firmware-specific behavior |
| Typed I/O contract and expected state | Use named inputs/outputs, non-symmetric values, invalid/stale flags, and command ownership | Real module ranges, wiring, channel diagnostics, fieldbus mapping, byte order, and device status |
| Fault-handling logic | Inject missing feedback, stuck sensors, timeouts, restart, and conflicting commands | Real failure physics, protection devices, safety circuit, energy isolation, and maintenance procedure |
| Learner completion evidence | Retain objective checks, attempt timestamp, portfolio artifact, and feedback | Employer competency decision, supervised practical assessment, and regulatory qualification |
Never use this browser simulator, a vendor emulator, a 3D model, or a software timeout as the sole emergency-stop, guard, safe-motion, electrical-isolation, or process-safety measure. Follow the approved risk assessment, hazardous-energy procedure, manufacturer documentation, and witnessed acceptance plan for the real equipment.
Official Sources for This PLC Software Comparison
Reviewed 30 August 2026. Our product claims are linked to the public facts artifact, product documentation, pricing, repository provenance, and a working no-account path. External capabilities are summarized from manufacturers' current product pages and manuals. We did not infer universal fidelity from the words simulator, emulator, digital twin, IEC, safety, or 3D.
- 01PLC Simulation Software versioned product facts
- 02PLC Simulation Software product documentation
- 03PLC Simulation Software current pricing and access
- 04CODESYS: Simulation command
- 05CODESYS: Testing in simulation mode
- 06Siemens: S7-PLCSIM Advanced product overview
- 07Siemens: S7-PLCSIM Advanced function manual
- 08Rockwell Automation: FactoryTalk Logix Echo
- 09Rockwell Automation: FactoryTalk Logix Echo Getting Results Guide
- 10FACTORY I/O: Product documentation
- 11FACTORY I/O: I/O drivers documentation
- 12PLCopen: IEC 61131-3 software-construction guidance
Product editions, licensing, supported controllers, operating systems, browser policies, and prices can change. Reopen the cited pages for the exact version and region before procurement. Brand names belong to their respective owners; their inclusion is for factual selection and interoperability context, not affiliation.
