Garage Door PLC Ladder Logic Program (Run It Free Online)

A garage door controller is one of the best intermediate PLC projects: it combines SET/RESET latches for direction memory, a hard interlock to prevent both contactors firing together, a safety auto-reverse on obstacle detection, and a flashing warning lamp — all in a compact program. Below is the full ladder diagram, the I/O table and the timing sequence for the obstacle-reversal case, with a live scenario you can write and run in your browser without installing anything.

sequencesafetyreversing

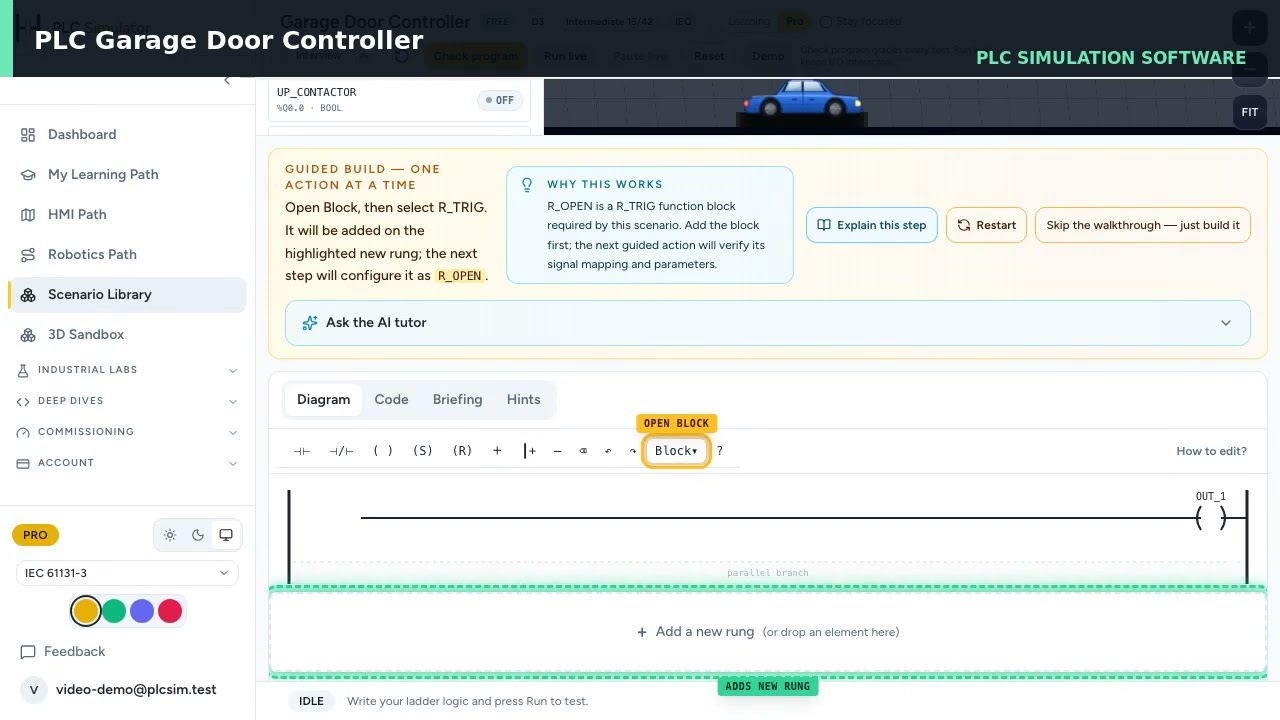

Garage Door Controller scenario preview

Ready to build this?

Sign up free — no credit card required. This scenario is included in the free tier.

Sign up to play this scenario →

Already have an account? Log in

Briefing

A residential overhead garage door driven by a reversing motor. Pressing OPEN starts the UP contactor until the UP_LIMIT switch is made; pressing CLOSE starts the DOWN contactor until DOWN_LIMIT. While the door is closing, a photo-eye mounted near the floor monitors for obstructions — if OBSTACLE_PE trips during a close, the motor must immediately reverse and drive the door back up to the fully-open position. A warning lamp flashes whenever the door is in motion. UP and DOWN contactors must NEVER be energised at the same time; a mechanical interlock is also present, but your ladder logic must enforce it as well.

Objectives

  • OPEN push-button starts the UP contactor; it latches until UP_LIMIT trips
  • CLOSE push-button starts the DOWN contactor; it latches until DOWN_LIMIT trips
  • OBSTACLE_PE during a close reverses the motion — UP runs until UP_LIMIT
  • WARNING_LAMP flashes at ~2 Hz while either contactor is energised
  • UP_CONTACTOR and DOWN_CONTACTOR must never both be on in the same scan

Hints

  • Use internal OPENING/CLOSING state bits. SET on the appropriate PB rising edge, RESET on the limit
  • UP_CONTACTOR := OPENING AND NOT CLOSING; DOWN_CONTACTOR := CLOSING AND NOT OPENING — the SET/RESET logic keeps them mutually exclusive
  • Detect the obstacle as a rising edge on OBSTACLE_PE while CLOSING is active: RESET CLOSING, then SET OPENING
  • Flash WARNING_LAMP with two linked TONs (250 ms each) driven by an OPENING OR CLOSING "motion" bit

I/O Table

Inputs

OPEN_PB

Open push-button (momentary)

BOOL · %I0.0

CLOSE_PB

Close push-button (momentary)

BOOL · %I0.1

OBSTACLE_PE

Obstruction photo-eye near the floor

BOOL · %I0.2

UP_LIMIT

Upper travel limit switch (door fully open)

BOOL · %I0.3

DOWN_LIMIT

Lower travel limit switch (door fully closed)

BOOL · %I0.4

Outputs

UP_CONTACTOR

Motor up-direction contactor

BOOL · %Q0.0

DOWN_CONTACTOR

Motor down-direction contactor

BOOL · %Q0.1

WARNING_LAMP

Motion warning lamp (flashes while moving)

BOOL · %Q0.2

Your program will be tested against:

All test cases run automatically when you submit. Assertions are hidden until you pass.

  1. #1Open from closed drives UP until UP_LIMIT

    Press OPEN -> UP on; door travels up; UP_LIMIT trips -> UP off

  2. #2Close from fully open drives DOWN until DOWN_LIMIT

    First open the door, then press CLOSE -> DOWN on; DOWN_LIMIT trips -> DOWN off

  3. #3Obstacle during close reverses motion back to UP_LIMIT

    Open, close, mid-close trip OBSTACLE_PE -> DOWN off + UP on until UP_LIMIT

  4. #4Warning lamp flashes while either contactor is energised

    Start opening; sample WARNING_LAMP twice during motion to observe a state toggle

  5. #5UP and DOWN contactors are never simultaneously energised

    Exercise open -> close -> obstacle-reverse; assert interlock invariant was never violated

Garage door PLC I/O assignments

A residential overhead garage door needs five digital inputs and three digital outputs. The inputs are two push-buttons (OPEN, CLOSE), two travel limit switches (UP_LIMIT when the door is fully open, DOWN_LIMIT when fully closed) and a photo-eye safety sensor (OBSTACLE_PE) mounted near the floor.

The outputs are two motor contactors (UP_CONTACTOR drives the door upward, DOWN_CONTACTOR drives it downward) and a WARNING_LAMP that flashes at approximately 2 Hz whenever the door is in motion. A key constraint: UP_CONTACTOR and DOWN_CONTACTOR must never be energised in the same scan — the program must enforce this interlock even though a mechanical interlock is also wired.

garage door PLC I/O table inputs outputs limit switches obstacle sensor
Garage door I/O: five inputs (OPEN_PB %I0.0, CLOSE_PB %I0.1, OBSTACLE_PE %I0.2, UP_LIMIT %I0.3, DOWN_LIMIT %I0.4) and three outputs (UP_CONTACTOR %Q0.0, DOWN_CONTACTOR %Q0.1, WARNING_LAMP %Q0.2).

SET/RESET direction latches — the core of the garage door ladder logic

The cleanest way to program a garage door in ladder logic is with two internal state bits — OPENING and CLOSING — controlled by SET and RESET coils. When the OPEN push-button fires a rising edge, SET OPENING. When UP_LIMIT trips, RESET OPENING. The same mirror pattern applies to CLOSING: SET on the CLOSE push-button edge, RESET when DOWN_LIMIT trips.

The actual motor outputs are then derived from the state bits in a single rung each: UP_CONTACTOR energises when OPENING is true AND CLOSING is false; DOWN_CONTACTOR energises when CLOSING is true AND OPENING is false. Because OPENING and CLOSING are never both set at the same time by the latch logic, the interlock is structural rather than a patch-up.

garage door PLC ladder logic SET RESET latch rung direction control interlock
The direction-control rung: OPENING AND NOT CLOSING drives UP_CONTACTOR. The mutual-exclusion interlock is baked in — not bolted on.

Obstacle auto-reverse ladder rung

The safety requirement is: if OBSTACLE_PE trips on a rising edge while the door is closing, immediately switch from closing to opening and run the motor back up to UP_LIMIT. In ladder logic this is two extra SET/RESET rungs triggered by the edge of OBSTACLE_PE:

• RESET CLOSING — stops the downward travel immediately. • SET OPENING — starts upward travel toward UP_LIMIT.

Both rungs are gated on the rising-edge bit of OBSTACLE_PE AND CLOSING, so the obstacle sensor only triggers reversal when the door is actually moving downward. A photo-eye beam-break at any other time (door fully open or stopped) is ignored.

garage door PLC auto-reverse ladder rung obstacle photo-eye safety
Obstacle auto-reverse: OBSTACLE_PE rising edge while CLOSING resets CLOSING and sets OPENING — the door immediately reverses to the fully-open position.

Timing diagram: close, obstacle, auto-reverse

The timing diagram shows the three-event sequence that the obstacle-reversal test case exercises. First, CLOSE_PB fires a momentary pulse — DOWN_CONTACTOR and WARNING_LAMP both turn on. About two seconds later OBSTACLE_PE trips for one scan — DOWN_CONTACTOR drops immediately, UP_CONTACTOR picks up and WARNING_LAMP remains on (the door is still in motion, just upward now). When the door reaches UP_LIMIT, UP_CONTACTOR drops and WARNING_LAMP goes off.

Note that DOWN_CONTACTOR and UP_CONTACTOR never overlap — the gap between them is enforced in the same scan by the SET/RESET order in the program.

garage door PLC ladder logic timing diagram close obstacle auto-reverse
Close-to-obstacle-to-open timing: DOWN drops in the same scan OBSTACLE_PE trips; UP picks up immediately. Both contactors are never simultaneously energised.

How to program a garage door PLC step by step

Writing a garage door PLC ladder logic program from scratch follows a clear sequence. Start by declaring the five inputs and three outputs in the variable block, then add the edge-detection function blocks (R_TRIG on OPEN_PB, CLOSE_PB and OBSTACLE_PE).

Next, write the OPENING latch rungs: SET on OPEN_PB rising edge (when not already closing), and also SET on OBSTACLE_PE rising edge while closing — that single rung handles the entire auto-reverse. Then RESET OPENING on UP_LIMIT. Mirror the pattern for CLOSING. Add the contactor rungs (OPENING AND NOT CLOSING → UP_CONTACTOR; CLOSING AND NOT OPENING → DOWN_CONTACTOR), derive the MOTION bit, and finally build the 2 Hz flasher from two cross-linked 250 ms TON timers.

This is a live runnable scenario on this page — write the logic, press Run, and the simulated door will open, close and auto-reverse in real time. The built-in test suite checks all five behaviours automatically.

how to build a garage door PLC ladder logic program step by step flowchart
Step-by-step build flow: from edge detectors and state latches to contactors, interlock and the 2 Hz warning lamp flasher.

Automatic door PLC ladder diagram — the reusable open/close pattern

The garage door program is really a general automatic door PLC ladder diagram: the same OPENING/CLOSING latch-plus-interlock structure drives any motorised door — overhead garage doors, sliding factory gates, automatic sliding entrances and roller shutters. Two SET/RESET state bits hold the direction memory after the momentary button is released, the two contactor rungs (OPENING AND NOT CLOSING → UP; CLOSING AND NOT OPENING → DOWN) make the interlock structural, and the obstacle photo-eye gives the safety auto-reverse that every automatic door needs. Swap the OPEN/CLOSE push-buttons for a motion sensor or a remote and the logic is unchanged.

That reusability is why this is one of the most-searched garage door PLC ladder logic patterns — learn it once and it ports straight to any door. The whole program is runnable and auto-graded in your browser — and to keep a copy of this garage door / automatic door PLC ladder diagram (I/O table plus every rung) beside you while you build, press Ctrl/Cmd+P on this page and choose Save as PDF.

Frequently asked questions

What PLC instructions are used in a garage door ladder logic program?

The core instructions are R_TRIG (rising-edge detector on the push-buttons and obstacle sensor), SET and RESET coils (to control the OPENING and CLOSING state bits), standard output coils for the contactors and warning lamp, and two TON timers cross-linked to build the 2 Hz flasher. No counters or complex math are needed.

Why use SET/RESET latches instead of seal-in rungs for a garage door?

A seal-in rung loses state the moment its enabling contact goes false. A SET/RESET latch retains its state across scans, which is exactly what a garage door needs: the motor must keep running after the momentary push-button is released, and stop only when the limit switch trips.

How do I stop UP_CONTACTOR and DOWN_CONTACTOR from both energising at the same time?

Drive each contactor rung with OPENING AND NOT CLOSING (for UP) and CLOSING AND NOT OPENING (for DOWN). Because OPENING and CLOSING are never both set by the latch logic, the interlock is structural. As a belt-and-suspenders measure, also add a normally-closed cross-interlock contact — NC DOWN_CONTACTOR in series on the UP rung and NC UP_CONTACTOR in series on the DOWN rung.

How does the obstacle auto-reverse work in ladder logic?

Detect a rising edge on OBSTACLE_PE. If CLOSING is also true in the same scan, issue a RESET CLOSING and a SET OPENING. The RESET drops the DOWN contactor immediately; the SET starts the UP contactor. The door then travels upward until UP_LIMIT trips and RESET OPENING fires.

How do I make the warning lamp flash at 2 Hz in PLC ladder logic?

Use two cross-linked TON timers, each preset to 250 ms. T_A runs while MOTION is true AND T_B.Q is false. When T_A.Q fires it starts T_B; when T_B.Q fires it resets T_A and T_B resets itself. WARNING_LAMP is driven by T_A.Q AND NOT T_B.Q — the 250 ms window between the two done bits gives a 50% duty-cycle 2 Hz flash.

Can I run a garage door PLC program without a real PLC?

Yes — this page is a live browser scenario. Write the ladder logic (or structured text), press Run, and a simulated garage door responds in real time. The built-in test suite checks all five behaviours: open to limit, close to limit, obstacle auto-reverse, warning lamp flash, and the interlock invariant. No hardware, no software install, no licence.

What does a garage door PLC ladder logic program look like?

It has three rung groups: edge detectors (R_TRIG on OPEN_PB, CLOSE_PB and OBSTACLE_PE), two direction-state latches (SET/RESET on OPENING and CLOSING, including the obstacle auto-reverse that SETs OPENING while CLOSING), and the output rungs — UP_CONTACTOR := OPENING AND NOT CLOSING, DOWN_CONTACTOR := CLOSING AND NOT OPENING, plus a 2 Hz WARNING_LAMP flasher from two cross-linked 250 ms TON timers. To keep a copy of this exact ladder logic, press Ctrl/Cmd+P on this page and choose Save as PDF.

How do you write a garage door PLC program?

Declare the five inputs and three outputs, add R_TRIG edge detectors on the buttons and obstacle sensor, then write the OPENING latch (SET on the OPEN edge or on an obstacle while closing, RESET on UP_LIMIT) and the mirror-image CLOSING latch. Derive the contactor outputs from the state bits so the interlock is built in, then add the flashing warning lamp. You can write and run exactly this garage door PLC program in the browser scenario on this page and have it graded automatically.

Can I use this as an automatic door PLC ladder diagram?

Yes — the OPENING/CLOSING latch, structural motor interlock and obstacle auto-reverse are a generic automatic door PLC ladder diagram. The same rungs drive sliding gates, roller shutters and automatic sliding entrances; you only swap the OPEN/CLOSE push-buttons for a motion sensor or remote trigger and re-label the contactors. The control logic — direction memory, mutual-exclusion interlock and safety reversal — stays identical.

Ready to build this?

Sign up free — no credit card required. This scenario is included in the free tier.

Sign up to play this scenario →

Already have an account? Log in

Runnable simulator field guide

Garage-door PLC program: implementation, evidence and troubleshooting

Direct answer

Garage-door PLC program becomes useful when it connects open, close and stop requests, end limits, obstruction state, motor directions and restart policy with operator request through interlocks and direction command to door position and independent limit feedback, then proves full open and close cycles with stop priority and exclusive motor direction under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for pLC beginners practising reversible motor commands, open and closed limits, stop priority, obstruction response and sequence recovery. The intended result is specific: the learner can run a door between limits without opposing commands, stop deliberately and recover from a changed sensor or obstruction case.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

open, close and stop requests, end limits, obstruction state, motor directions and restart policy. For garage-door ladder logic, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

operator request through interlocks and direction command to door position and independent limit feedback. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

full open and close cycles with stop priority and exclusive motor direction. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

command conflict, missing limit, obstruction, mid-travel stop, power return and sensor disagreement. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a contact sense, seal-in, interlock, limit or feedback fault isolated from state evidence. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

all normal, stop, obstruction, timeout and restart cases repeated from known positions. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert open, close and stop requests, end limits, obstruction state, motor directions and restart policy into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document operator request through interlocks and direction command to door position and independent limit feedback and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply full open and close cycles with stop priority and exclusive motor direction from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test command conflict, missing limit, obstruction, mid-travel stop, power return and sensor disagreement without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a contact sense, seal-in, interlock, limit or feedback fault isolated from state evidence and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete all normal, stop, obstruction, timeout and restart cases repeated from known positions and repeat the affected regression cases.

    Evidence: A run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Garage-door PLC program: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe operator, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The browser runtime joins editable control state to visible I/O and machine or process behavior, allowing the same initial conditions and stimuli to be replayed.

Where simulation stops

The scenario is educational and does not design or certify a real door controller, entrapment protection, electrical circuit or safety function.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. open, close and stop requests, end limits, obstruction state, motor directions and restart policy. For garage-door ladder logic, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert open, close and stop requests, end limits, obstruction state, motor directions and restart policy into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the operator, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about garage-door ladder logic? A defensible short answer is: Start with the operating contract and evidence path: open, close and stop requests, end limits, obstruction state, motor directions and restart policy, followed by operator request through interlocks and direction command to door position and independent limit feedback. Add advanced features only after the baseline is predictable.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. operator request through interlocks and direction command to door position and independent limit feedback. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document operator request through interlocks and direction command to door position and independent limit feedback and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise garage-door ladder logic effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. full open and close cycles with stop priority and exclusive motor direction. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply full open and close cycles with stop priority and exclusive motor direction from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. command conflict, missing limit, obstruction, mid-travel stop, power return and sensor disagreement. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test command conflict, missing limit, obstruction, mid-travel stop, power return and sensor disagreement without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a contact sense, seal-in, interlock, limit or feedback fault isolated from state evidence or command conflict, missing limit, obstruction, mid-travel stop, power return and sensor disagreement can expose assumptions that never appear during ideal startup and steady operation.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a contact sense, seal-in, interlock, limit or feedback fault isolated from state evidence. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a contact sense, seal-in, interlock, limit or feedback fault isolated from state evidence and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Can browser practice replace official software or hardware? A defensible short answer is: No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. all normal, stop, obstruction, timeout and restart cases repeated from known positions. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete all normal, stop, obstruction, timeout and restart cases repeated from known positions and repeat the affected regression cases. The acceptance record should show this result: a run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How should progress be documented? A defensible short answer is: Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

Answer surface / 07

Questions people ask about Garage-door PLC program

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What should I learn first about garage-door ladder logic?

Start with the operating contract and evidence path: open, close and stop requests, end limits, obstruction state, motor directions and restart policy, followed by operator request through interlocks and direction command to door position and independent limit feedback. Add advanced features only after the baseline is predictable.

How do I practise garage-door ladder logic effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a contact sense, seal-in, interlock, limit or feedback fault isolated from state evidence or command conflict, missing limit, obstruction, mid-travel stop, power return and sensor disagreement can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

What should I do when the answer differs from a guide?

Check assumptions, version, units and initial state first. Reduce the case, compare one boundary at a time and prefer current primary documentation for target-specific behavior.

When is a garage-door ladder logic exercise finished?

A run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition.

Real plc garage door program footage

See this exact skill in the working simulator.

Watch the real browser product respond to the task on this page, then try the same practical workflow yourself. No slides, concept mockups, install, or credit card.

Try this in the browser
PLC Garage Door Controller — Limits, Reversal and Safety
