Motor protection · beginner

Thermal Overload Relay

A motor-protection device that watches sustained current. Too much current heats internal strips, trips the mechanism, and opens the contactor control circuit before the motor overheats.

Why it exists

Protect a motor from overload and phase-loss heating. It does not replace a fuse or circuit breaker for short-circuit protection.

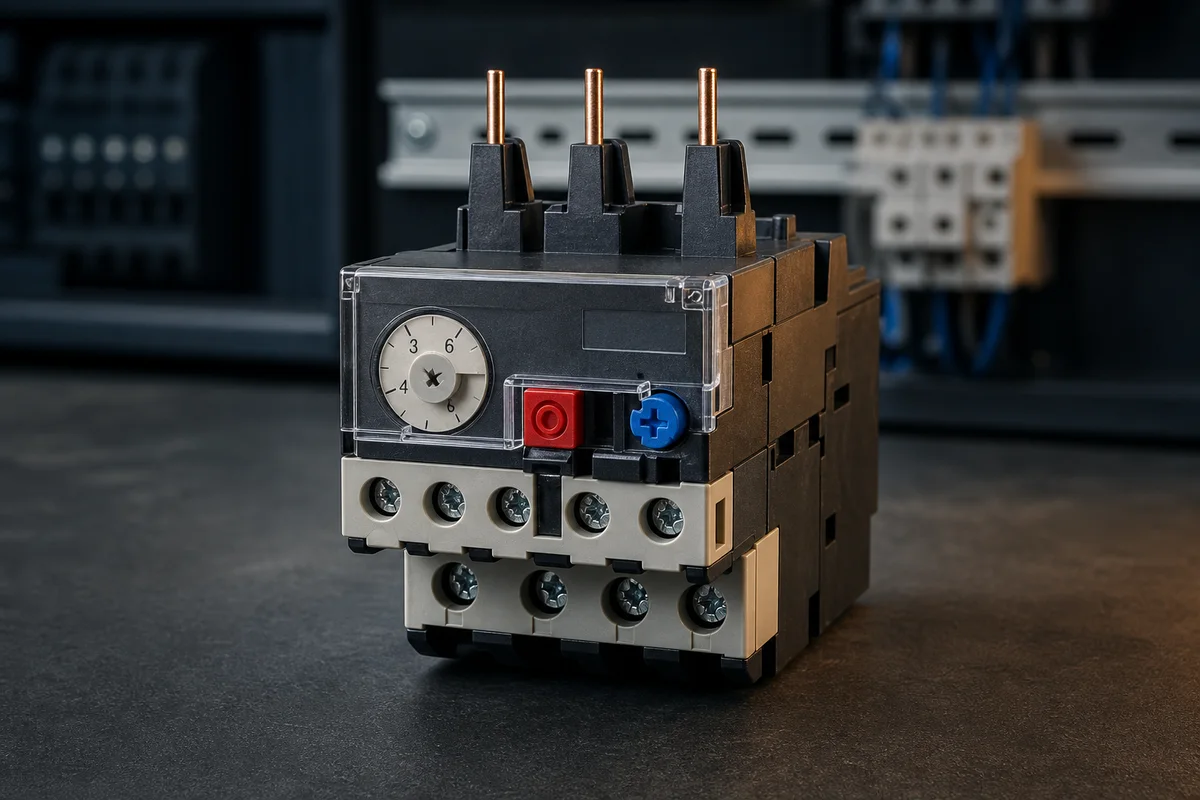

Three-phase thermal overload relay with current adjustment and reset controls

Quick answer

What is a thermal overload relay?

A thermal overload relay protects a motor from sustained overcurrent and phase-loss heating. Motor current warms bimetal elements; when accumulated heat exceeds the adjusted threshold, the trip mechanism opens auxiliary contact 95–96 in the contactor control circuit. It is deliberately slower than short-circuit protection so normal starting current can pass, and it does not replace fuses or a circuit breaker.

Inside the control system

How the PLC relates to it

The overload should interrupt the contactor circuit in hardware so the motor drops even if the PLC program or output fails to respond. A separate trip indication—often 97–98 or another auxiliary—is read by a PLC input for alarm text, sequence inhibition and maintenance history. The program should latch a meaningful fault, prevent automatic restart, and require the underlying overload or phase-loss condition to be corrected before reset. Do not use software to bypass the physical overload contact.

Cause and effect

How it works, step by step

  1. 01

    Motor current heats one bimetal strip per phase.

  2. 02

    A hotter strip bends because its two metals expand differently.

  3. 03

    The trip bar releases when bending exceeds the adjusted threshold.

  4. 04

    The 95–96 contact opens, dropping the contactor and reporting a fault.

01 / Open the case

Watch the mechanism do the work

Follow one highlighted causal link at a time, then operate the component and deliberately create the fault.

Unlock all interactive component labs

See plans

Know the terminals

  • L1 L2 L3 — from contactor
  • T1 T2 T3 — to motor
  • 95–96 — NC trip contact
  • 97–98 — NO indication

Recognise the faults

  • Dial set above motor nameplate current
  • Single phasing
  • Frequent manual reset without finding cause
  • Wrong trip class for the load

Read the field guide

Go deeper on sizing, wiring conventions, test procedure, and the mistakes that damage equipment.

Open the complete guide

02 / Ask in context

Ask about this exact component

The Pro AI tutor receives this component’s mechanism, terminals, and common faults so its explanation stays grounded in the lab.

Selection checks

  • Motor full-load current range and service-factor guidance.
  • Trip class appropriate to motor starting time and load inertia.
  • Manual or automatic reset mode—manual is normally safer for machinery.
  • Coordination with the selected contactor and short-circuit protective device.
  • Phase-loss sensitivity and ambient-temperature compensation.

Commissioning sequence

  1. 1Read the motor nameplate current and set the overload according to the manufacturer instructions and installation arrangement.
  2. 2Confirm all three motor phases pass through the correct overload current paths.
  3. 3Verify 95–96 is in series with the contactor coil permissive and that the PLC receives an unambiguous trip indication.
  4. 4Use the test function or an approved controlled test to prove trip, contactor dropout, alarm and restart inhibition.
  5. 5After a real trip, inspect current balance, load condition, cooling, supply voltage and mechanical binding before resetting.

Troubleshooting answers

Frequently asked questions

What do overload terminals 95 and 96 do?

They are the normally-closed trip contact commonly placed in series with the contactor coil. A trip opens 95–96 and removes the motor run command in hardware.

Why does an overload not trip instantly on motor start?

Motors draw high current while accelerating. The thermal model and trip class permit that short-duration inrush while still responding to sustained heating.

Can I simply reset a tripped overload?

Reset only after identifying why it tripped. Mechanical overload, phase loss, low voltage, blocked cooling or an incorrect setting will usually trip it again and may damage the motor.

Now use it in a machine

Recognition is not mastery. Build the control logic, operate the process, and prove the fault response.

Trip the motor overload

Free first success

Now control a thermal overload relay in a working machine

Move from recognition to PLC logic, feedback checks and fault recovery. The related guided exercise runs in your browser.

No installNo credit cardImmediate pass/fail feedback

Technical reference and worked-example guide

Thermal-overload relay learning guide: implementation, evidence and troubleshooting

Direct answer

Thermal-overload relay learning guide becomes useful when it connects motor nameplate current, service factor context, overload class, setting, phase current, balance, starts, ambient temperature, auxiliary contact, contactor path, reset mode and trip history with motor load through phase current and thermal model to trip mechanism, auxiliary contact, contactor drop-out, plc status, alarm and physical stopped state, then proves normal start and run remain below the modeled trip while an approved overload case trips and latches evidence under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for electrical and automation learners connecting overload current, thermal state, auxiliary contacts, contactor control and fault diagnosis. The intended result is specific: the learner can explain why a motor stops, distinguish overload protection from short-circuit protection and investigate the cause before reset.

an instructor and maintenance learner tracing a guarded safety and actuator signal path in an isolated diagnostic cell while studying motor thermal-overload trip, reset and PLC feedback
The scene keeps motor thermal-overload trip, reset and PLC feedback connected to declared conditions, observable behavior, diagnostic boundaries and evidence that another person can reproduce.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

motor nameplate current, service factor context, overload class, setting, phase current, balance, starts, ambient temperature, auxiliary contact, contactor path, reset mode and trip history. For motor thermal-overload trip, reset and PLC feedback, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

motor load through phase current and thermal model to trip mechanism, auxiliary contact, contactor drop-out, PLC status, alarm and physical stopped state. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

normal start and run remain below the modeled trip while an approved overload case trips and latches evidence. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

phase loss, jam, repeated starts, high ambient, incorrect setting, failed contact, remote reset, cooling delay and power return. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a load, supply, motor, current, setting, thermal, auxiliary, control-circuit or reset mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

cause and protection selection reviewed with current motor and device data before supervised restoration. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert motor nameplate current, service factor context, overload class, setting, phase current, balance, starts, ambient temperature, auxiliary contact, contactor path, reset mode and trip history into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document motor load through phase current and thermal model to trip mechanism, auxiliary contact, contactor drop-out, plc status, alarm and physical stopped state and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply normal start and run remain below the modeled trip while an approved overload case trips and latches evidence from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test phase loss, jam, repeated starts, high ambient, incorrect setting, failed contact, remote reset, cooling delay and power return without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a load, supply, motor, current, setting, thermal, auxiliary, control-circuit or reset mismatch and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete cause and protection selection reviewed with current motor and device data before supervised restoration and repeat the affected regression cases.

    Evidence: Reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Thermal-overload relay learning guide: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe technician, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The page connects definitions and worked examples to runnable tools, explicit assumptions and repeatable checks so a formula or pattern can be challenged.

Where simulation stops

A learning model cannot set or coordinate real protection, authorize reset or diagnose a motor without nameplate, current, installation and manufacturer data.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. motor nameplate current, service factor context, overload class, setting, phase current, balance, starts, ambient temperature, auxiliary contact, contactor path, reset mode and trip history. For motor thermal-overload trip, reset and PLC feedback, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert motor nameplate current, service factor context, overload class, setting, phase current, balance, starts, ambient temperature, auxiliary contact, contactor path, reset mode and trip history into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the technician, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What does a thermal overload relay protect? A defensible short answer is: It responds to sustained motor overcurrent using a thermal model and opens a control contact; it is not the same as short-circuit protection.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. motor load through phase current and thermal model to trip mechanism, auxiliary contact, contactor drop-out, PLC status, alarm and physical stopped state. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document motor load through phase current and thermal model to trip mechanism, auxiliary contact, contactor drop-out, plc status, alarm and physical stopped state and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why should an overload not be reset immediately? A defensible short answer is: The initiating load, phase, motor, setting or cooling problem may remain. Preserve current and trip evidence and correct the cause first.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. normal start and run remain below the modeled trip while an approved overload case trips and latches evidence. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply normal start and run remain below the modeled trip while an approved overload case trips and latches evidence from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about motor thermal-overload trip, reset and PLC feedback? A defensible short answer is: Start with the operating contract and evidence path: motor nameplate current, service factor context, overload class, setting, phase current, balance, starts, ambient temperature, auxiliary contact, contactor path, reset mode and trip history, followed by motor load through phase current and thermal model to trip mechanism, auxiliary contact, contactor drop-out, plc status, alarm and physical stopped state. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. phase loss, jam, repeated starts, high ambient, incorrect setting, failed contact, remote reset, cooling delay and power return. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test phase loss, jam, repeated starts, high ambient, incorrect setting, failed contact, remote reset, cooling delay and power return without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise motor thermal-overload trip, reset and PLC feedback effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a load, supply, motor, current, setting, thermal, auxiliary, control-circuit or reset mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a load, supply, motor, current, setting, thermal, auxiliary, control-circuit or reset mismatch and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. cause and protection selection reviewed with current motor and device data before supervised restoration. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete cause and protection selection reviewed with current motor and device data before supervised restoration and repeat the affected regression cases. The acceptance record should show this result: reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a load, supply, motor, current, setting, thermal, auxiliary, control-circuit or reset mismatch or phase loss, jam, repeated starts, high ambient, incorrect setting, failed contact, remote reset, cooling delay and power return can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about Thermal-overload relay learning guide

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What does a thermal overload relay protect?

It responds to sustained motor overcurrent using a thermal model and opens a control contact; it is not the same as short-circuit protection.

Why should an overload not be reset immediately?

The initiating load, phase, motor, setting or cooling problem may remain. Preserve current and trip evidence and correct the cause first.

What should I learn first about motor thermal-overload trip, reset and PLC feedback?

Start with the operating contract and evidence path: motor nameplate current, service factor context, overload class, setting, phase current, balance, starts, ambient temperature, auxiliary contact, contactor path, reset mode and trip history, followed by motor load through phase current and thermal model to trip mechanism, auxiliary contact, contactor drop-out, plc status, alarm and physical stopped state. Add advanced features only after the baseline is predictable.

How do I practise motor thermal-overload trip, reset and PLC feedback effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a load, supply, motor, current, setting, thermal, auxiliary, control-circuit or reset mismatch or phase loss, jam, repeated starts, high ambient, incorrect setting, failed contact, remote reset, cooling delay and power return can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

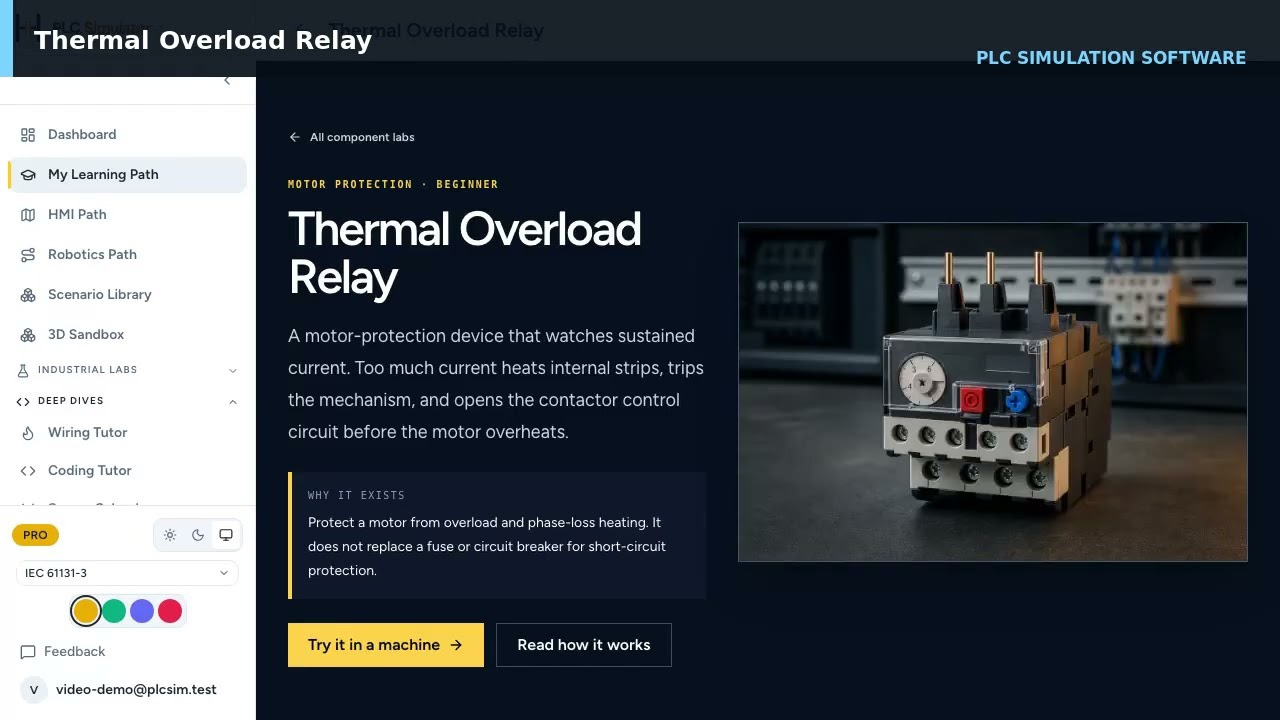

Real thermal overload relay footage
