Omron PLC programming: memory, workflow and tested boundaries
Direct answer
Omron PLC programming begins with an accurate memory and I/O model. Learn CIO channel/bit I/O, W and H work areas, D data memory, timers and counters. Build a small observable program, monitor the exact devices over scans and verify target-specific syntax, retentive behavior and download procedure in the official environment.
This guide is written for learners transferring vendor-neutral PLC reasoning into a named controller ecosystem without confusing mnemonic familiarity with full platform competence. The intended result is specific: the learner can read common Omron-style addresses, trace a start/stop or timed sequence and explain which behaviors still require the exact controller and engineering software.
System map / 02
Six concepts that control the result
Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

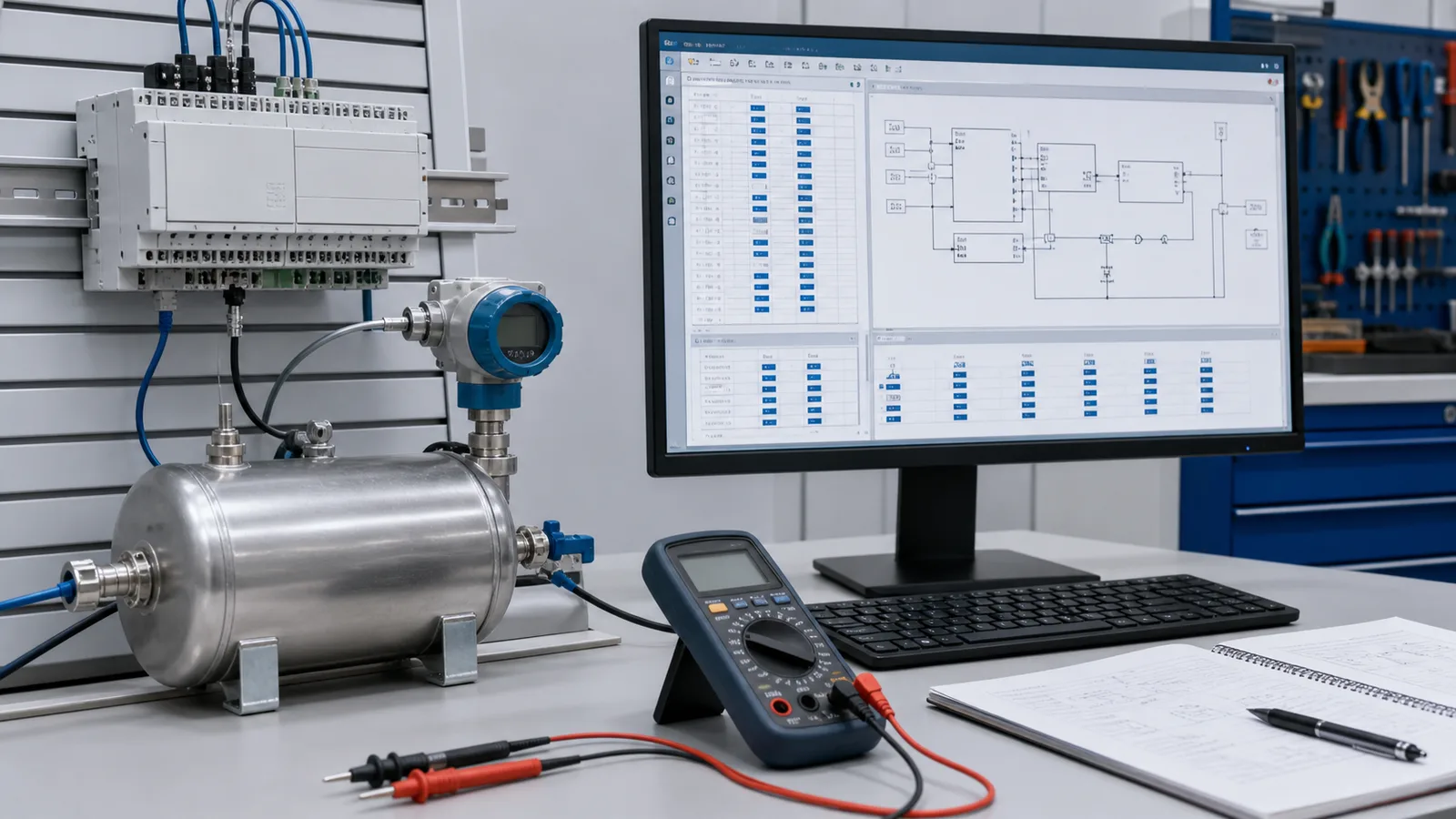

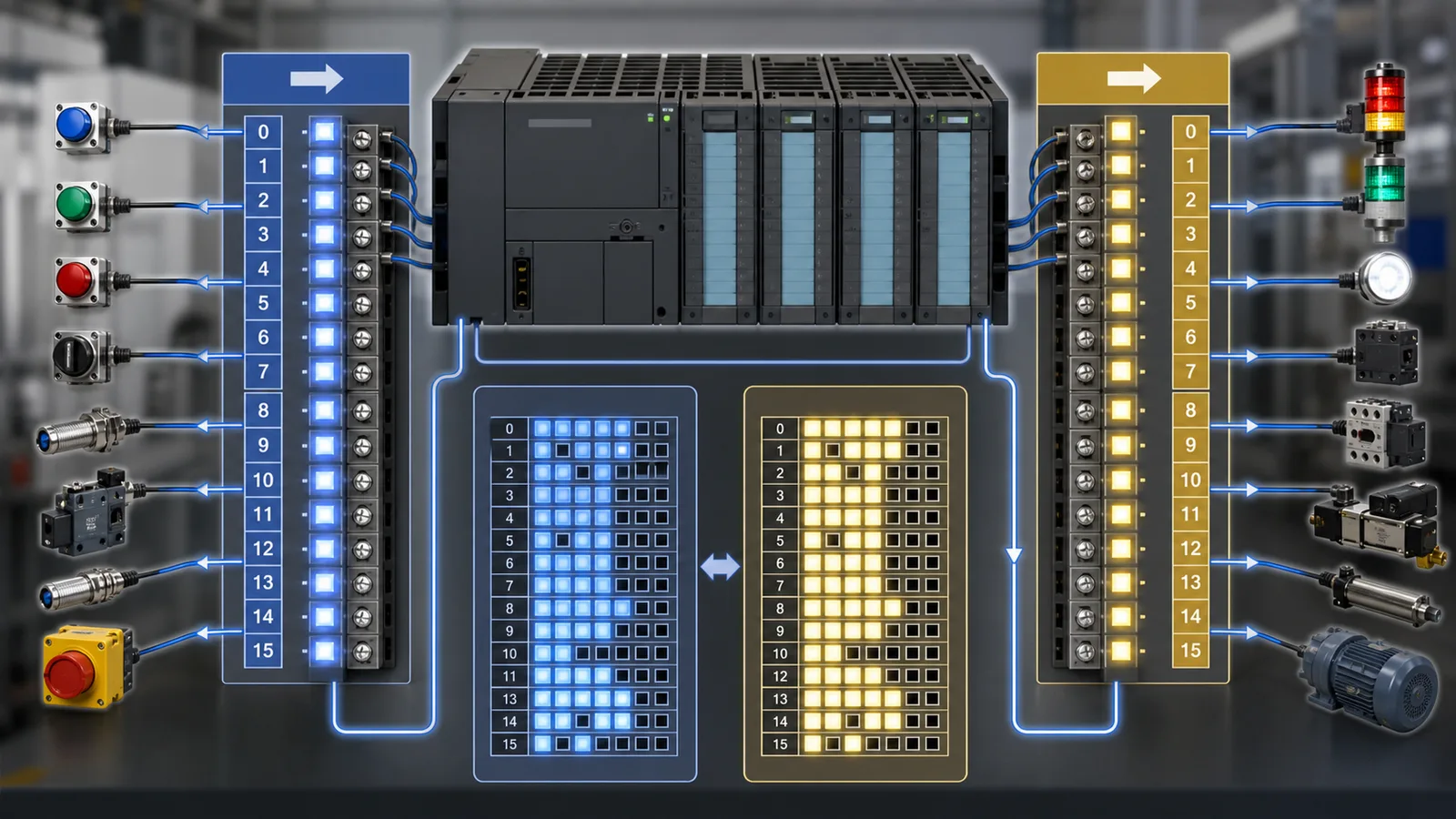

Device and address
Separate physical I/O, internal Boolean state, numeric data, timer/counter state and special/system areas within CIO channel/bit I/O, W and H work areas, D data memory, timers and counters.
Program scan
Follow the same input-read, logic-execution and output-update reasoning while confirming platform-specific task and refresh details.
Symbolic naming
Use meaningful symbols and comments even when maintenance requires device addresses to remain visible.
Retentive state
Confirm which areas and instructions retain state through mode change or power cycle for the exact CPU configuration.
Online observation
Monitor device state to compare input, logic result, output command and feedback without treating a forced value as normal operation.
Transfer boundary
Use CX-Programmer and Sysmac-family conventions require model-specific confirmation; repeat syntax, compile, download, timing and I/O tests before real deployment.
Procedure / 03
A six-step practice and commissioning workflow
Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.
- 01
Choose the CPU context
Record controller family, software and firmware assumptions.
Evidence: The exercise has a target boundary.
Avoid: Writing “all models” instructions.
- 02
Map the devices
Assign the example using CIO channel/bit I/O, W and H work areas, D data memory, timers and counters.
Evidence: Every address has one engineering role.
Avoid: Reusing a device for unrelated state.
- 03
Write normal behavior
Build one start/stop or sequence requirement.
Evidence: The program is readable and observable.
Avoid: Translating mnemonics without intent.
- 04
Monitor scans
Toggle inputs and watch devices, timers and outputs.
Evidence: State matches the predicted table.
Avoid: Using force as permanent logic.
- 05
Test reset and restart
Exercise stop, fault, mode change and initialization.
Evidence: Retained and cleared state is explicit.
Avoid: Assuming simulator persistence matches CPU memory.
- 06
Verify officially
Open the equivalent project in the supported vendor tool and hardware path.
Evidence: Compile and runtime evidence is target-specific.
Avoid: Treating browser success as commissioning.
Diagnostic matrix / 04
Symptoms, proving points and next actions
The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.
| Observed symptom | Inspect | Interpretation | Next proving action |
|---|---|---|---|
| Input address never changes | Physical mapping, channel/device address, refresh and force state | The program may read a different device than the wired point. | Verify the hardware map. |
| Internal bit changes unexpectedly | Every writer, special-area overlap and initialization | Memory ownership is unclear. | Cross-reference writes. |
| Timer behavior differs | Time base, instance/device, retentive semantics and task timing | Similar mnemonics can have platform differences. | Use the exact instruction help. |
| Value is corrupt | Register width, signedness, word order and conversion | The same device words can represent different types. | Inspect typed interpretation. |
| Download/run differs | CPU mode, compile warnings, retained values and I/O refresh | Editor simulation did not reproduce controller state. | Repeat on a controlled target. |
| Fault returns after reset | Active cause, diagnostic buffer and reset permissives | Reset is not removal of cause. | Read the official diagnostic record. |
Product evidence / 05
What the browser practice can actually demonstrate
The browser dialect page provides parser-tested examples, mapped memory concepts, runnable scenarios and an explicit boundary: CX-Programmer and Sysmac-family conventions require model-specific confirmation.
Where simulation stops
Manufacturer names identify the learning context; they do not imply affiliation, certification or exact emulation. Hardware selection, project conversion, communications, firmware and safety behavior require the official manuals and target equipment.
Commissioning notebook / 06
Six cases that turn the concepts into evidence
Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.
Case 01
predict → observe → prove
Prove device and address
Engineering context. Separate physical I/O, internal Boolean state, numeric data, timer/counter state and special/system areas within CIO channel/bit I/O, W and H work areas, D data memory, timers and counters. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.
Controlled setup. Use the “Choose the CPU context” stage of the workflow: record controller family, software and firmware assumptions. The acceptance record should show this result: the exercise has a target boundary. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.
Fault challenge. Introduce or analyse “Input address never changes” as one bounded deviation. Inspect physical mapping, channel/device address, refresh and force state The working interpretation is that the program may read a different device than the wired point. The next proving action is to verify the hardware map. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.
Review and recovery. The most common trap here is writing “all models” instructions. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.
Explain it aloud: Can I learn this PLC family online? A defensible short answer is: Yes. Learn CIO channel/bit I/O, W and H work areas, D data memory, timers and counters, common instructions and monitoring concepts online, then use official software and hardware for platform competence.
Case 02
predict → observe → prove
Prove program scan
Engineering context. Follow the same input-read, logic-execution and output-update reasoning while confirming platform-specific task and refresh details. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.
Controlled setup. Use the “Map the devices” stage of the workflow: assign the example using CIO channel/bit I/O, W and H work areas, D data memory, timers and counters. The acceptance record should show this result: every address has one engineering role. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.
Fault challenge. Introduce or analyse “Internal bit changes unexpectedly” as one bounded deviation. Inspect every writer, special-area overlap and initialization The working interpretation is that memory ownership is unclear. The next proving action is to cross-reference writes. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.
Review and recovery. The most common trap here is reusing a device for unrelated state. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.
Explain it aloud: Is this the official vendor simulator? A defensible short answer is: No. It is CX-Programmer and Sysmac-family conventions require model-specific confirmation.
Case 03
predict → observe → prove
Prove symbolic naming
Engineering context. Use meaningful symbols and comments even when maintenance requires device addresses to remain visible. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.
Controlled setup. Use the “Write normal behavior” stage of the workflow: build one start/stop or sequence requirement. The acceptance record should show this result: the program is readable and observable. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

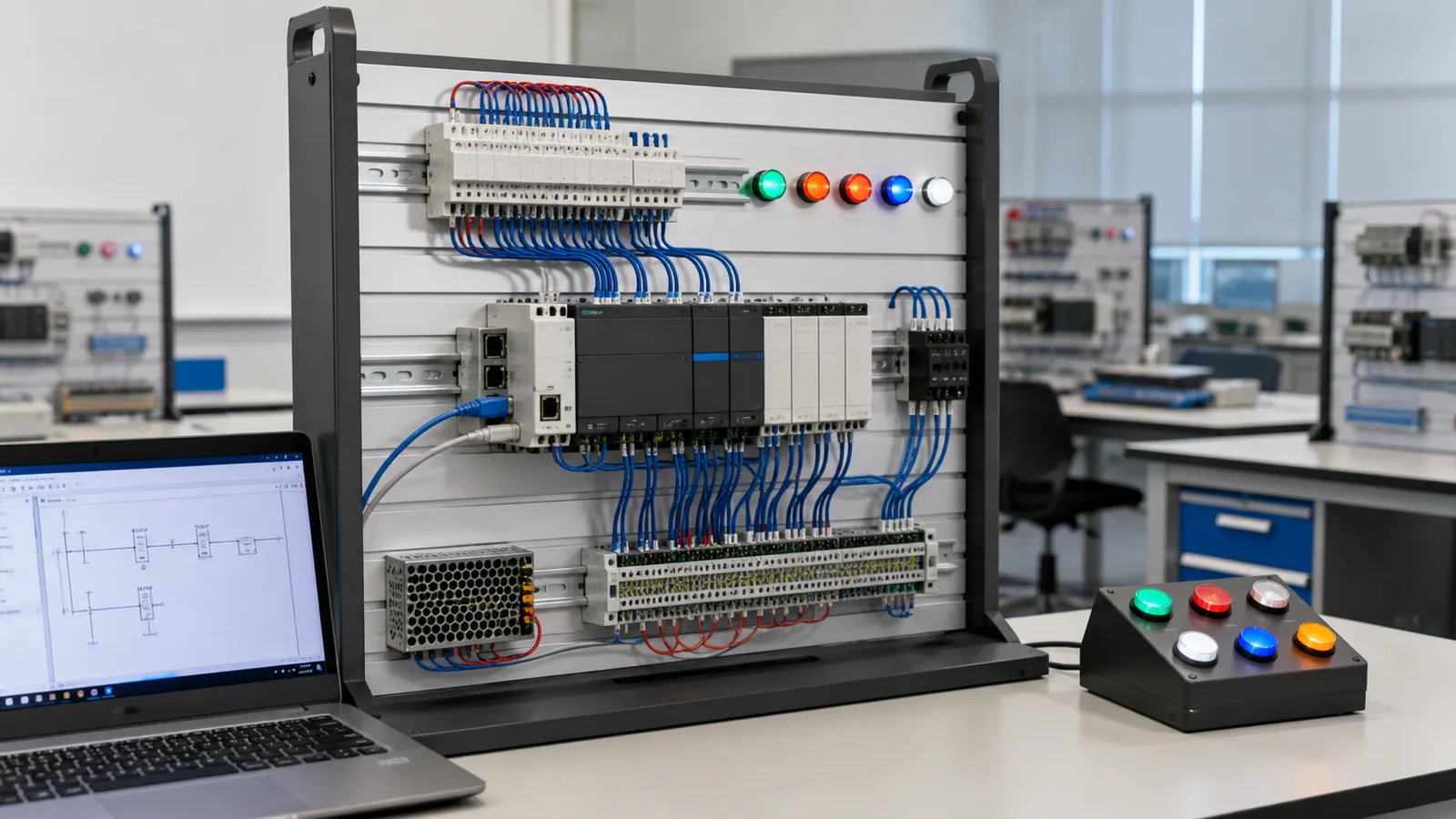

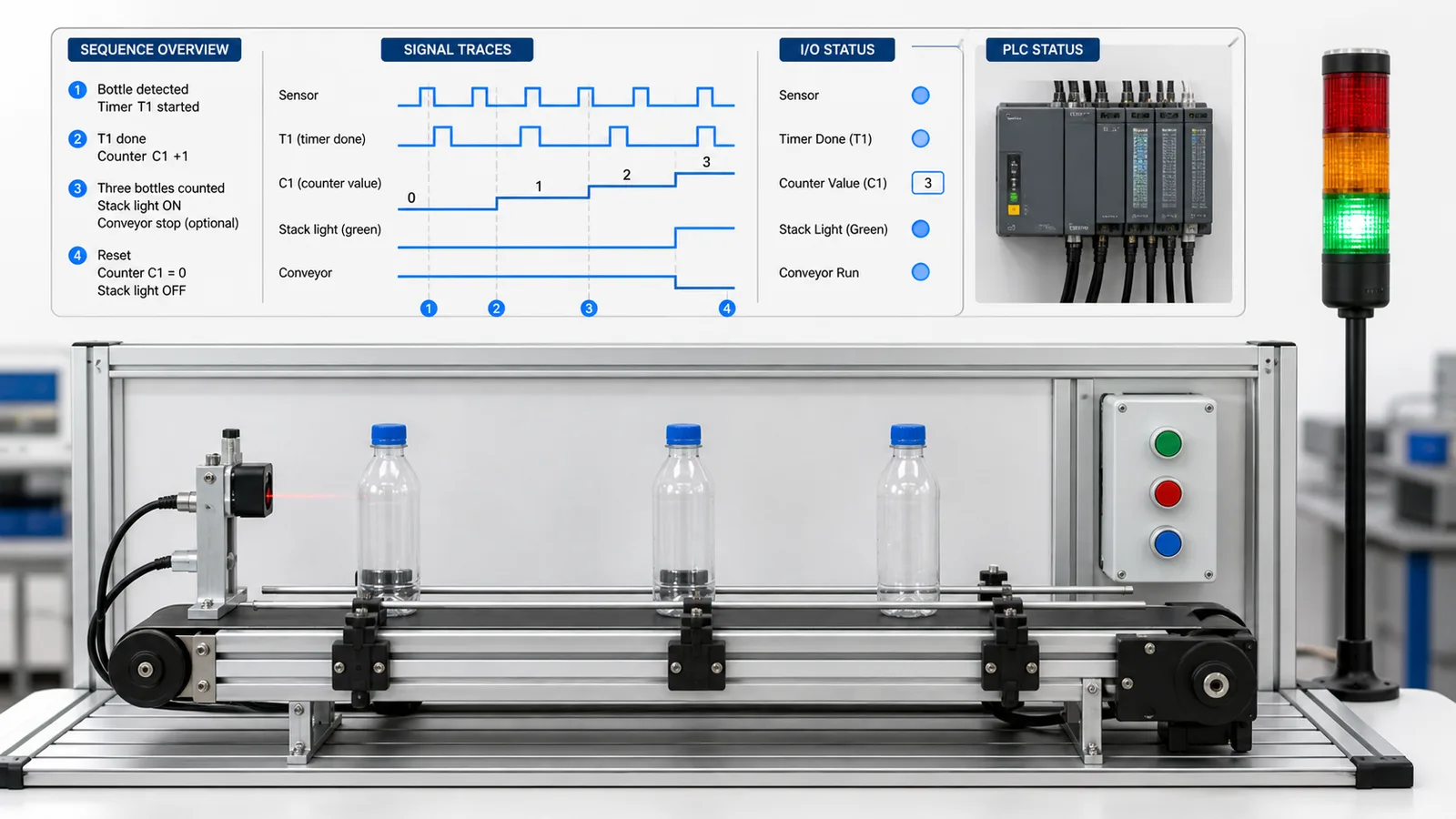

Fault challenge. Introduce or analyse “Timer behavior differs” as one bounded deviation. Inspect time base, instance/device, retentive semantics and task timing The working interpretation is that similar mnemonics can have platform differences. The next proving action is to use the exact instruction help. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.
Review and recovery. The most common trap here is translating mnemonics without intent. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.
Explain it aloud: Do device addresses work the same on every model? A defensible short answer is: No. CPU families, modules and software generations vary. Confirm the exact manuals.
Case 04
predict → observe → prove
Prove retentive state
Engineering context. Confirm which areas and instructions retain state through mode change or power cycle for the exact CPU configuration. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.
Controlled setup. Use the “Monitor scans” stage of the workflow: toggle inputs and watch devices, timers and outputs. The acceptance record should show this result: state matches the predicted table. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.
Fault challenge. Introduce or analyse “Value is corrupt” as one bounded deviation. Inspect register width, signedness, word order and conversion The working interpretation is that the same device words can represent different types. The next proving action is to inspect typed interpretation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.
Review and recovery. The most common trap here is using force as permanent logic. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.
Explain it aloud: Can I import this project into vendor software? A defensible short answer is: Do not assume project-file compatibility. Recreate and verify the example in the official environment.
Case 05
predict → observe → prove
Prove online observation
Engineering context. Monitor device state to compare input, logic result, output command and feedback without treating a forced value as normal operation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.
Controlled setup. Use the “Test reset and restart” stage of the workflow: exercise stop, fault, mode change and initialization. The acceptance record should show this result: retained and cleared state is explicit. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.
Fault challenge. Introduce or analyse “Download/run differs” as one bounded deviation. Inspect cPU mode, compile warnings, retained values and I/O refresh The working interpretation is that editor simulation did not reproduce controller state. The next proving action is to repeat on a controlled target. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.
Review and recovery. The most common trap here is assuming simulator persistence matches CPU memory. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

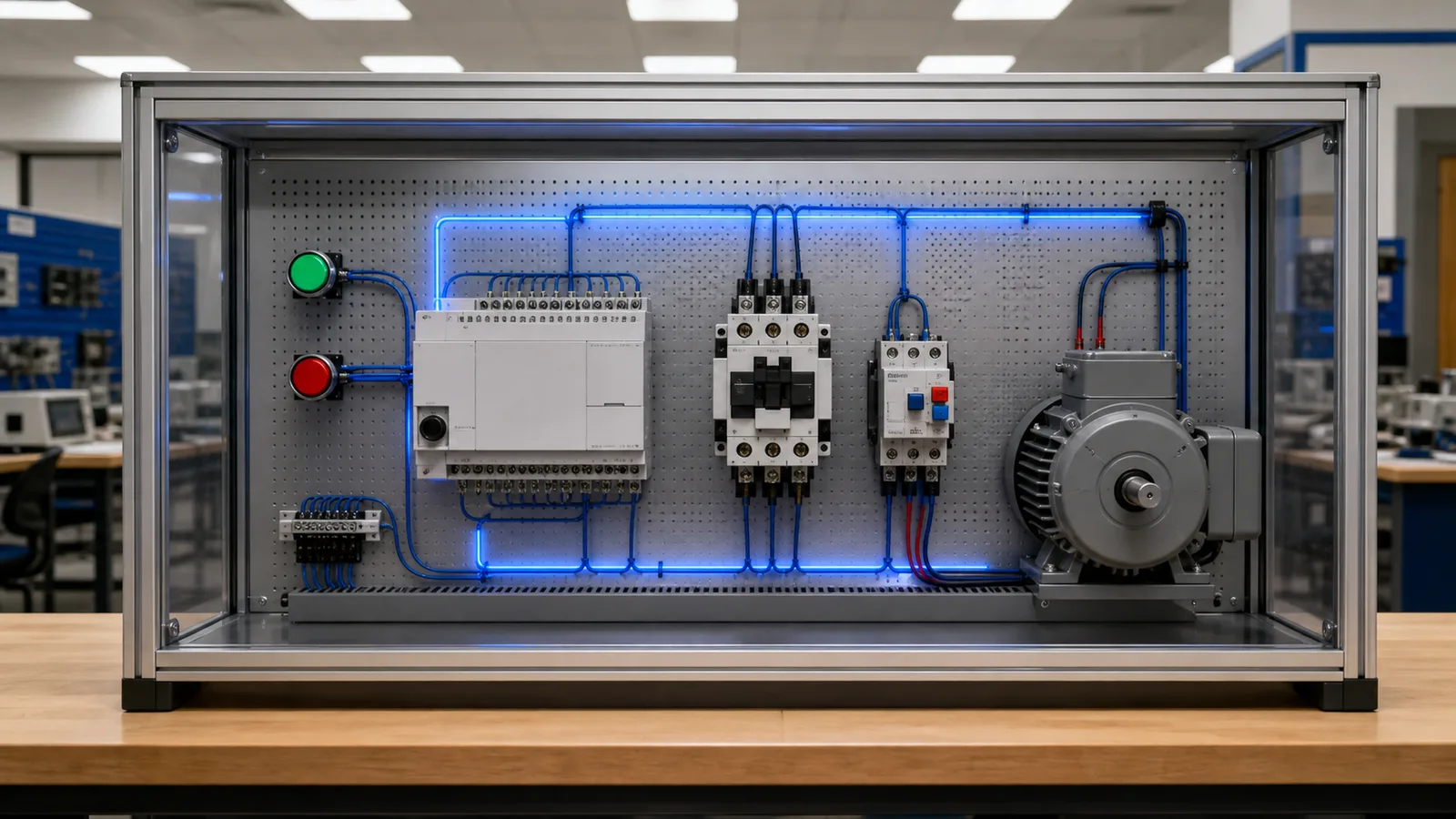

Explain it aloud: Which program should I build first? A defensible short answer is: Use a start-stop circuit with stop priority, then a timer or counter scenario with explicit reset.
Case 06
predict → observe → prove
Prove transfer boundary
Engineering context. Use CX-Programmer and Sysmac-family conventions require model-specific confirmation; repeat syntax, compile, download, timing and I/O tests before real deployment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.
Controlled setup. Use the “Verify officially” stage of the workflow: open the equivalent project in the supported vendor tool and hardware path. The acceptance record should show this result: compile and runtime evidence is target-specific. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.
Fault challenge. Introduce or analyse “Fault returns after reset” as one bounded deviation. Inspect active cause, diagnostic buffer and reset permissives The working interpretation is that reset is not removal of cause. The next proving action is to read the official diagnostic record. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.
Review and recovery. The most common trap here is treating browser success as commissioning. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.
Explain it aloud: Why are symbols still important? A defensible short answer is: Symbols preserve engineering meaning while device addresses satisfy the platform mapping.
Answer surface / 07
Questions people ask about Omron PLC programming
These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.
Can I learn this PLC family online?
Yes. Learn CIO channel/bit I/O, W and H work areas, D data memory, timers and counters, common instructions and monitoring concepts online, then use official software and hardware for platform competence.
Is this the official vendor simulator?
No. It is CX-Programmer and Sysmac-family conventions require model-specific confirmation.
Do device addresses work the same on every model?
No. CPU families, modules and software generations vary. Confirm the exact manuals.
Can I import this project into vendor software?
Do not assume project-file compatibility. Recreate and verify the example in the official environment.
Which program should I build first?
Use a start-stop circuit with stop priority, then a timer or counter scenario with explicit reset.
Why are symbols still important?
Symbols preserve engineering meaning while device addresses satisfy the platform mapping.
Can a browser test prove real I/O?
No. It proves the learning runtime behavior; physical I/O and task behavior need target tests.
Does the vendor endorse this page?
No. Vendor names and trademarks identify independent educational context.
