Motor Contactor

An electrically controlled heavy-duty switch. A small control voltage pulls in a magnetic mechanism that connects power to a motor or heater.

Why it exists

Let a PLC or pushbutton safely switch a much larger three-phase load without carrying motor current through the controller.

Try it in a machine Read how it works

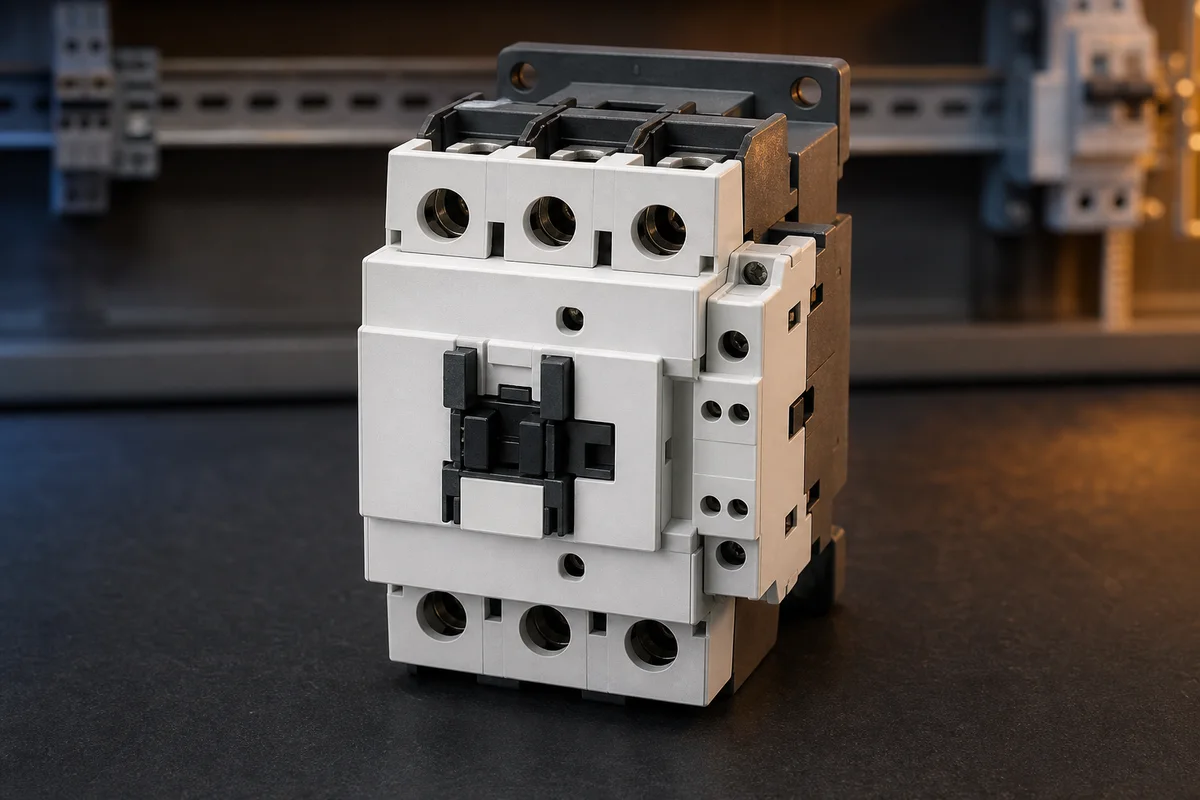

Three-pole industrial motor contactor with coil and auxiliary contact block

Quick answer

What is a motor contactor?

A motor contactor is an electromagnetic power switch. Applying the rated control voltage to coil terminals A1 and A2 pulls in an armature, closes the three main poles between L1–L3 and T1–T3, and changes its auxiliary contacts. Removing coil power lets a spring open the power poles. The PLC normally commands only the coil circuit and reads an auxiliary contact as proof that the physical contactor followed the command.

Inside the control system

How the PLC relates to it

Treat command and proof as separate signals. A PLC output can request the contactor through an interposing relay or correctly rated output circuit, but the controller should not assume that MOTOR_CMD means the motor power poles closed. Wire a mechanically linked auxiliary contact to a PLC input such as CONTACTOR_FB and compare command with feedback after a short pickup or dropout allowance. A command without feedback can indicate an open coil, low control voltage or mechanical failure; feedback that remains on after the command drops can indicate a welded pole or stuck armature. Motor current protection belongs to the overload relay and short-circuit protective device—not to the PLC bit.

Cause and effect

How it works, step by step

  1. 01

    Control voltage energises the copper coil.

  2. 02

    The magnetic field pulls the iron armature down.

  3. 03

    Three main contacts close together and an auxiliary contact changes state.

  4. 04

    Power reaches the load until the coil is de-energised.

01 / Open the case

Watch the mechanism do the work

Follow one highlighted causal link at a time, then operate the component and deliberately create the fault.

Unlock all interactive component labs

Create a free account to save your progress, then upgrade whenever you are ready to unlock this.

Create free accountSee plans

Know the terminals

  • A1 / A2 — coil
  • L1 L2 L3 — line
  • T1 T2 T3 — load
  • 13–14 — NO auxiliary

Recognize the faults

  • Open or wrong-voltage coil
  • Burned or welded main contacts
  • Weak control voltage causes chatter
  • Auxiliary feedback does not follow the main poles

Read the field guide

Go deeper on sizing, wiring conventions, test procedure, and the mistakes that damage equipment.

Open the complete guide

02 / Ask in context

Ask about this exact component

The Pro AI tutor receives this component’s mechanism, terminals, and common faults so its explanation stays grounded in the lab.

Selection checks

  • Utilisation category and current rating for the actual load—not only the motor nameplate current.
  • Coil voltage, suppression device and PLC-output compatibility.
  • Required normally-open and normally-closed auxiliary contacts.
  • Coordination with overload and short-circuit protection.
  • Mechanical and electrical life at the expected switching rate.

Commissioning sequence

  1. 1Confirm the coil voltage and frequency match the control supply before energising A1–A2.
  2. 2With power isolated, verify line and load conductors are on the correct main terminals and are tightened to the manufacturer torque.
  3. 3Jog the coil and prove that every main pole and the selected auxiliary contact change together.
  4. 4Trend command and auxiliary feedback in the PLC, then test missing-feedback and stuck-feedback alarms.
  5. 5Run the real load and inspect for chatter, excessive heat, noise or voltage drop.

Troubleshooting answers

Frequently asked questions

Why should a PLC read contactor feedback?

The output command proves only that the PLC asked for motion. An auxiliary contact gives independent physical evidence that the contactor changed state, allowing the program to detect a failed coil, broken wire or welded mechanism.

Can a PLC output drive a contactor coil directly?

Only when the output type, current, inrush, voltage and suppression are all compatible with the coil. Many installations use an interposing relay or dedicated interface. Confirm the actual module and contactor specifications.

What causes contactor chatter?

Common causes include low or unstable coil voltage, the wrong coil rating, a loose connection, dirt on the magnetic faces or a damaged shading ring on an AC contactor.

Now use it in a machine

Recognition is not mastery. Build the control logic, operate the process, and prove the fault response.

Use it in Motor Start/Stop

Free first success

Now control a motor contactor in a working machine

Move from recognition to PLC logic, feedback checks and fault recovery. The related guided exercise runs in your browser.

No installNo credit cardImmediate pass/fail feedback
Start the related machine exerciseCreate a free account

Technical reference and worked-example guide

Industrial contactor component guide: field reference

Direct answer

The reader can separate coil command, armature state, auxiliary contacts, main poles and load evidence and diagnose the first failed boundary.

Written for electrical and automation learners tracing low-power control, contactor mechanics, auxiliary feedback, three-phase switching and motor response.

an instructor and adult learner tracing contactors, protection, emergency stopping and actuator response in a guarded diagnostic cell while studying contactor coil, auxiliary contacts, power poles and PLC interface
System map / 02

NODE 01observable

Definition

Coil voltage and current, suppression, control source, auxiliary contacts, mechanical state, main-pole rating, utilization category, protection, interlock, load and feedback.

NODE 02observable

Signal path

PLC or control request through output interface, coil circuit, magnetic armature, auxiliary and main contacts, load energy and independent motion or process feedback.

NODE 03observable

Worked example

Repeated start and stop with coherent coil, mechanical, auxiliary, power-pole and load state.

NODE 04observable

Limits

Low coil voltage, open coil, welded pole, failed auxiliary, chatter, phase loss, overload trip, direction conflict and power return.

NODE 05observable

Common mistake

A control, coil, suppression, mechanical, auxiliary, main-pole, protection, phase, load or feedback mismatch.

NODE 06observable

Verification

The selected contactor and starter verified by qualified personnel using current coordination data and equipment tests.

Answer surface / 07

What is the difference between a contactor and a relay?

Both switch circuits electromagnetically, but contactors are generally designed for higher-power loads and have application-specific ratings, poles and arc control.

Why can a contactor pull in while a motor stays off?

A main pole, overload path, phase, conductor, motor or mechanical load can fail downstream of a healthy coil and armature.
