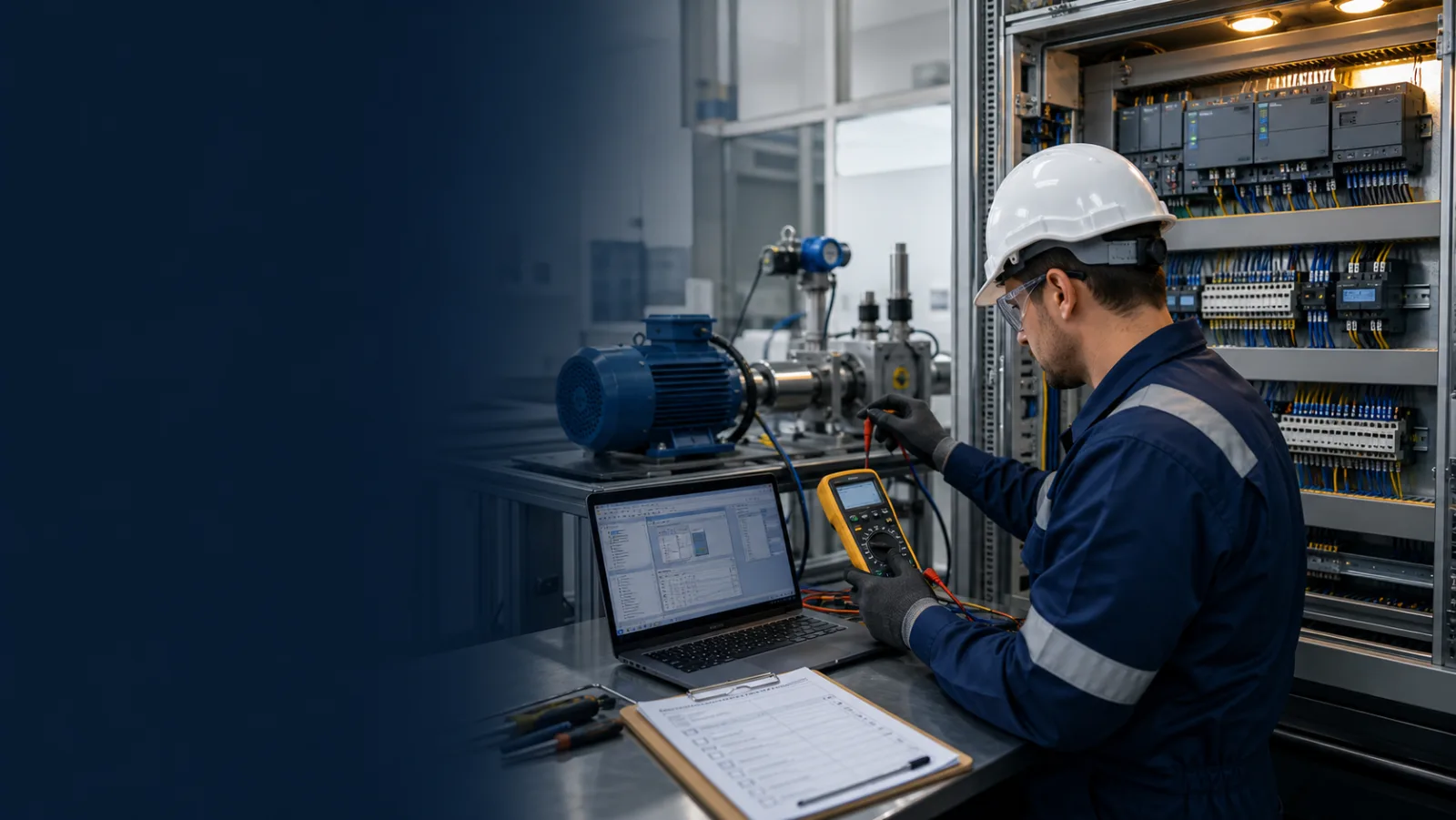

Controls engineer in PPE commissioning a generic PLC cabinet with laptop, multimeter and evidence checklist

Controls engineering · printable field checklist

PLC commissioning checklist: prove the machine one boundary at a time

Use a staged PLC commissioning sequence for documentation, safe power-up, I/O, networks, logic, faults, performance and handover evidence.

No install · no card · prove one real control outcome before signup

Direct answer

A defensible commissioning sequence moves from approved documents and a defined safe state to inspection, power quality, controller health, point-to-point I/O, communications, manual functions, automatic sequences, permissives, faults, performance and handover. Each phase has an entry condition and saved evidence. Skipping directly to Auto makes wiring, configuration and logic faults indistinguishable.

Stage work so faults have a small search area
Prove every I/O point in both states
Record network identity and loss behavior
Hand over backups, as-builts and functional evidence

Prove one boundary before opening the next

1/4Documents
2/4Hardware
3/4Behavior
4/4Evidence
01

1. Freeze the basis of test

Confirm the approved electrical drawings, I/O list, cause-and-effect, sequence description, safety requirements, software revision and device manuals. Mark unresolved design changes before energisation. A checklist cannot compensate for testing against the wrong revision.

Define who controls the work area, what may move, which energy sources are isolated and how temporary forces or bypasses will be logged and removed. Safety functions require their own validation plan and competent personnel; ordinary PLC functional testing does not certify them.

  • Approved drawings and I/O list
  • PLC/HMI/drive backups and revision identifiers
  • Network addressing plan
  • Risk assessment, permits and exclusion zones
  • Test equipment identification and calibration status
02

2. Inspect and power in stages

Inspect protection, earthing, segregation, terminals, labels, module positions, supply polarity and field-device ratings before power. Power the control supply without enabling motion where the design permits it. Record supply voltage at the source and at representative loads, then check CPU, I/O and network diagnostics.

Resolve unexpected faults before downloading or forcing around them. A wrong module, earth fault or undervoltage supply becomes harder to see after the application starts producing additional alarms.

03

3. Prove I/O point to point

For every discrete input, operate the real field device and confirm terminal voltage, input LED, raw PLC tag and HMI indication agree. Test both states. For outputs, isolate the load or use the approved test mode, command the channel and confirm the interface and feedback. Do not equate an output LED with a moving actuator.

For analog loops record zero, mid-scale and full-scale evidence, raw counts, engineering units, range and alarm behavior. For smart devices confirm identity, units, quality/status and parameter ownership. Remove every force immediately after its recorded test.

04

4. Prove sequences and recovery

Begin with manual functions and one actuator at a time. Then prove permissives and interlocks, start/stop behavior, mode transitions and automatic sequences at reduced risk. Test each important fault deliberately: remove a permissive, break feedback, lose communication, trip an overload or create an out-of-range analog value using the approved method.

A sequence has not passed until it enters the safe defined state, gives an actionable alarm, prevents an unsafe restart and recovers through the documented operator action. Power-cycle and warm-restart behavior should be tested where the risk assessment allows it.

05

5. Handover evidence, not memory

Save final controller, HMI, drive and network configurations with hashes or revision identifiers. Update as-built drawings, I/O checks, setpoints, alarm list, outstanding defects and temporary-change register. Demonstrate normal operation and recovery to the operator and maintenance owner.

The printable list below is intentionally vendor-neutral. Add model-specific checks from the current manufacturer documentation and site standards. Use the free wiring micro-lab to rehearse the point-to-point mindset before working on real equipment.

Field record

Evidence checklist

Primary technical sources

Use these official sources and the exact device manual for production work. This guide teaches diagnostic structure; it does not authorize live work or replace site procedures.

Questions

PLC commissioning checklist FAQ

Freeze the basis of test: approved drawings, I/O list, sequence, safety plan, software revision and ownership. Then inspect before applying power.

Free first success

Turn this diagnostic model into a visible result

Run the matching browser micro-lab, prove every operating state, then save the pass into the guided learning path.

No installNo credit cardImmediate pass/fail feedback

Technical reference and worked-example guide

PLC commissioning checklist: implementation, evidence and troubleshooting

Direct answer

PLC commissioning checklist becomes useful when it connects scope, approved drawings, risk controls, backups, versions, power, networks, i/o, instruments, drives, sequences, alarms, faults, performance, training and handover with design requirement through installed asset and point-to-point evidence to functional test, integrated operation, acceptance record and owner sign-off, then proves cold checks, controlled energization, i/o verification, dry sequence and representative production case completed in approved order under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for controls engineers, technicians, project managers and clients preparing to energize, test and hand over a PLC-controlled machine or process. The intended result is specific: the team can sequence document, safety, power, I/O, logic, communications, equipment, fault, performance and handover checks with named evidence and owners.

a qualified technician reviewing a locked-out motor starter, VFD, motor, schematic and meter at a training panel while studying PLC control-system commissioning readiness and evidence
The physical context keeps PLC control-system commissioning readiness and evidence tied to declared inputs, owned decisions, observable results and evidence that another person can verify.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

scope, approved drawings, risk controls, backups, versions, power, networks, I/O, instruments, drives, sequences, alarms, faults, performance, training and handover. For PLC control-system commissioning readiness and evidence, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

design requirement through installed asset and point-to-point evidence to functional test, integrated operation, acceptance record and owner sign-off. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

cold checks, controlled energization, I/O verification, dry sequence and representative production case completed in approved order. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

drawing mismatch, wrong version, reversed signal, failed interlock, communication loss, power return, manual mode, latent force and incomplete rollback. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a document, safety, installation, power, signal, configuration, program, interface, machine or acceptance defect. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

temporary changes removed, backups secured, open items risk-ranked and signed evidence handed to operations. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert scope, approved drawings, risk controls, backups, versions, power, networks, i/o, instruments, drives, sequences, alarms, faults, performance, training and handover into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document design requirement through installed asset and point-to-point evidence to functional test, integrated operation, acceptance record and owner sign-off and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply cold checks, controlled energization, i/o verification, dry sequence and representative production case completed in approved order from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test drawing mismatch, wrong version, reversed signal, failed interlock, communication loss, power return, manual mode, latent force and incomplete rollback without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a document, safety, installation, power, signal, configuration, program, interface, machine or acceptance defect and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete temporary changes removed, backups secured, open items risk-ranked and signed evidence handed to operations and repeat the affected regression cases.

    Evidence: Reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for PLC commissioning checklist: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe technician, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The page connects definitions and worked examples to runnable tools, explicit assumptions and repeatable checks so a formula or pattern can be challenged.

Where simulation stops

A generic checklist does not authorize energization or replace the project risk assessment, approved procedures, standards, permits and competent supervision.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. scope, approved drawings, risk controls, backups, versions, power, networks, I/O, instruments, drives, sequences, alarms, faults, performance, training and handover. For PLC control-system commissioning readiness and evidence, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert scope, approved drawings, risk controls, backups, versions, power, networks, i/o, instruments, drives, sequences, alarms, faults, performance, training and handover into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the technician, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should be on a PLC commissioning checklist? A defensible short answer is: Include scope and safety readiness, documents and backups, power and networks, I/O and instruments, drives, modes, sequences, interlocks, alarms, faults, restart, performance and handover.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. design requirement through installed asset and point-to-point evidence to functional test, integrated operation, acceptance record and owner sign-off. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document design requirement through installed asset and point-to-point evidence to functional test, integrated operation, acceptance record and owner sign-off and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What is the difference between PLC testing and commissioning? A defensible short answer is: Testing can verify bounded behavior in isolation; commissioning proves the installed integrated system under approved site conditions and acceptance criteria.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. cold checks, controlled energization, I/O verification, dry sequence and representative production case completed in approved order. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply cold checks, controlled energization, i/o verification, dry sequence and representative production case completed in approved order from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about PLC control-system commissioning readiness and evidence? A defensible short answer is: Start with the operating contract and evidence path: scope, approved drawings, risk controls, backups, versions, power, networks, i/o, instruments, drives, sequences, alarms, faults, performance, training and handover, followed by design requirement through installed asset and point-to-point evidence to functional test, integrated operation, acceptance record and owner sign-off. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. drawing mismatch, wrong version, reversed signal, failed interlock, communication loss, power return, manual mode, latent force and incomplete rollback. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test drawing mismatch, wrong version, reversed signal, failed interlock, communication loss, power return, manual mode, latent force and incomplete rollback without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise PLC control-system commissioning readiness and evidence effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a document, safety, installation, power, signal, configuration, program, interface, machine or acceptance defect. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a document, safety, installation, power, signal, configuration, program, interface, machine or acceptance defect and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. temporary changes removed, backups secured, open items risk-ranked and signed evidence handed to operations. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete temporary changes removed, backups secured, open items risk-ranked and signed evidence handed to operations and repeat the affected regression cases. The acceptance record should show this result: reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a document, safety, installation, power, signal, configuration, program, interface, machine or acceptance defect or drawing mismatch, wrong version, reversed signal, failed interlock, communication loss, power return, manual mode, latent force and incomplete rollback can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about PLC commissioning checklist

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What should be on a PLC commissioning checklist?

Include scope and safety readiness, documents and backups, power and networks, I/O and instruments, drives, modes, sequences, interlocks, alarms, faults, restart, performance and handover.

What is the difference between PLC testing and commissioning?

Testing can verify bounded behavior in isolation; commissioning proves the installed integrated system under approved site conditions and acceptance criteria.

What should I learn first about PLC control-system commissioning readiness and evidence?

Start with the operating contract and evidence path: scope, approved drawings, risk controls, backups, versions, power, networks, i/o, instruments, drives, sequences, alarms, faults, performance, training and handover, followed by design requirement through installed asset and point-to-point evidence to functional test, integrated operation, acceptance record and owner sign-off. Add advanced features only after the baseline is predictable.

How do I practise PLC control-system commissioning readiness and evidence effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a document, safety, installation, power, signal, configuration, program, interface, machine or acceptance defect or drawing mismatch, wrong version, reversed signal, failed interlock, communication loss, power return, manual mode, latent force and incomplete rollback can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.
