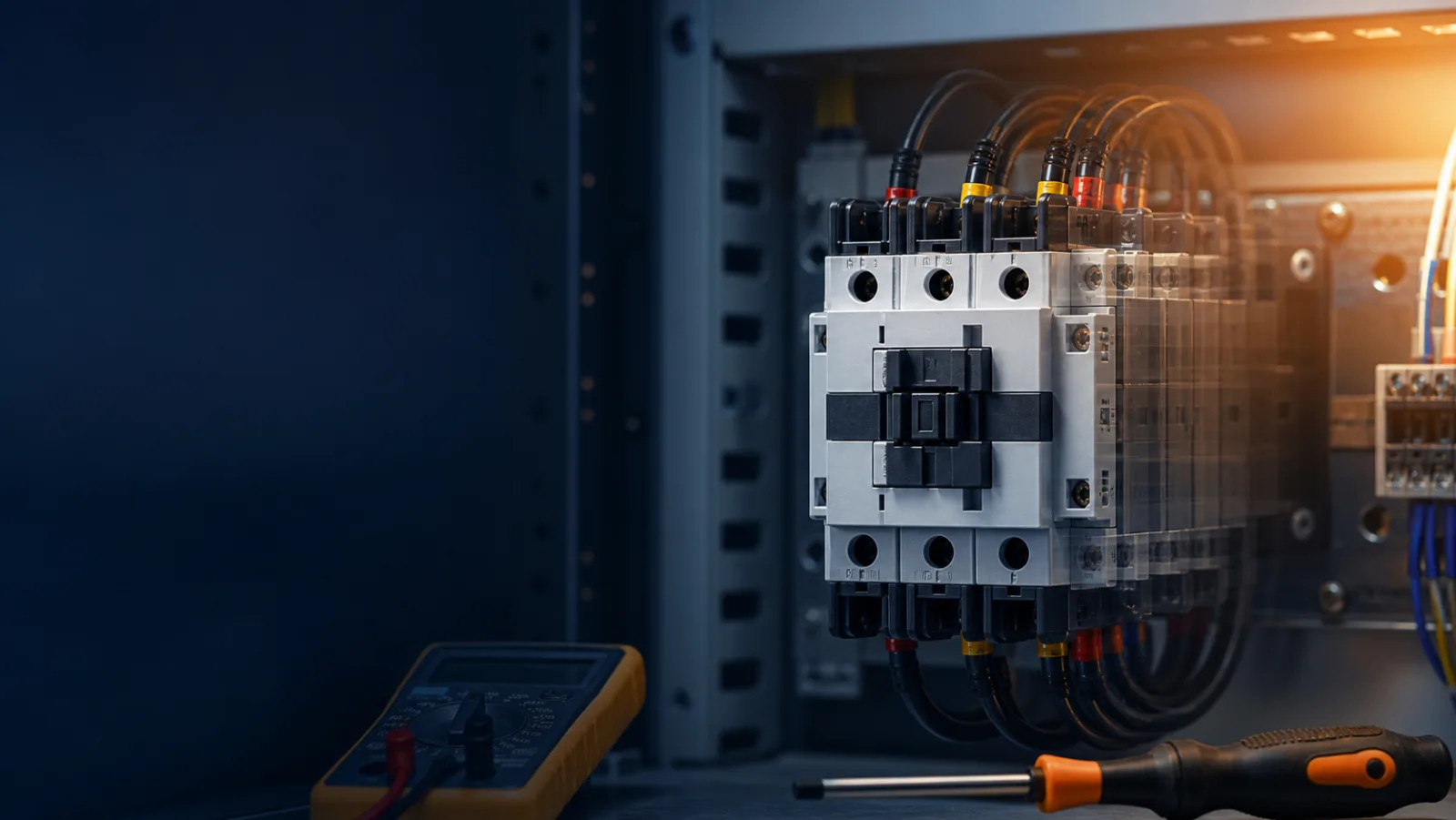

Generic three-pole motor contactor in a control cabinet with multimeter and visible vibration echoes illustrating contactor chatter diagnosis

Motor control troubleshooting · symptom-led guide

Contactor chattering: find the cause before the contacts are damaged

Diagnose contactor chatter from the control signal outward: low coil voltage, unstable inputs, loose control wiring, coil mismatch and mechanical problems.

No install · no card · prove one real control outcome before signup

Direct answer

Chatter means the armature cannot pull in and stay in. The shortest reliable path is to make the machine safe, identify the exact coil rating, observe the command, measure voltage at A1–A2 while the fault is happening, and then work backward through the control circuit. Low voltage, poor control contacts and a chattering input device are documented causes; repeated operation can overheat the coil and arc or weld the main contacts.

Separate a bad command from a bad contactor
Measure coil voltage under the actual fault condition
Check control-circuit voltage drop without bypassing protection
Know when to stop testing and replace damaged hardware
STEP 1Make safe
STEP 2Read coil rating
STEP 3Measure A1–A2
STEP 4Isolate root cause
01

What chattering actually tells you

A healthy electromagnetic contactor has two distinct states. With the coil de-energised, the return spring holds the armature open. With the correct control voltage applied, magnetic force pulls the armature fully home and the main poles close. Chatter is the unstable middle: the armature pulls in, loses holding force, releases, and repeats.

Do not begin by filing the contacts or forcing the armature. The noise is a symptom of an incomplete magnetic or control path. Repeated closing attempts create mechanical impact, coil heating and arcs at the power contacts. The cause and the damage can therefore become two separate problems.

A contactor that chatters only when a large load starts may be exposing control-voltage sag; one that chatters with a steady A1–A2 voltage is more suspicious for coil, shading-ring or mechanical damage.

02

Diagnose in signal-path order

First isolate the equipment using the site procedure, confirm the coil label and compare it with the control supply. An AC coil supplied from DC, the wrong nominal voltage, or the wrong frequency is not a subtle software fault. Next inspect terminations, auxiliary contacts, overload contacts, selector switches and PLC output interfaces for heat, looseness or intermittent operation.

When competent and authorised to make live measurements, measure directly across A1 and A2 while the chatter occurs. A measurement elsewhere can hide a voltage drop in a downstream stop contact, relay contact or terminal. Compare the observed pull-in and hold behaviour with the manufacturer data for that exact device.

  • Confirm coil type, nominal voltage and frequency
  • Observe whether the PLC output or interposing relay also flickers
  • Measure A1–A2 during chatter—not after it stops
  • Measure upstream and downstream of each series control element
  • Inspect the armature face only after isolation and removal
03

Common causes and the evidence they leave

Low control voltage produces a low A1–A2 reading and may worsen as the coil tries to pull in. Long cable runs, undersized conductors, weak control transformers and overloaded 24 VDC supplies all create voltage drop. A poor series contact produces a larger voltage difference across that contact while current flows. A bouncing limit switch, pressure switch or PLC command makes the control signal itself alternate.

If command and coil voltage remain stable yet the armature will not seat, stop electrical probing and inspect or replace the contactor according to its service instructions. Dirt, rust, a damaged shading ring on an AC device, a distorted armature or a failing coil can prevent full pull-in. Main contacts already heat-damaged or welded require replacement and investigation of the protected load.

04

PLC and ladder checks

A PLC output can chatter because the program command is genuinely changing. Trend the raw permissives, the final coil command and the feedback auxiliary contact together. A seal-in rung that uses an unfiltered pressure switch, an input with loose field wiring, or mutually conflicting set/reset logic may look like a contactor problem at the cabinet door.

Do not mask the symptom with a timer until you understand it. Input filtering may be appropriate for a noisy process signal; it is not a repair for a loose stop circuit or an undervoltage coil. Use the motor-control micro-lab below to see command, seal-in and stop behavior before applying the same signal-path thinking to the real panel.

Field record

Evidence checklist

Primary technical sources

Use these official sources and the exact device manual for production work. This guide teaches diagnostic structure; it does not authorize live work or replace site procedures.

Questions

Contactor chattering FAQ

Yes. Insufficient pull-in or holding voltage can make the armature repeatedly close and release. Measure at the coil terminals while the symptom is present and compare with the exact manufacturer range.

Free first success

Turn this diagnostic model into a visible result

Run the matching browser micro-lab, prove every operating state, then save the pass into the guided learning path.

No installNo credit cardImmediate pass/fail feedback
