EtherNet/IP training: CIP objects, assemblies and I/O connections

Learn EtherNet/IP roles, CIP assemblies, I/O connections, RPI selection, diagnostics and a practical commissioning sequence with saved evidence.

No install · no card · prove one real control outcome before signup

Direct answer

EtherNet/IP uses standard Ethernet and IP at the lower layers and the Common Industrial Protocol at the application layers. Explicit messaging commonly handles configuration and diagnostics; connected implicit messaging commonly carries time-critical I/O. A working connection requires compatible device identity, assemblies, data sizes, requested packet intervals and network capacity—not merely a reachable IP address.

Explain the EtherNet/IP communication model
Separate physical, identity, configuration and application faults
Prove live data instead of trusting a green icon
Record loss and recovery behavior

EtherNet/IP commissioning evidence

Turn a green link light into proven I/O behavior

A reliable EtherNet/IP handoff connects scanner and adapter roles, assembly definitions, device identity, RPI behavior and a real physical transition—with a deliberate connection-loss test at the end.

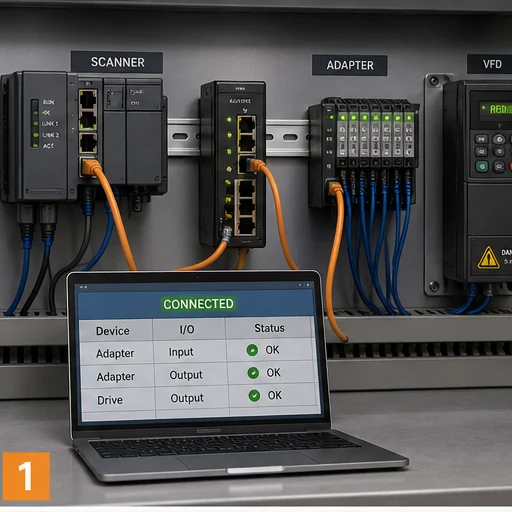

EtherNet/IP scanner, adapter, remote I/O and drive connected through an industrial Ethernet switch
01Name the scanner, adapters and produced or consumed data before opening the configuration tool.

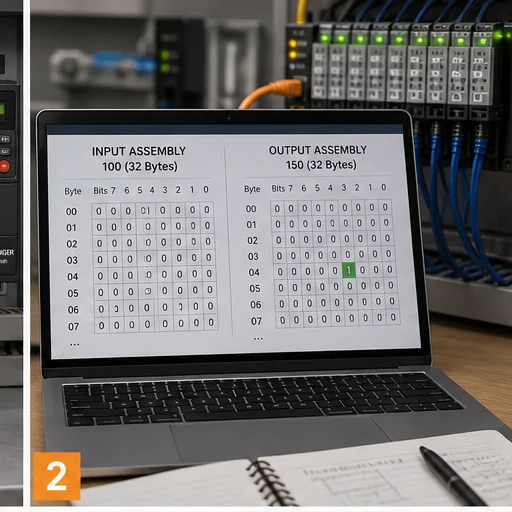

EtherNet/IP input assembly 100 and output assembly 150 byte map on a commissioning laptop
02Match assembly instances, byte lengths and data direction at both ends of the connection.

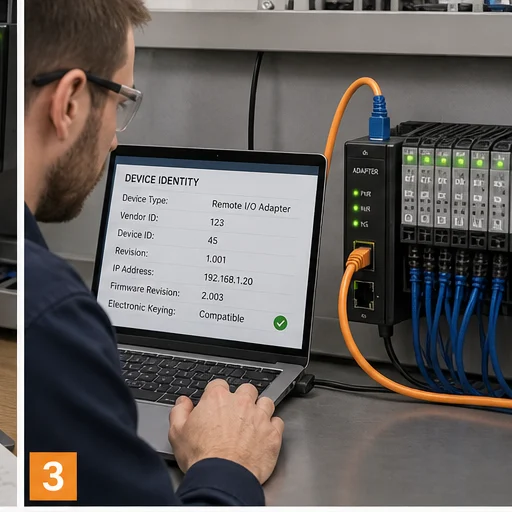

Controls technician verifying EtherNet/IP adapter vendor device revision and network identity
03Verify exact identity and revision before treating a rejected connection as a network fault.

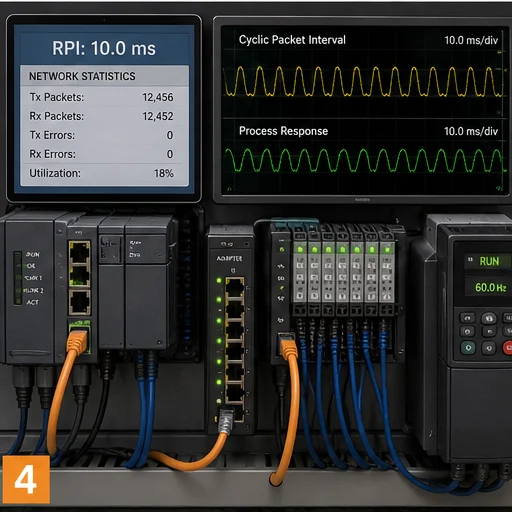

EtherNet/IP requested packet interval and cyclic response trend measured on an industrial network
04Choose an RPI the process needs and the network can sustain; record the normal baseline.

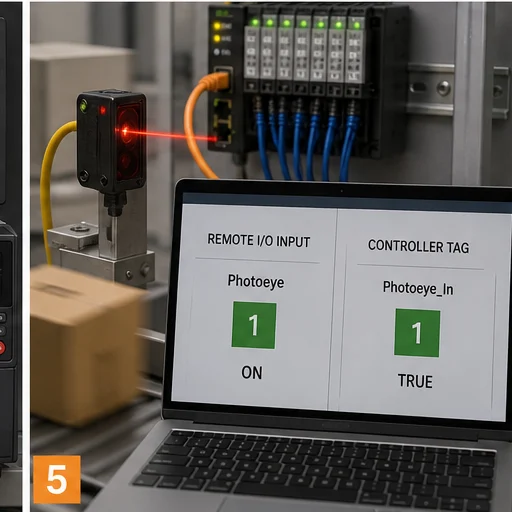

Photoelectric sensor transition proven through remote EtherNet/IP input and controller tag
05Operate a real field input and prove the remote channel and controller tag change together.

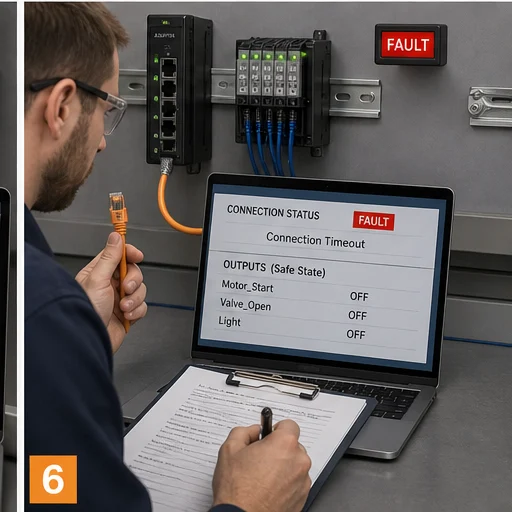

EtherNet/IP cable-disconnect test showing connection timeout and outputs entering their documented safe state
06Remove the connection using an approved method, then verify detection, safe state and recovery.

Commission from physical link to process evidence

01Media
02Identity
03Configuration
04Live data
05Loss test
A protocol is commissioned layer by layer: prove media, identity and the configured data contract before accepting live process behavior and recovery.
01

What EtherNet/IP is—and is not

EtherNet/IP uses standard Ethernet and IP at the lower layers and the Common Industrial Protocol at the application layers. Explicit messaging commonly handles configuration and diagnostics; connected implicit messaging commonly carries time-critical I/O. A working connection requires compatible device identity, assemblies, data sizes, requested packet intervals and network capacity—not merely a reachable IP address.

Treat EtherNet/IP as a defined system of roles, configuration and observable behavior. The cable and link LEDs are only the physical beginning. A device can be reachable yet rejected by the controller because identity, ownership, data layout or security does not match.

02

Build the configuration from the data contract

Write down who produces each value, who consumes it, its data type, length, update expectation, normal quality and safe behavior when communication is lost. Then configure the controller and device from that contract. This prevents byte maps and tag names from becoming undocumented magic.

Use the official device description and the manual for the exact firmware revision. Record every imported file and configuration revision so a replacement can be reproduced rather than rediscovered.

03

Commission in layers

Start with power, media and link. Then verify identity and ownership, compare configured modules or data structures, establish the connection, and only then prove a safe physical transition through the mapped process value. Read the detailed diagnostic before changing several settings at once.

Capture a normal baseline: connection state, update time, device identity and representative process values. Remove or disable the connection using an approved method and prove the controller detects stale data, enters the designed state and recovers predictably.

  • Identify scanner and adapter roles before configuring either end.
  • Import or verify the device description and record the exact revision.
  • Match input, output and configuration assemblies plus their byte lengths.
  • Set an RPI justified by the process and network design.
  • Prove a physical input transition and commanded output, then test connection loss.
04

Troubleshooting without random changes

If there is no link, stay at power, connectors, media and port configuration. If identity is wrong, resolve addressing, naming, certificate or ownership. If configuration is rejected, compare device files, module order, assemblies, data sizes and revisions. If connected data is wrong, inspect byte order, scaling, quality/status and application mapping.

Make one controlled change at a time and save the before/after evidence. The protocol school is vendor-neutral training; production commissioning still requires the current controller and device documentation plus the site network and security standards.

Field record

Evidence checklist

Primary technical sources

Use these official sources and the exact device manual for production work. This guide teaches diagnostic structure; it does not authorize live work or replace site procedures.

Questions

EtherNet/IP training FAQ

You can learn architecture, mapping, diagnostic order and failure behavior in a simulator. Physical installation, timing under plant load and device-specific configuration still require the real manuals, approved network and hardware.

Free first success

Turn this diagnostic model into a visible result

Run the matching browser micro-lab, prove every operating state, then save the pass into the guided learning path.

No installNo credit cardImmediate pass/fail feedback

Industrial communications field guide

EtherNet/IP training: data contract, commissioning and diagnosis

Direct answer

EtherNet/IP training is learned by making the data contract explicit: scanner, adapter, electronic identity, connection path, assemblies, byte sizes, requested packet interval and timeout. Successful packets are not enough; verify that CIP objects plus cyclic input/output and explicit messages represent the intended engineering state and that loss, stale data and recovery produce defined application behavior.

This guide is written for controls technicians and engineers commissioning controller-to-device or controller-to-software communications. The intended result is specific: the learner can separate physical link, network identity, transport/session, protocol request, data mapping and application behavior, then find the first failing layer.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Role ownership

Name each endpoint and which side initiates, serves, produces or consumes data within scanner, adapter, electronic identity, connection path, assemblies, byte sizes, requested packet interval and timeout.

NODE 02observable

Identity and path

Prove the exact endpoint and device identity before debugging the payload.

NODE 03observable

Data model

Map CIP objects plus cyclic input/output and explicit messages into typed engineering tags with direction, units and ownership.

NODE 04observable

Update behavior

Document cyclic, polled, subscribed or event behavior plus timing and timeout.

NODE 05observable

Quality and stale state

A value needs freshness and communication state; last-known data must not masquerade as current truth.

NODE 06observable

Recovery

Test disconnect, restart, reconnection, resubscription or connection establishment and application safe response.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Draw the topology

    Name endpoints, switches, media, addressing and ownership.

    Evidence: The intended path is unambiguous.

    Avoid: Beginning with random software settings.

  2. 02

    Verify the physical layer

    Check power, link, media, topology and port state.

    Evidence: Basic connectivity is proven.

    Avoid: Treating a link light as application success.

  3. 03

    Verify identity

    Confirm address, name, device/revision and endpoint role.

    Evidence: The configuration targets the intended device.

    Avoid: Connecting to the wrong but reachable endpoint.

  4. 04

    Match the contract

    Compare scanner, adapter, electronic identity, connection path, assemblies, byte sizes, requested packet interval and timeout at both ends.

    Evidence: Direction, size and identifiers agree.

    Avoid: Changing multiple fields simultaneously.

  5. 05

    Prove engineering data

    Operate one real or simulated input and map CIP objects plus cyclic input/output and explicit messages.

    Evidence: The expected tag changes with correct type and units.

    Avoid: Accepting a successful status with wrong data.

  6. 06

    Test failure and return

    Disconnect deliberately under an approved test and restore.

    Evidence: Timeout, safe state, stale indication and recovery pass.

    Avoid: Testing only startup success.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for EtherNet/IP training: data contract, commissioning and diagnosis
Observed symptomInspectInterpretationNext proving action
No physical linkPower, media, connector, switch and port stateThe failure is below protocol configuration.Restore link first.
Reachable but no session/connectionEndpoint role, identity, security or connection parametersNetwork path works while protocol establishment fails.Read exact status and logs.
Protocol exception or rejectFunction/service, object/address and scanner, adapter, electronic identity, connection path, assemblies, byte sizes, requested packet interval and timeoutThe peer understood enough to reject a request.Use the returned diagnostic.
Data changes but is wrongType, direction, byte/word mapping, scale and CIP objects plus cyclic input/output and explicit messagesTransport succeeds while interpretation fails.Compare a known pattern.
Intermittent timeoutLoad, update rate, topology, errors and resource limitsTiming margin or physical quality may be unstable.Capture counters and timestamps.
Reconnect leaves stale stateTimeout policy, quality, resubscription/reconnection and application stateCommunication returned without restoring the data contract.Test complete recovery sequence.

Product evidence / 05

What the browser practice can actually demonstrate

The public training surface provides vendor-neutral diagrams, mapping examples, staged diagnostics and links into related browser labs without claiming wire-level conformance.

Where simulation stops

A training guide does not certify interoperability, network architecture, cybersecurity or performance. Use current protocol-organization material, device manuals, approved tools and the actual installed topology.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove role ownership

Engineering context. Name each endpoint and which side initiates, serves, produces or consumes data within scanner, adapter, electronic identity, connection path, assemblies, byte sizes, requested packet interval and timeout. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Draw the topology” stage of the workflow: name endpoints, switches, media, addressing and ownership. The acceptance record should show this result: the intended path is unambiguous. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “No physical link” as one bounded deviation. Inspect power, media, connector, switch and port state The working interpretation is that the failure is below protocol configuration. The next proving action is to restore link first. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is beginning with random software settings. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first? A defensible short answer is: Start with roles and the exact data contract: scanner, adapter, electronic identity, connection path, assemblies, byte sizes, requested packet interval and timeout.

Case 02

predict → observe → prove

Prove identity and path

Engineering context. Prove the exact endpoint and device identity before debugging the payload. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Verify the physical layer” stage of the workflow: check power, link, media, topology and port state. The acceptance record should show this result: basic connectivity is proven. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Reachable but no session/connection” as one bounded deviation. Inspect endpoint role, identity, security or connection parameters The working interpretation is that network path works while protocol establishment fails. The next proving action is to read exact status and logs. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating a link light as application success. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Does a successful connection prove correct data? A defensible short answer is: No. Verify direction, type, scale, units, quality and physical meaning.

Case 03

predict → observe → prove

Prove data model

Engineering context. Map CIP objects plus cyclic input/output and explicit messages into typed engineering tags with direction, units and ownership. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Verify identity” stage of the workflow: confirm address, name, device/revision and endpoint role. The acceptance record should show this result: the configuration targets the intended device. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Protocol exception or reject” as one bounded deviation. Inspect function/service, object/address and scanner, adapter, electronic identity, connection path, assemblies, byte sizes, requested packet interval and timeout The working interpretation is that the peer understood enough to reject a request. The next proving action is to use the returned diagnostic. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is connecting to the wrong but reachable endpoint. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How should communication faults be diagnosed? A defensible short answer is: Move layer by layer from physical link and identity through protocol status, mapping and application behavior.

Case 04

predict → observe → prove

Prove update behavior

Engineering context. Document cyclic, polled, subscribed or event behavior plus timing and timeout. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Match the contract” stage of the workflow: compare scanner, adapter, electronic identity, connection path, assemblies, byte sizes, requested packet interval and timeout at both ends. The acceptance record should show this result: direction, size and identifiers agree. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Data changes but is wrong” as one bounded deviation. Inspect type, direction, byte/word mapping, scale and CIP objects plus cyclic input/output and explicit messages The working interpretation is that transport succeeds while interpretation fails. The next proving action is to compare a known pattern. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing multiple fields simultaneously. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What is stale data? A defensible short answer is: It is a previously valid value that is no longer being updated within the required freshness contract.

Case 05

predict → observe → prove

Prove quality and stale state

Engineering context. A value needs freshness and communication state; last-known data must not masquerade as current truth. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Prove engineering data” stage of the workflow: operate one real or simulated input and map CIP objects plus cyclic input/output and explicit messages. The acceptance record should show this result: the expected tag changes with correct type and units. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Intermittent timeout” as one bounded deviation. Inspect load, update rate, topology, errors and resource limits The working interpretation is that timing margin or physical quality may be unstable. The next proving action is to capture counters and timestamps. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is accepting a successful status with wrong data. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Should I increase timeouts first? A defensible short answer is: No. Preserve evidence and identify physical, load, configuration or processing causes before masking them.

Case 06

predict → observe → prove

Prove recovery

Engineering context. Test disconnect, restart, reconnection, resubscription or connection establishment and application safe response. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Test failure and return” stage of the workflow: disconnect deliberately under an approved test and restore. The acceptance record should show this result: timeout, safe state, stale indication and recovery pass. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Reconnect leaves stale state” as one bounded deviation. Inspect timeout policy, quality, resubscription/reconnection and application state The working interpretation is that communication returned without restoring the data contract. The next proving action is to test complete recovery sequence. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only startup success. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Can this browser guide test conformance? A defensible short answer is: No. It teaches concepts and diagnosis; formal conformance needs approved specifications and test programs.

Answer surface / 07

Questions people ask about EtherNet/IP training

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What should I learn first?

Start with roles and the exact data contract: scanner, adapter, electronic identity, connection path, assemblies, byte sizes, requested packet interval and timeout.

Does a successful connection prove correct data?

No. Verify direction, type, scale, units, quality and physical meaning.

How should communication faults be diagnosed?

Move layer by layer from physical link and identity through protocol status, mapping and application behavior.

What is stale data?

It is a previously valid value that is no longer being updated within the required freshness contract.

Should I increase timeouts first?

No. Preserve evidence and identify physical, load, configuration or processing causes before masking them.

Can this browser guide test conformance?

No. It teaches concepts and diagnosis; formal conformance needs approved specifications and test programs.

Why test disconnects?

Real systems lose links. The control response, indication and recovery are part of the design.

What evidence belongs in commissioning?

Topology, identities, configuration, mapped points, timing baseline, fault response and recovery results.
