3-Wire Motor Starter

A classic start/stop control circuit. A momentary START button pulls in the contactor, its own auxiliary contact keeps it on, and STOP breaks that holding path.

Why it exists

Make a motor stay on after START is released, stop reliably, and remain off after a power failure until an operator starts it again.

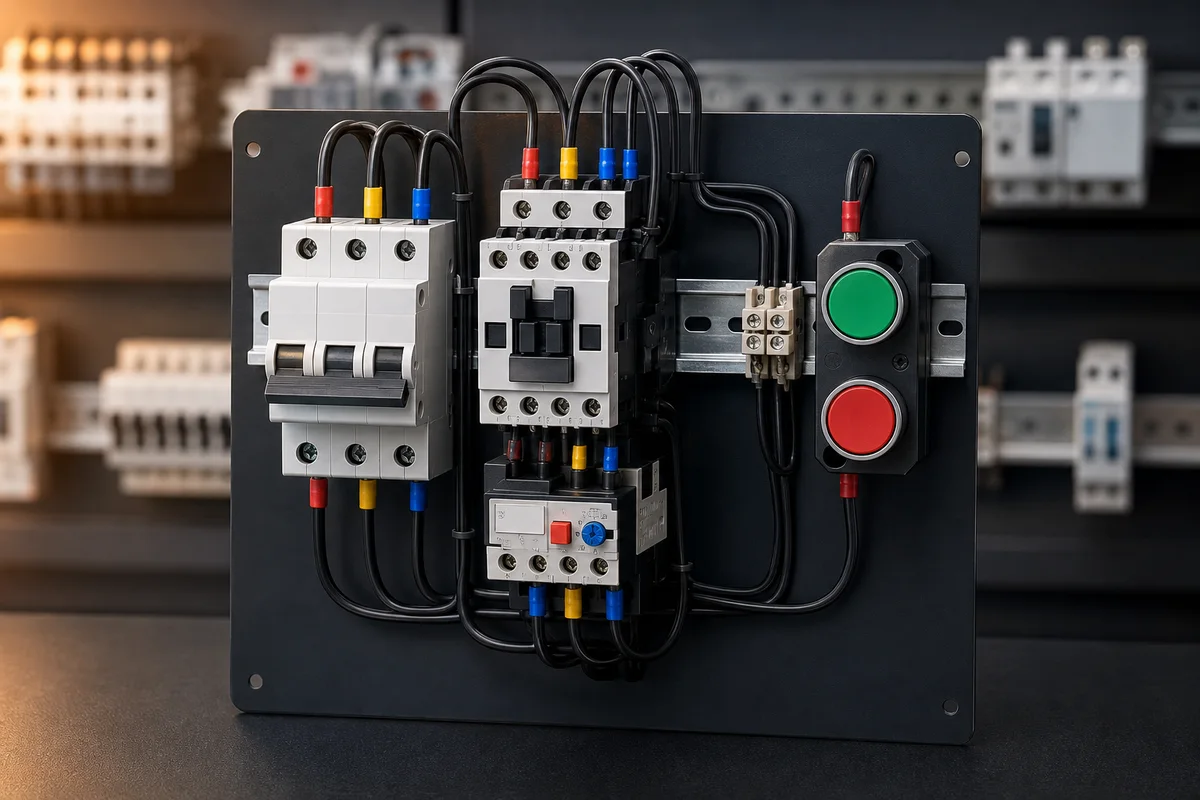

Three-wire motor starter panel with breaker, contactor, overload, start and stop buttons

Quick answer

What is a 3-wire motor starter?

A three-wire motor starter uses a normally-closed STOP path, a momentary normally-open START button and a contactor auxiliary contact wired as a seal-in branch. Pressing START energises the coil; the auxiliary contact then keeps the coil energised after START is released. Opening STOP, the overload contact or the control supply drops the coil and the circuit stays off when power returns.

Inside the control system

How the PLC relates to it

A PLC implementation should preserve the same safe state behaviour. STOP, E-stop and overload conditions are healthy-state permissives; START creates a run request; and loss of a required permissive removes that request. When a physical contactor is used, the program should distinguish MOTOR_RUN_CMD from CONTACTOR_FB and alarm if they disagree. Automatic restart after a power cycle or safety reset is normally undesirable unless the machine risk assessment and operating specification explicitly allow it.

Cause and effect

How it works, step by step

  1. 01

    Healthy STOP and overload contacts complete the control path.

  2. 02

    Pressing START briefly energises the contactor coil.

  3. 03

    The contactor auxiliary contact closes around START to seal in the coil.

  4. 04

    STOP, E-stop, overload, or lost power opens the path and drops the motor out.

01 / Open the case

Watch the mechanism do the work

Follow one highlighted causal link at a time, then operate the component and deliberately create the fault.

Unlock all interactive component labs

See plans

Know the terminals

  • STOP — NC
  • START — NO
  • 13–14 — seal-in auxiliary
  • A1 / A2 — contactor coil

Recognise the faults

  • Seal-in contact missing or miswired
  • STOP programmed with the wrong healthy-state assumption
  • Motor restarts automatically after power returns
  • Overload contact bypassed

Read the field guide

Go deeper on sizing, wiring conventions, test procedure, and the mistakes that damage equipment.

Open the complete guide

02 / Ask in context

Ask about this exact component

The Pro AI tutor receives this component’s mechanism, terminals, and common faults so its explanation stays grounded in the lab.

Selection checks

  • Control voltage and contactor coil rating.
  • Correct normally-closed STOP and overload contact use.
  • Auxiliary contact availability for seal-in and PLC feedback.
  • No-voltage release and restart behaviour required by the machine.
  • Short-circuit, overload, isolation and emergency-stop coordination.

Commissioning sequence

  1. 1With control power isolated, trace STOP and overload contacts in series with the contactor coil path.
  2. 2Press START and confirm the coil energises and the seal-in auxiliary contact closes around the momentary button.
  3. 3Release START and verify the contactor remains energised without relying on the button.
  4. 4Operate STOP, overload and E-stop individually and prove each one drops the coil.
  5. 5Cycle control power and confirm the motor remains off until a fresh start command is given.

Troubleshooting answers

Frequently asked questions

Why is it called a three-wire control circuit?

The traditional control station uses separate stop, start and holding paths rather than a maintained two-wire run command. The name describes the control method, not the three motor phases.

What is a seal-in contact?

It is a normally-open auxiliary contact that closes when the contactor energises and provides an alternate current path around the momentary START button.

Why does the motor stay off after a power failure?

Loss of power drops the contactor and opens its seal-in contact. When power returns, the momentary START path is still open, so a new deliberate start is required.

Now use it in a machine

Recognition is not mastery. Build the control logic, operate the process, and prove the fault response.

Build the complete starter

Free first success

Now control a 3-wire motor starter in a working machine

Move from recognition to PLC logic, feedback checks and fault recovery. The related guided exercise runs in your browser.

No installNo credit cardImmediate pass/fail feedback
