Two-Speed Motor Control

motortwo-speedinterlocksafety
Two-Speed Motor Control scenario preview

Ready to build this?

Sign up free — no credit card required. This scenario requires the Basic plan.

Sign up to play this scenario →

Already have an account? Log in

Briefing

A two-speed (Dahlander or separate windings) motor starter. HIGH_PB runs the motor at high speed; LOW_PB at low speed. The two contactors are interlocked — only one can be energised at a time. Changing speed requires pressing STOP_PB first (direct high-to-low or low-to-high switching is not permitted, preventing winding damage). ESTOP drops both contactors immediately.

Objectives

  • HIGH_PB seals in HIGH_CONTACTOR (while stopped and no fault)
  • LOW_PB seals in LOW_CONTACTOR (while stopped and no fault)
  • STOP_PB de-energises the active contactor
  • Direct speed change without STOP is inhibited — pressing HIGH while low is running does nothing
  • ESTOP drops both contactors and latches FAULT_LAMP
  • RUN_LAMP on while either speed is running

Hints

  • HIGH_BIT: S= by HIGH_PB AND /LOW_BIT; R= by STOP_PB or /ESTOP
  • LOW_BIT: S= by LOW_PB AND /HIGH_BIT; R= by STOP_PB or /ESTOP
  • HIGH_CONTACTOR := HIGH_BIT AND /FAULT_BIT; LOW_CONTACTOR := LOW_BIT AND /FAULT_BIT
  • FAULT_BIT: S= by /ESTOP; R= by STOP_PB AND ESTOP

I/O Table

Inputs

HIGH_PB

High speed push-button (momentary)

BOOL · %I0.0

LOW_PB

Low speed push-button (momentary)

BOOL · %I0.1

STOP_PB

Stop push-button (momentary)

BOOL · %I0.2

ESTOP

E-stop (NC — true=healthy)

BOOL · %I0.3

Outputs

HIGH_CONTACTOR

High-speed winding contactor coil

BOOL · %Q0.0

LOW_CONTACTOR

Low-speed winding contactor coil

BOOL · %Q0.1

RUN_LAMP

Running indicator lamp (either speed)

BOOL · %Q0.2

Your program will be tested against:

All test cases run automatically when you submit. Assertions are hidden until you pass.

  1. #1HIGH_PB seals in HIGH_CONTACTOR

    Momentary HIGH_PB seals in high-speed contactor; STOP drops it

  2. #2LOW_PB seals in LOW_CONTACTOR

    Momentary LOW_PB seals in low-speed contactor

  3. #3Cannot switch from high to low without STOP first

    Pressing LOW_PB while HIGH is running is inhibited — must STOP first

  4. #4ESTOP drops both contactors and latches fault

    E-stop de-energises all and latches fault; STOP_PB clears after ESTOP restored

Ready to build this?

Sign up free — no credit card required. This scenario requires the Basic plan.

Sign up to play this scenario →

Already have an account? Log in

Runnable simulator field guide

Two-speed motor PLC scenario: implementation, evidence and troubleshooting

Direct answer

Two-speed motor PLC scenario becomes useful when it connects motor and load, low and high requests, mode, stop priority, permissives, speed contactors or drive command, transition delay, feedback and overload state with operator request through selection, interlocks and final output owner to starter or drive, motor speed and independent feedback, then proves each speed runs separately, stop removes both commands and a speed change follows the declared transition without overlap under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for pLC and motor-control learners sequencing low and high speed with mutually exclusive commands and independent running evidence. The intended result is specific: the learner can prove stop priority, prevent overlapping speed outputs, transition through the declared stopped state and diagnose failed feedback.

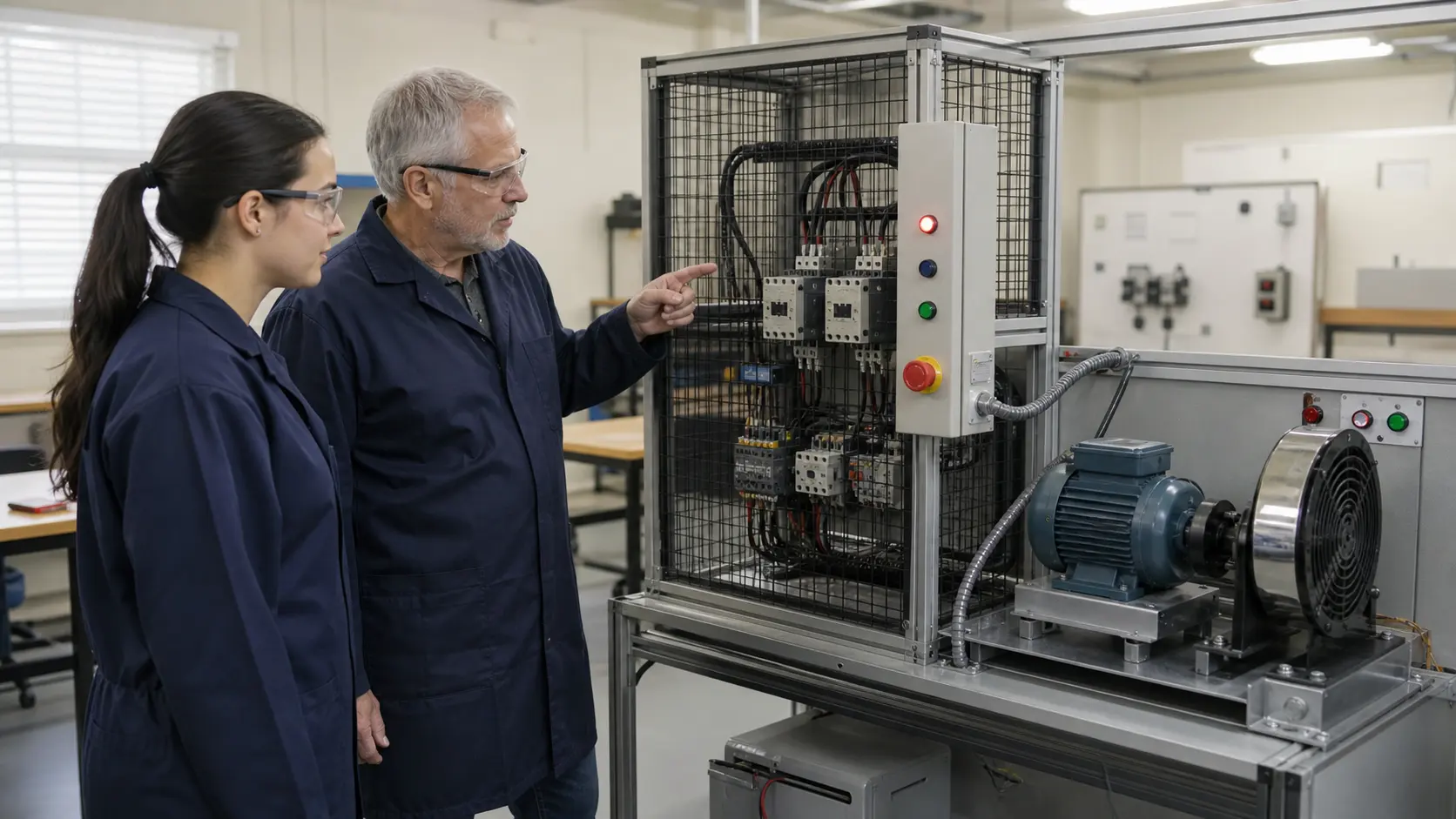

a guarded motor-control training cell with two-speed starter equipment, feedback and protective devices used for safe sequence verification while studying two-speed motor selection, mutual interlock, transition delay and feedback
The training scene connects two-speed motor selection, mutual interlock, transition delay and feedback to a declared initial state, inspectable boundaries, safe limits and repeatable acceptance evidence.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

motor and load, low and high requests, mode, stop priority, permissives, speed contactors or drive command, transition delay, feedback and overload state. For two-speed motor selection, mutual interlock, transition delay and feedback, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

operator request through selection, interlocks and final output owner to starter or drive, motor speed and independent feedback. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

each speed runs separately, Stop removes both commands and a speed change follows the declared transition without overlap. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

both requests, high selected from standstill, change while running, welded contact, failed feedback, overload, held start, power loss and restart. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a request, priority, selection, state, interlock, output, starter, drive, motor or feedback mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

the logic validated with the exact motor, switching arrangement, protection and manufacturer transition rules. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert motor and load, low and high requests, mode, stop priority, permissives, speed contactors or drive command, transition delay, feedback and overload state into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document operator request through selection, interlocks and final output owner to starter or drive, motor speed and independent feedback and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply each speed runs separately, stop removes both commands and a speed change follows the declared transition without overlap from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test both requests, high selected from standstill, change while running, welded contact, failed feedback, overload, held start, power loss and restart without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a request, priority, selection, state, interlock, output, starter, drive, motor or feedback mismatch and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete the logic validated with the exact motor, switching arrangement, protection and manufacturer transition rules and repeat the affected regression cases.

    Evidence: A run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Two-speed motor PLC scenario: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe operator, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The browser runtime joins editable control state to visible I/O and machine or process behavior, allowing the same initial conditions and stimuli to be replayed.

Where simulation stops

The model does not determine motor winding type, starter topology, protection, braking, permissible transitions, guarding or functional safety.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. motor and load, low and high requests, mode, stop priority, permissives, speed contactors or drive command, transition delay, feedback and overload state. For two-speed motor selection, mutual interlock, transition delay and feedback, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert motor and load, low and high requests, mode, stop priority, permissives, speed contactors or drive command, transition delay, feedback and overload state into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the operator, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Can low-speed and high-speed contactors energize together? A defensible short answer is: Not unless the exact equipment is specifically designed for that state; typical two-speed control requires electrical, mechanical and software prevention of invalid overlap.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. operator request through selection, interlocks and final output owner to starter or drive, motor speed and independent feedback. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document operator request through selection, interlocks and final output owner to starter or drive, motor speed and independent feedback and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How should a PLC change motor speed? A defensible short answer is: Follow the approved motor or drive method, often removing the current command, proving the required transition state and then enabling the new speed after a bounded delay.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. each speed runs separately, Stop removes both commands and a speed change follows the declared transition without overlap. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply each speed runs separately, stop removes both commands and a speed change follows the declared transition without overlap from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about two-speed motor selection, mutual interlock, transition delay and feedback? A defensible short answer is: Start with the operating contract and evidence path: motor and load, low and high requests, mode, stop priority, permissives, speed contactors or drive command, transition delay, feedback and overload state, followed by operator request through selection, interlocks and final output owner to starter or drive, motor speed and independent feedback. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. both requests, high selected from standstill, change while running, welded contact, failed feedback, overload, held start, power loss and restart. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test both requests, high selected from standstill, change while running, welded contact, failed feedback, overload, held start, power loss and restart without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise two-speed motor selection, mutual interlock, transition delay and feedback effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a request, priority, selection, state, interlock, output, starter, drive, motor or feedback mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a request, priority, selection, state, interlock, output, starter, drive, motor or feedback mismatch and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. the logic validated with the exact motor, switching arrangement, protection and manufacturer transition rules. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete the logic validated with the exact motor, switching arrangement, protection and manufacturer transition rules and repeat the affected regression cases. The acceptance record should show this result: a run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a request, priority, selection, state, interlock, output, starter, drive, motor or feedback mismatch or both requests, high selected from standstill, change while running, welded contact, failed feedback, overload, held start, power loss and restart can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about Two-speed motor PLC scenario

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

Can low-speed and high-speed contactors energize together?

Not unless the exact equipment is specifically designed for that state; typical two-speed control requires electrical, mechanical and software prevention of invalid overlap.

How should a PLC change motor speed?

Follow the approved motor or drive method, often removing the current command, proving the required transition state and then enabling the new speed after a bounded delay.

What should I learn first about two-speed motor selection, mutual interlock, transition delay and feedback?

Start with the operating contract and evidence path: motor and load, low and high requests, mode, stop priority, permissives, speed contactors or drive command, transition delay, feedback and overload state, followed by operator request through selection, interlocks and final output owner to starter or drive, motor speed and independent feedback. Add advanced features only after the baseline is predictable.

How do I practise two-speed motor selection, mutual interlock, transition delay and feedback effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a request, priority, selection, state, interlock, output, starter, drive, motor or feedback mismatch or both requests, high selected from standstill, change while running, welded contact, failed feedback, overload, held start, power loss and restart can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.
