Variable Frequency Drive

An electronic motor controller that turns fixed mains power into adjustable-frequency power so an AC motor can run at different speeds.

Why it exists

Control speed and torque smoothly, reduce starting current, and expose motor diagnostics to the PLC.

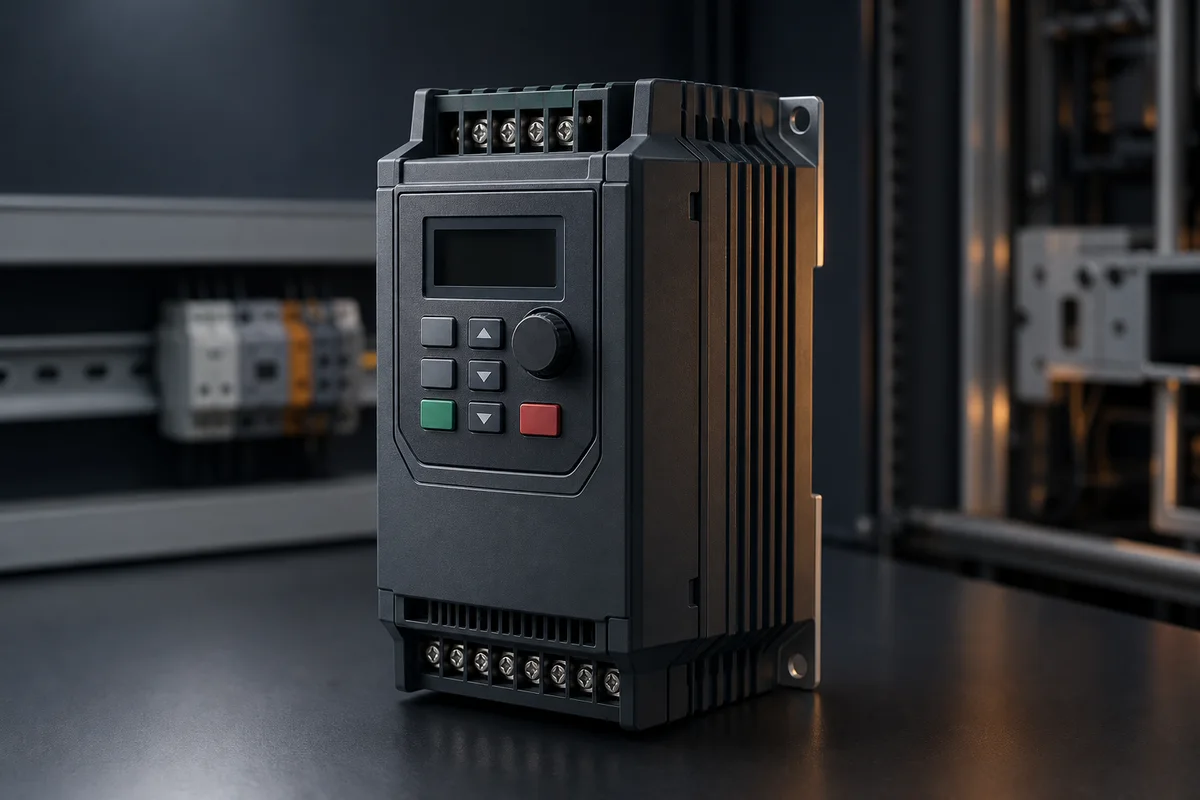

Compact industrial variable frequency drive with keypad, display and power terminals

Quick answer

What is a variable frequency drive?

A variable frequency drive controls an AC motor by converting incoming AC to DC, smoothing it on a DC bus, and switching that DC through an inverter to create a variable-frequency, variable-voltage three-phase output. The PLC can send run, direction and speed commands while reading ready, running, current and fault status.

Inside the control system

How the PLC relates to it

A simple installation uses digital inputs for run and direction plus an analog or pulse reference for speed. A networked drive can exchange commands, reference values, status words, actual speed and fault codes over an industrial protocol. Whichever interface is used, define where control comes from, scale engineering units explicitly, separate normal stop from safety functions, and decide what the sequence should do if communication or feedback is lost. The motor leads belong on U, V and W; switching contactors on the drive output while it is running can damage equipment.

Cause and effect

How it works, step by step

  1. 01

    A rectifier converts incoming AC to DC.

  2. 02

    Capacitors smooth and store energy on the DC bus.

  3. 03

    Fast power transistors rebuild a variable-frequency three-phase waveform.

  4. 04

    Motor speed follows commanded frequency while protection monitors current and voltage.

01 / Open the case

Watch the mechanism do the work

Follow one highlighted causal link at a time, then operate the component and deliberately create the fault.

Unlock all interactive component labs

See plans

Know the terminals

  • L1 L2 L3 — supply
  • U V W — motor
  • +24 V / DI / COM — control
  • Network port — PLC comms

Recognise the faults

  • Motor data not commissioned
  • Ramp too short causes overcurrent
  • Incorrect control source
  • Unsafe isolation of charged DC bus

Read the field guide

Go deeper on sizing, wiring conventions, test procedure, and the mistakes that damage equipment.

Open the complete guide

02 / Ask in context

Ask about this exact component

The Pro AI tutor receives this component’s mechanism, terminals, and common faults so its explanation stays grounded in the lab.

Selection checks

  • Supply voltage, phase and available fault current.
  • Motor current, overload duty and required speed range.
  • Load type: variable torque, constant torque or regenerative.
  • Braking resistor, line reactor, EMC filtering and cable-length requirements.
  • Control I/O, safety functions and communication protocol.

Commissioning sequence

  1. 1Record the motor nameplate voltage, current, frequency, speed and power before entering motor data.
  2. 2Confirm supply, motor, protective-earth and control wiring against the drive manual.
  3. 3Select the intended command source and speed-reference source; do not leave local keypad control active by accident.
  4. 4Test direction at low frequency with the machine uncoupled or otherwise made safe.
  5. 5Prove acceleration, deceleration, current limit, stop behaviour and representative fault recovery under load.

Troubleshooting answers

Frequently asked questions

Does a VFD reduce motor voltage as well as frequency?

Yes. The drive coordinates output voltage and frequency to maintain appropriate motor flux, then applies its control method and current limits across the operating range.

Can a VFD be used as an emergency stop?

A normal run command is not a safety function. Safety designs may use certified Safe Torque Off or external isolation as required by the risk assessment and drive documentation.

Why does a VFD trip during deceleration?

A fast-ramping load can regenerate energy into the DC bus and cause overvoltage. A longer ramp, suitable braking method or regenerative drive may be required.

Now use it in a machine

Recognition is not mastery. Build the control logic, operate the process, and prove the fault response.

Commission a conveyor drive

Free first success

Now control a variable frequency drive in a working machine

Move from recognition to PLC logic, feedback checks and fault recovery. The related guided exercise runs in your browser.

No installNo credit cardImmediate pass/fail feedback

Technical reference and worked-example guide

Variable-frequency drive component guide: implementation, evidence and troubleshooting

Direct answer

Variable-frequency drive component guide becomes useful when it connects input supply, rectifier, dc bus, inverter, motor data, control source, speed reference, acceleration and deceleration, current limit, braking, sto, feedback and fault history with supply and command through source selection, internal drive state, modulated output, motor torque and speed, machine load and independent feedback, then proves a bounded start reaches the requested speed and load, stops predictably and records healthy ready, running and feedback states under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for pLC and maintenance learners understanding what a VFD controls and how power, commands, references, motor data and diagnostics interact. The intended result is specific: the reader can trace one run and speed request through the drive to motor response and separate source selection, trip, STO, motor and process faults.

a guarded motor-control training cell used to commission contactors, protection, a variable-frequency drive and independent speed feedback while studying VFD power, control, reference, protection and feedback boundaries
The scene connects VFD power, control, reference, protection and feedback boundaries to declared conditions, safe boundaries, observable evidence and a repeatable result.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

input supply, rectifier, DC bus, inverter, motor data, control source, speed reference, acceleration and deceleration, current limit, braking, STO, feedback and fault history. For VFD power, control, reference, protection and feedback boundaries, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

supply and command through source selection, internal drive state, modulated output, motor torque and speed, machine load and independent feedback. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

a bounded start reaches the requested speed and load, stops predictably and records healthy ready, running and feedback states. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

zero reference, source conflict, overcurrent, undervoltage, overload, motor mismatch, rapid deceleration, STO demand, feedback loss and power return. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a supply, protection, command, reference, parameter, drive, motor, mechanical, feedback or process mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

the drive sized, wired, parameterized and commissioned on the target motor and machine under approved procedures. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert input supply, rectifier, dc bus, inverter, motor data, control source, speed reference, acceleration and deceleration, current limit, braking, sto, feedback and fault history into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document supply and command through source selection, internal drive state, modulated output, motor torque and speed, machine load and independent feedback and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply a bounded start reaches the requested speed and load, stops predictably and records healthy ready, running and feedback states from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test zero reference, source conflict, overcurrent, undervoltage, overload, motor mismatch, rapid deceleration, sto demand, feedback loss and power return without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a supply, protection, command, reference, parameter, drive, motor, mechanical, feedback or process mismatch and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete the drive sized, wired, parameterized and commissioned on the target motor and machine under approved procedures and repeat the affected regression cases.

    Evidence: Reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Variable-frequency drive component guide: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe technician, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The page connects definitions and worked examples to runnable tools, explicit assumptions and repeatable checks so a formula or pattern can be challenged.

Where simulation stops

A generic guide cannot size, install or commission a drive or validate motor, cable, EMC, protection or safety; the current manuals and engineering design govern.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. input supply, rectifier, DC bus, inverter, motor data, control source, speed reference, acceleration and deceleration, current limit, braking, STO, feedback and fault history. For VFD power, control, reference, protection and feedback boundaries, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert input supply, rectifier, dc bus, inverter, motor data, control source, speed reference, acceleration and deceleration, current limit, braking, sto, feedback and fault history into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the technician, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What does a VFD do? A defensible short answer is: It converts incoming electrical power into controlled motor voltage and frequency so torque and speed can be managed within drive, motor and process limits.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. supply and command through source selection, internal drive state, modulated output, motor torque and speed, machine load and independent feedback. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document supply and command through source selection, internal drive state, modulated output, motor torque and speed, machine load and independent feedback and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What must a PLC send to a VFD? A defensible short answer is: The contract may include enable or run command, direction, speed reference and reset, while ready, running, speed, current and fault feedback provide evidence.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. a bounded start reaches the requested speed and load, stops predictably and records healthy ready, running and feedback states. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply a bounded start reaches the requested speed and load, stops predictably and records healthy ready, running and feedback states from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about VFD power, control, reference, protection and feedback boundaries? A defensible short answer is: Start with the operating contract and evidence path: input supply, rectifier, dc bus, inverter, motor data, control source, speed reference, acceleration and deceleration, current limit, braking, sto, feedback and fault history, followed by supply and command through source selection, internal drive state, modulated output, motor torque and speed, machine load and independent feedback. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. zero reference, source conflict, overcurrent, undervoltage, overload, motor mismatch, rapid deceleration, STO demand, feedback loss and power return. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test zero reference, source conflict, overcurrent, undervoltage, overload, motor mismatch, rapid deceleration, sto demand, feedback loss and power return without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise VFD power, control, reference, protection and feedback boundaries effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a supply, protection, command, reference, parameter, drive, motor, mechanical, feedback or process mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a supply, protection, command, reference, parameter, drive, motor, mechanical, feedback or process mismatch and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. the drive sized, wired, parameterized and commissioned on the target motor and machine under approved procedures. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete the drive sized, wired, parameterized and commissioned on the target motor and machine under approved procedures and repeat the affected regression cases. The acceptance record should show this result: reference use is complete when inputs, assumptions, units or initial conditions are recorded and the result is independently checked at a useful boundary. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a supply, protection, command, reference, parameter, drive, motor, mechanical, feedback or process mismatch or zero reference, source conflict, overcurrent, undervoltage, overload, motor mismatch, rapid deceleration, sto demand, feedback loss and power return can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about Variable-frequency drive component guide

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What does a VFD do?

It converts incoming electrical power into controlled motor voltage and frequency so torque and speed can be managed within drive, motor and process limits.

What must a PLC send to a VFD?

The contract may include enable or run command, direction, speed reference and reset, while ready, running, speed, current and fault feedback provide evidence.

What should I learn first about VFD power, control, reference, protection and feedback boundaries?

Start with the operating contract and evidence path: input supply, rectifier, dc bus, inverter, motor data, control source, speed reference, acceleration and deceleration, current limit, braking, sto, feedback and fault history, followed by supply and command through source selection, internal drive state, modulated output, motor torque and speed, machine load and independent feedback. Add advanced features only after the baseline is predictable.

How do I practise VFD power, control, reference, protection and feedback boundaries effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a supply, protection, command, reference, parameter, drive, motor, mechanical, feedback or process mismatch or zero reference, source conflict, overcurrent, undervoltage, overload, motor mismatch, rapid deceleration, sto demand, feedback loss and power return can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.
