CIP Sequence Controller

sequencefood-beverageciptimersprocess
CIP Sequence Controller scenario preview

Ready to build this?

Sign up free — no credit card required. This scenario requires the Basic plan.

Sign up to play this scenario →

Already have an account? Log in

Briefing

Clean-in-Place (CIP) is a fully automated cleaning sequence used in food and beverage processing. Your controller must step a vessel through five cleaning stages — Pre-Rinse, Caustic wash, Intermediate Rinse, Acid wash, and Final Rinse — each timed precisely. The pump and heater must be managed correctly per stage, and the FLOW_OK and TEMP_OK process interlocks must be satisfied before the cycle is considered healthy. Pressing STOP_PB at any time aborts the sequence and returns to IDLE.

Objectives

  • START_PB begins the sequence from IDLE
  • PRE_RINSE (3 s): open VALVE_RINSE + run PUMP_RUN
  • CAUSTIC (6 s): open VALVE_CAUSTIC + run PUMP_RUN + HEATER_ON
  • INTERMEDIATE_RINSE (3 s): open VALVE_RINSE + run PUMP_RUN
  • ACID (4.5 s): open VALVE_ACID + run PUMP_RUN + HEATER_ON
  • FINAL_RINSE (3 s): open VALVE_RINSE + run PUMP_RUN, then assert CYCLE_COMPLETE_LAMP
  • STOP_PB aborts the sequence at any stage and closes all outputs
  • FAULT_LAMP asserts if pump stops unexpectedly during an active stage

Hints

  • Use a step counter (INT) or a chain of latching bits: STEP_PRE_RINSE, STEP_CAUSTIC …
  • Use TON timers — one per step, chained so the Q output advances to the next step
  • VALVE_RINSE := STEP_PRE_RINSE OR STEP_INTERMEDIATE_RINSE OR STEP_FINAL_RINSE
  • HEATER_ON := STEP_CAUSTIC OR STEP_ACID; only these steps need TEMP_OK satisfied
  • CYCLE_COMPLETE_LAMP latches SET at the end of FINAL_RINSE; R= on START_PB

I/O Table

Inputs

START_PB

Start push-button

BOOL · %I0.0

STOP_PB

Stop / abort push-button

BOOL · %I0.1

FLOW_OK

Flow switch (asserts ~0.5 s after pump+valve)

BOOL · %I0.2

TEMP_OK

Temperature at setpoint (asserts ~1 s after heater on)

BOOL · %I0.3

Outputs

VALVE_RINSE

Rinse water supply valve

BOOL · %Q0.0

VALVE_CAUSTIC

Caustic solution valve

BOOL · %Q0.1

VALVE_ACID

Acid solution valve

BOOL · %Q0.2

PUMP_RUN

Circulation pump

BOOL · %Q0.3

HEATER_ON

Tank heater (caustic + acid stages)

BOOL · %Q0.4

CYCLE_COMPLETE_LAMP

Cycle complete indicator lamp

BOOL · %Q0.5

FAULT_LAMP

Fault indicator lamp

BOOL · %Q0.6

Your program will be tested against:

All test cases run automatically when you submit. Assertions are hidden until you pass.

  1. #1START_PB opens VALVE_RINSE and runs pump (PRE_RINSE)

    Press START_PB; VALVE_RINSE and PUMP_RUN must assert; no caustic or acid valve

  2. #2CAUSTIC step opens VALVE_CAUSTIC + HEATER_ON

    After PRE_RINSE completes, VALVE_CAUSTIC and HEATER_ON must be on

  3. #3Lost flow during an active wash latches FAULT_LAMP

    Start pre-rinse, then force FLOW_OK false after it had settled; the fault indicator must latch

  4. #4CYCLE_COMPLETE_LAMP asserts after all steps finish

    Run the full sequence; CYCLE_COMPLETE_LAMP should assert at end

  5. #5STOP_PB aborts mid-sequence and closes all outputs

    Start the sequence, press STOP during PRE_RINSE; all outputs must go off

  6. #6ACID step opens VALVE_ACID and runs heater

    After pre-rinse + caustic + intermediate rinse, VALVE_ACID and HEATER_ON must be on

Ready to build this?

Sign up free — no credit card required. This scenario requires the Basic plan.

Sign up to play this scenario →

Already have an account? Log in

Runnable simulator field guide

Clean-in-place PLC sequence scenario: implementation, evidence and troubleshooting

Direct answer

Clean-in-place PLC sequence scenario becomes useful when it connects equipment boundary, recipe phases, route selection, valve matrix, pump permissives, flow, temperature, concentration or conductivity, time, drain state and hold policy with operator request through route confirmation, phase state, valve commands, pump command, process proofs, completion criteria, record and next phase, then proves each phase starts only with the declared route and proofs, meets its completion criteria and transitions once under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for process-control learners implementing pre-rinse, chemical circulation, intermediate rinse and final rinse states with verified routes and conditions. The intended result is specific: the learner can define every phase transition, prove valve and pump paths, handle missing temperature, flow or conductivity evidence and return safely from a held sequence.

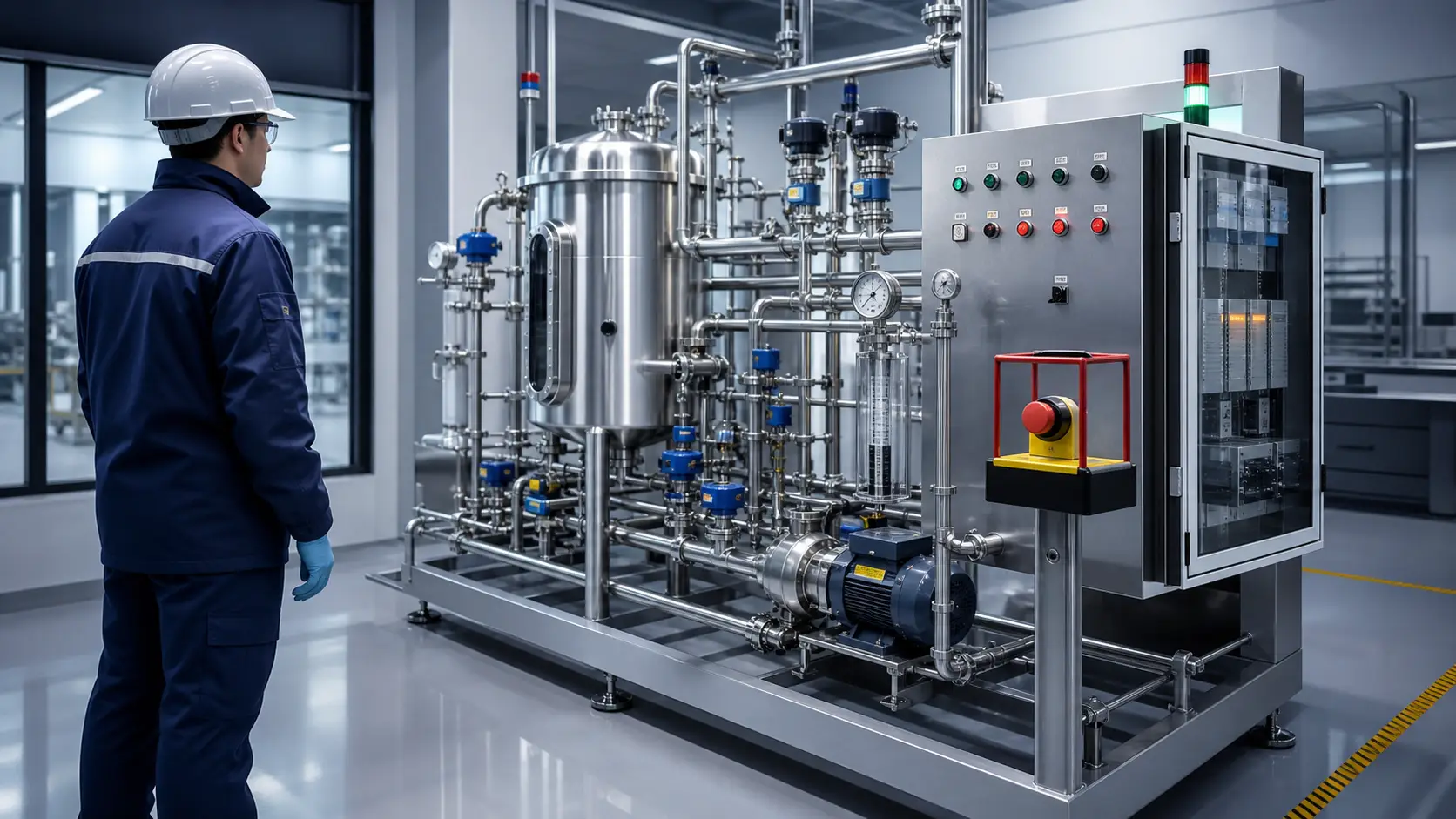

a guarded stainless process training skid used to validate clean-in-place and emergency-shutdown sequence states, instruments and feedback while studying CIP phase sequencing, permissives, proof, hold and recovery
The scene connects CIP phase sequencing, permissives, proof, hold and recovery to declared conditions, safe boundaries, observable evidence and a repeatable result.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

equipment boundary, recipe phases, route selection, valve matrix, pump permissives, flow, temperature, concentration or conductivity, time, drain state and hold policy. For CIP phase sequencing, permissives, proof, hold and recovery, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

operator request through route confirmation, phase state, valve commands, pump command, process proofs, completion criteria, record and next phase. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

each phase starts only with the declared route and proofs, meets its completion criteria and transitions once. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

empty supply, wrong route, failed valve feedback, no flow, low temperature, concentration drift, pause, abort, restart and recovery. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a recipe, state, route, valve, pump, instrument, timer, completion, hold or record mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

the sequence reviewed against current process, equipment, chemical, safety and quality requirements and witnessed on target. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert equipment boundary, recipe phases, route selection, valve matrix, pump permissives, flow, temperature, concentration or conductivity, time, drain state and hold policy into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document operator request through route confirmation, phase state, valve commands, pump command, process proofs, completion criteria, record and next phase and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply each phase starts only with the declared route and proofs, meets its completion criteria and transitions once from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test empty supply, wrong route, failed valve feedback, no flow, low temperature, concentration drift, pause, abort, restart and recovery without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a recipe, state, route, valve, pump, instrument, timer, completion, hold or record mismatch and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete the sequence reviewed against current process, equipment, chemical, safety and quality requirements and witnessed on target and repeat the affected regression cases.

    Evidence: A run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Clean-in-place PLC sequence scenario: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe operator, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The browser runtime joins editable control state to visible I/O and machine or process behavior, allowing the same initial conditions and stimuli to be replayed.

Where simulation stops

The scenario is educational and cannot specify chemicals, exposure controls, hygienic design, validation sampling, equipment limits or a production cleaning recipe.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. equipment boundary, recipe phases, route selection, valve matrix, pump permissives, flow, temperature, concentration or conductivity, time, drain state and hold policy. For CIP phase sequencing, permissives, proof, hold and recovery, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert equipment boundary, recipe phases, route selection, valve matrix, pump permissives, flow, temperature, concentration or conductivity, time, drain state and hold policy into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the operator, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What is a CIP sequence? A defensible short answer is: It is a controlled progression of cleaning phases with defined routes, media, flow, temperature, concentration, timing, proof and records.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. operator request through route confirmation, phase state, valve commands, pump command, process proofs, completion criteria, record and next phase. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document operator request through route confirmation, phase state, valve commands, pump command, process proofs, completion criteria, record and next phase and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why should CIP transitions use proof instead of time alone? A defensible short answer is: Time cannot confirm the intended route, flow, temperature or chemistry; phase completion should use the evidence required by the validated process.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. each phase starts only with the declared route and proofs, meets its completion criteria and transitions once. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply each phase starts only with the declared route and proofs, meets its completion criteria and transitions once from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about CIP phase sequencing, permissives, proof, hold and recovery? A defensible short answer is: Start with the operating contract and evidence path: equipment boundary, recipe phases, route selection, valve matrix, pump permissives, flow, temperature, concentration or conductivity, time, drain state and hold policy, followed by operator request through route confirmation, phase state, valve commands, pump command, process proofs, completion criteria, record and next phase. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. empty supply, wrong route, failed valve feedback, no flow, low temperature, concentration drift, pause, abort, restart and recovery. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test empty supply, wrong route, failed valve feedback, no flow, low temperature, concentration drift, pause, abort, restart and recovery without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise CIP phase sequencing, permissives, proof, hold and recovery effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a recipe, state, route, valve, pump, instrument, timer, completion, hold or record mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a recipe, state, route, valve, pump, instrument, timer, completion, hold or record mismatch and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. the sequence reviewed against current process, equipment, chemical, safety and quality requirements and witnessed on target. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete the sequence reviewed against current process, equipment, chemical, safety and quality requirements and witnessed on target and repeat the affected regression cases. The acceptance record should show this result: a run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a recipe, state, route, valve, pump, instrument, timer, completion, hold or record mismatch or empty supply, wrong route, failed valve feedback, no flow, low temperature, concentration drift, pause, abort, restart and recovery can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about Clean-in-place PLC sequence scenario

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

What is a CIP sequence?

It is a controlled progression of cleaning phases with defined routes, media, flow, temperature, concentration, timing, proof and records.

Why should CIP transitions use proof instead of time alone?

Time cannot confirm the intended route, flow, temperature or chemistry; phase completion should use the evidence required by the validated process.

What should I learn first about CIP phase sequencing, permissives, proof, hold and recovery?

Start with the operating contract and evidence path: equipment boundary, recipe phases, route selection, valve matrix, pump permissives, flow, temperature, concentration or conductivity, time, drain state and hold policy, followed by operator request through route confirmation, phase state, valve commands, pump command, process proofs, completion criteria, record and next phase. Add advanced features only after the baseline is predictable.

How do I practise CIP phase sequencing, permissives, proof, hold and recovery effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a recipe, state, route, valve, pump, instrument, timer, completion, hold or record mismatch or empty supply, wrong route, failed valve feedback, no flow, low temperature, concentration drift, pause, abort, restart and recovery can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.
