Light Curtain Muting

safetymutinglight-curtaintimingfault-latch
Light Curtain Muting scenario preview

Ready to build this?

Sign up free — no credit card required. This scenario requires the Basic plan.

Sign up to play this scenario →

Already have an account? Log in

Briefing

This training simulation demonstrates the observable sequence and timing concepts used by one example of two-sensor light-curtain muting. It is not a safety function or deployable machine-safety program. On real equipment, muting must be configured in a safety-rated controller or device using the manufacturer-approved sensor arrangement, required sequence, timing and maximum mute duration, discrepancy and fault monitoring, guarded reset, and validation derived from the machine risk assessment. Here, LIGHT_CURTAIN_OK, MUTE_A and MUTE_B let you study expected behaviour: A then B within 2 seconds creates the simulated mute window; simultaneous, reversed, or late activation creates a simulated fault.

Objectives

  • MACHINE_ENABLE is on while LIGHT_CURTAIN_OK is true and no fault is latched
  • Beam break (LIGHT_CURTAIN_OK = false) without valid muting → latch SAFETY_FAULT_LATCH
  • Valid mute: MUTE_A then MUTE_B, ≥50 ms apart, within 2 s — MUTE_LAMP asserts during the muted window
  • MUTE_LAMP stays on as long as both mute sensors are active and the sequence was valid
  • Invalid mute (simultaneous, reversed, or timeout) → latch SAFETY_FAULT_LATCH
  • RESET_PB clears SAFETY_FAULT_LATCH only when LIGHT_CURTAIN_OK is true and no mute is active
  • Treat every output as a training signal only; a safety-rated device must control real safety outputs and final elements after risk assessment and validation

Hints

  • Use R_TRIG on MUTE_A to detect its rising edge; latch MUTE_A_BIT
  • Start a TON (2 s) on MUTE_A rising edge — if it expires before MUTE_B asserts, fault
  • Check MUTE_A_BIT AND NOT MUTE_B_PREV on MUTE_B rising edge for reverse-order guard
  • MUTE_VALID := MUTE_A_BIT AND MUTE_B (both asserted, valid sequence)
  • MACHINE_ENABLE := LIGHT_CURTAIN_OK AND /SAFETY_FAULT_LATCH; or bypass OK when MUTE_VALID

I/O Table

Inputs

LIGHT_CURTAIN_OK

Light curtain OK (true = clear, false = blocked)

BOOL · %I0.0

MUTE_A

Mute sensor A (first in sequence)

BOOL · %I0.1

MUTE_B

Mute sensor B (second in sequence, within 2 s)

BOOL · %I0.2

START_PB

Machine start push-button

BOOL · %I0.3

RESET_PB

Fault reset push-button

BOOL · %I0.4

Outputs

MACHINE_ENABLE

Machine run enable output

BOOL · %Q0.0

SAFETY_FAULT_LATCH

Safety fault (latching)

BOOL · %Q0.1

MUTE_LAMP

Mute active indicator lamp

BOOL · %Q0.2

Your program will be tested against:

All test cases run automatically when you submit. Assertions are hidden until you pass.

  1. #1Machine enables when curtain OK and started

    With LC clear and START_PB, MACHINE_ENABLE asserts and no fault

  2. #2Beam break without muting latches SAFETY_FAULT_LATCH

    LC blocked with no valid mute → fault latches; releasing LC does not clear

  3. #3Valid mute sequence allows curtain block without fault

    MUTE_A then MUTE_B within 2s, then LC blocked — no fault, MUTE_LAMP on

  4. #4Simultaneous MUTE_A + MUTE_B latches fault

    Both mute sensors asserted at same time is an invalid mute — fault latches

  5. #5MUTE_B before MUTE_A latches fault

    Reversed order is an invalid mute — SAFETY_FAULT_LATCH must latch

Ready to build this?

Sign up free — no credit card required. This scenario requires the Basic plan.

Sign up to play this scenario →

Already have an account? Log in

Runnable simulator field guide

Light-curtain muting sequence scenario: implementation, evidence and troubleshooting

Direct answer

Light-curtain muting sequence scenario becomes useful when it connects simulated material path, protective field, mute sensors, expected direction, sequence states, transition timeouts, maximum mute, fault state, indication, reset eligibility and restart separation with sensor pattern through explicit state and time guards to mute request, protective-field status, machine permission, fault latch, clearance and deliberate recovery, then proves each valid pattern enters and exits the mute once while invalid patterns reach a defined faulted or protected state under normal, boundary, fault and recovery conditions. The objective is a repeatable engineering or learning result, not merely activity inside a page or tool.

This guide is written for pLC and safety learners examining state, timers and sensor patterns around a simulated material-transfer muting case. The intended result is specific: the learner can draw the complete state model, test every permitted and rejected sensor order and explain why acknowledgement cannot substitute for hazard clearance.

a guarded motor-control and machine-safety training cell used to prove starter, drive, interlock, stop, feedback and restart behavior while studying muting-state logic, sequence evidence and controlled recovery
The field scene connects muting-state logic, sequence evidence and controlled recovery to declared initial conditions, observable boundaries, safe limits and repeatable acceptance evidence.

System map / 02

Six concepts that control the result

Treat these as connected checkpoints. Each checkpoint has an expected state, an observable state and a boundary to the next part of the system. That structure prevents a software indication from being mistaken for physical proof.

NODE 01observable

Define the operating contract

simulated material path, protective field, mute sensors, expected direction, sequence states, transition timeouts, maximum mute, fault state, indication, reset eligibility and restart separation. For muting-state logic, sequence evidence and controlled recovery, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation.

NODE 02observable

Map the evidence path

sensor pattern through explicit state and time guards to mute request, protective-field status, machine permission, fault latch, clearance and deliberate recovery. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected.

NODE 03observable

Prove normal operation

each valid pattern enters and exits the mute once while invalid patterns reach a defined faulted or protected state. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability.

NODE 04observable

Exercise a boundary case

reverse order, overlap, missing sensor, blocked field, excessive duration, simultaneous change, device discrepancy, reset during demand and power return. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path.

NODE 05observable

Diagnose a controlled fault

a model, sensor, state, transition, timer, mute, protective-field, fault, reset or restart mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result.

NODE 06observable

Transfer and hand over

the educational result kept separate from a qualified design and validation of the target safety function. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment.

Procedure / 03

A six-step practice and commissioning workflow

Run the steps in order the first time. Later, the same structure becomes a diagnostic loop: define the expected condition, observe the boundary, interpret the difference and choose one proving action.

  1. 01

    Write the acceptance case

    Convert simulated material path, protective field, mute sensors, expected direction, sequence states, transition timeouts, maximum mute, fault state, indication, reset eligibility and restart separation into initial conditions, one stimulus and observable pass criteria.

    Evidence: Another person can repeat the case without guessing the intended result.

    Avoid: Using page completion or an animation as the acceptance criterion.

  2. 02

    Build the map

    Document sensor pattern through explicit state and time guards to mute request, protective-field status, machine permission, fault latch, clearance and deliberate recovery and name who owns each state or decision.

    Evidence: Every request and result has a source, destination and useful inspection point.

    Avoid: Using the same value as command, status and independent feedback.

  3. 03

    Run the baseline

    Apply each valid pattern enters and exits the mute once while invalid patterns reach a defined faulted or protected state from a clean start and record the expected evidence.

    Evidence: Repeated runs produce the same bounded result.

    Avoid: Changing several parameters before a baseline exists.

  4. 04

    Challenge assumptions

    Test reverse order, overlap, missing sensor, blocked field, excessive duration, simultaneous change, device discrepancy, reset during demand and power return without changing the acceptance contract.

    Evidence: Limits, timing and restart behavior reach defined states.

    Avoid: Testing only one ideal sequence.

  5. 05

    Isolate one failure

    Introduce or analyse a model, sensor, state, transition, timer, mute, protective-field, fault, reset or restart mismatch and locate the first disagreement.

    Evidence: The proving action distinguishes the leading hypotheses.

    Avoid: Resetting, forcing or replacing before evidence is retained.

  6. 06

    Close the evidence loop

    Complete the educational result kept separate from a qualified design and validation of the target safety function and repeat the affected regression cases.

    Evidence: A run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition.

    Avoid: Treating an acknowledged message or one successful rerun as handover.

Diagnostic matrix / 04

Symptoms, proving points and next actions

The table is a reasoning aid, not a parts-replacement chart. Preserve the initial symptom, inspect the named boundary and use the interpretation to choose the next controlled test. Site safety procedures and equipment manuals remain authoritative.

Diagnostic symptoms, inspection points, interpretations and next actions for Light-curtain muting sequence scenario: implementation, evidence and troubleshooting
Observed symptomInspectInterpretationNext proving action
The expected result is unclearRequirement, initial state, actor, stimulus, units and pass conditionThe operator, programmer and reviewer may be solving different versions of the task.Rewrite one observable acceptance case before continuing.
Internal state changes but the outcome does notRequest, final owner, output or service boundary and independent feedbackA software or interface indication proves intent at one layer, not the complete outcome.Trace the first boundary after the changing state.
Normal case passes but an edge case failsLimits, timing, simultaneous events, reset and restart assumptionsThe implementation contains a hidden assumption exposed by the changed condition.Add the failed boundary as a permanent regression case.
The failure disappears after resetOriginal symptom, histories, diagnostics, timestamps and active causeReset changed evidence or state without proving the initiating cause.Reproduce under a controlled condition and preserve pre/post-event data.
Simulator and target disagreeModel boundary, software version, task timing, I/O behavior, data types and configurationA learning model and the intended target do not share one of the recorded assumptions.Reduce the case and verify against current target documentation.
The result cannot be explainedPrediction, observation, proving action, alternative hypotheses and limitationsActivity occurred but the evidence is not yet transferable or reviewable.Have the learner defend the signal path and repeat a changed case.

Product evidence / 05

What the browser practice can actually demonstrate

The browser runtime joins editable control state to visible I/O and machine or process behavior, allowing the same initial conditions and stimuli to be replayed.

Where simulation stops

The ordinary PLC learning scenario does not implement certified safety logic or validate sensor layout, performance level, safety distance or production restart behavior.

Commissioning notebook / 06

Six cases that turn the concepts into evidence

Use these as written briefs rather than click-through instructions. For every case, state the expected condition before acting, retain the first useful observation and explain why the final result proves the requirement. A different program or component choice can still be correct when it produces the same bounded behavior and evidence.

Case 01

predict → observe → prove

Prove define the operating contract

Engineering context. simulated material path, protective field, mute sensors, expected direction, sequence states, transition timeouts, maximum mute, fault state, indication, reset eligibility and restart separation. For muting-state logic, sequence evidence and controlled recovery, record the initial condition, actor, requested change, observable result and stopping condition before selecting a tool or implementation. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Write the acceptance case” stage of the workflow: convert simulated material path, protective field, mute sensors, expected direction, sequence states, transition timeouts, maximum mute, fault state, indication, reset eligibility and restart separation into initial conditions, one stimulus and observable pass criteria. The acceptance record should show this result: another person can repeat the case without guessing the intended result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The expected result is unclear” as one bounded deviation. Inspect requirement, initial state, actor, stimulus, units and pass condition The working interpretation is that the operator, programmer and reviewer may be solving different versions of the task. The next proving action is to rewrite one observable acceptance case before continuing. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using page completion or an animation as the acceptance criterion. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why model light-curtain muting as states? A defensible short answer is: Explicit states make sensor order, timing, normal exit, fault paths and reset eligibility inspectable instead of hiding them in overlapping timer bits.

Case 02

predict → observe → prove

Prove map the evidence path

Engineering context. sensor pattern through explicit state and time guards to mute request, protective-field status, machine permission, fault latch, clearance and deliberate recovery. Separate request, internal state, output or service, physical or user-visible result and independent feedback so each boundary can be inspected. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Build the map” stage of the workflow: document sensor pattern through explicit state and time guards to mute request, protective-field status, machine permission, fault latch, clearance and deliberate recovery and name who owns each state or decision. The acceptance record should show this result: every request and result has a source, destination and useful inspection point. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Internal state changes but the outcome does not” as one bounded deviation. Inspect request, final owner, output or service boundary and independent feedback The working interpretation is that a software or interface indication proves intent at one layer, not the complete outcome. The next proving action is to trace the first boundary after the changing state. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is using the same value as command, status and independent feedback. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What is the difference between muting and bypass? A defensible short answer is: Muting is an automatic, monitored and bounded function for a defined condition; an uncontrolled bypass defeats protection and is not equivalent.

Case 03

predict → observe → prove

Prove prove normal operation

Engineering context. each valid pattern enters and exits the mute once while invalid patterns reach a defined faulted or protected state. Run more than one cycle from a known state and retain the values, timings or artifacts that demonstrate repeatability. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Run the baseline” stage of the workflow: apply each valid pattern enters and exits the mute once while invalid patterns reach a defined faulted or protected state from a clean start and record the expected evidence. The acceptance record should show this result: repeated runs produce the same bounded result. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Normal case passes but an edge case fails” as one bounded deviation. Inspect limits, timing, simultaneous events, reset and restart assumptions The working interpretation is that the implementation contains a hidden assumption exposed by the changed condition. The next proving action is to add the failed boundary as a permanent regression case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is changing several parameters before a baseline exists. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What should I learn first about muting-state logic, sequence evidence and controlled recovery? A defensible short answer is: Start with the operating contract and evidence path: simulated material path, protective field, mute sensors, expected direction, sequence states, transition timeouts, maximum mute, fault state, indication, reset eligibility and restart separation, followed by sensor pattern through explicit state and time guards to mute request, protective-field status, machine permission, fault latch, clearance and deliberate recovery. Add advanced features only after the baseline is predictable.

Case 04

predict → observe → prove

Prove exercise a boundary case

Engineering context. reverse order, overlap, missing sensor, blocked field, excessive duration, simultaneous change, device discrepancy, reset during demand and power return. Choose minimum, maximum, simultaneous, delayed or restart conditions that reveal assumptions hidden by the happy path. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Challenge assumptions” stage of the workflow: test reverse order, overlap, missing sensor, blocked field, excessive duration, simultaneous change, device discrepancy, reset during demand and power return without changing the acceptance contract. The acceptance record should show this result: limits, timing and restart behavior reach defined states. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The failure disappears after reset” as one bounded deviation. Inspect original symptom, histories, diagnostics, timestamps and active cause The working interpretation is that reset changed evidence or state without proving the initiating cause. The next proving action is to reproduce under a controlled condition and preserve pre/post-event data. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is testing only one ideal sequence. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: How do I practise muting-state logic, sequence evidence and controlled recovery effectively? A defensible short answer is: Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

Case 05

predict → observe → prove

Prove diagnose a controlled fault

Engineering context. a model, sensor, state, transition, timer, mute, protective-field, fault, reset or restart mismatch. Preserve the first symptom, divide the system at a measurable boundary and change one condition only after predicting the result. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Isolate one failure” stage of the workflow: introduce or analyse a model, sensor, state, transition, timer, mute, protective-field, fault, reset or restart mismatch and locate the first disagreement. The acceptance record should show this result: the proving action distinguishes the leading hypotheses. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “Simulator and target disagree” as one bounded deviation. Inspect model boundary, software version, task timing, I/O behavior, data types and configuration The working interpretation is that a learning model and the intended target do not share one of the recorded assumptions. The next proving action is to reduce the case and verify against current target documentation. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is resetting, forcing or replacing before evidence is retained. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: What counts as proof of competence? A defensible short answer is: A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Case 06

predict → observe → prove

Prove transfer and hand over

Engineering context. the educational result kept separate from a qualified design and validation of the target safety function. Restore normal state, remove temporary changes, repeat affected checks and document which claims remain limited to the learning environment. Begin with a written normal condition and identify which request, state, physical result or communication value will provide independent confirmation. Do not begin by changing the configuration; the initial state is part of the evidence and should remain reproducible.

Controlled setup. Use the “Close the evidence loop” stage of the workflow: complete the educational result kept separate from a qualified design and validation of the target safety function and repeat the affected regression cases. The acceptance record should show this result: a run is complete only when the requested behavior, stop behavior, fault response and recovery are observable from a fresh initial condition. Record initial conditions, the exact stimulus and the observation point so another learner can repeat the case without relying on your memory.

Fault challenge. Introduce or analyse “The result cannot be explained” as one bounded deviation. Inspect prediction, observation, proving action, alternative hypotheses and limitations The working interpretation is that activity occurred but the evidence is not yet transferable or reviewable. The next proving action is to have the learner defend the signal path and repeat a changed case. Change only one condition before observing the result, and preserve timestamps or measurements where timing matters.

Review and recovery. The most common trap here is treating an acknowledged message or one successful rerun as handover. After restoring the cause, repeat the normal case and at least one stop, timeout, disconnect or restart boundary relevant to this topic. Remove temporary forces and bypasses, return the model to a known state and retain the evidence that both operation and recovery are deliberate.

Explain it aloud: Why test faults and restart behavior? A defensible short answer is: Because a model, sensor, state, transition, timer, mute, protective-field, fault, reset or restart mismatch or reverse order, overlap, missing sensor, blocked field, excessive duration, simultaneous change, device discrepancy, reset during demand and power return can expose assumptions that never appear during ideal startup and steady operation.

Answer surface / 07

Questions people ask about Light-curtain muting sequence scenario

These concise answers define the operating, training and product boundaries most often missed in broad summaries. The full workflow and diagnostic table above provide the evidence behind them.

Why model light-curtain muting as states?

Explicit states make sensor order, timing, normal exit, fault paths and reset eligibility inspectable instead of hiding them in overlapping timer bits.

What is the difference between muting and bypass?

Muting is an automatic, monitored and bounded function for a defined condition; an uncontrolled bypass defeats protection and is not equivalent.

What should I learn first about muting-state logic, sequence evidence and controlled recovery?

Start with the operating contract and evidence path: simulated material path, protective field, mute sensors, expected direction, sequence states, transition timeouts, maximum mute, fault state, indication, reset eligibility and restart separation, followed by sensor pattern through explicit state and time guards to mute request, protective-field status, machine permission, fault latch, clearance and deliberate recovery. Add advanced features only after the baseline is predictable.

How do I practise muting-state logic, sequence evidence and controlled recovery effectively?

Use short cases with known initial conditions, a written prediction, one action and an observable result. Then alter a boundary or fault and explain why the evidence changed.

What counts as proof of competence?

A repeatable artifact or system result plus an explanation of the signal path is stronger than time spent, screenshots or a copied answer. Physical competence requires separate supervised evidence.

Why test faults and restart behavior?

Because a model, sensor, state, transition, timer, mute, protective-field, fault, reset or restart mismatch or reverse order, overlap, missing sensor, blocked field, excessive duration, simultaneous change, device discrepancy, reset during demand and power return can expose assumptions that never appear during ideal startup and steady operation.

Can browser practice replace official software or hardware?

No. It can build concepts and diagnostic reasoning. Exact firmware, I/O electrical behavior, networking, safety and commissioning require current official tools, documentation and target equipment.

How should progress be documented?

Keep the requirement, initial state, program or configuration, observed values, fault hypothesis, proving action, recovery result and a concise limitations statement.

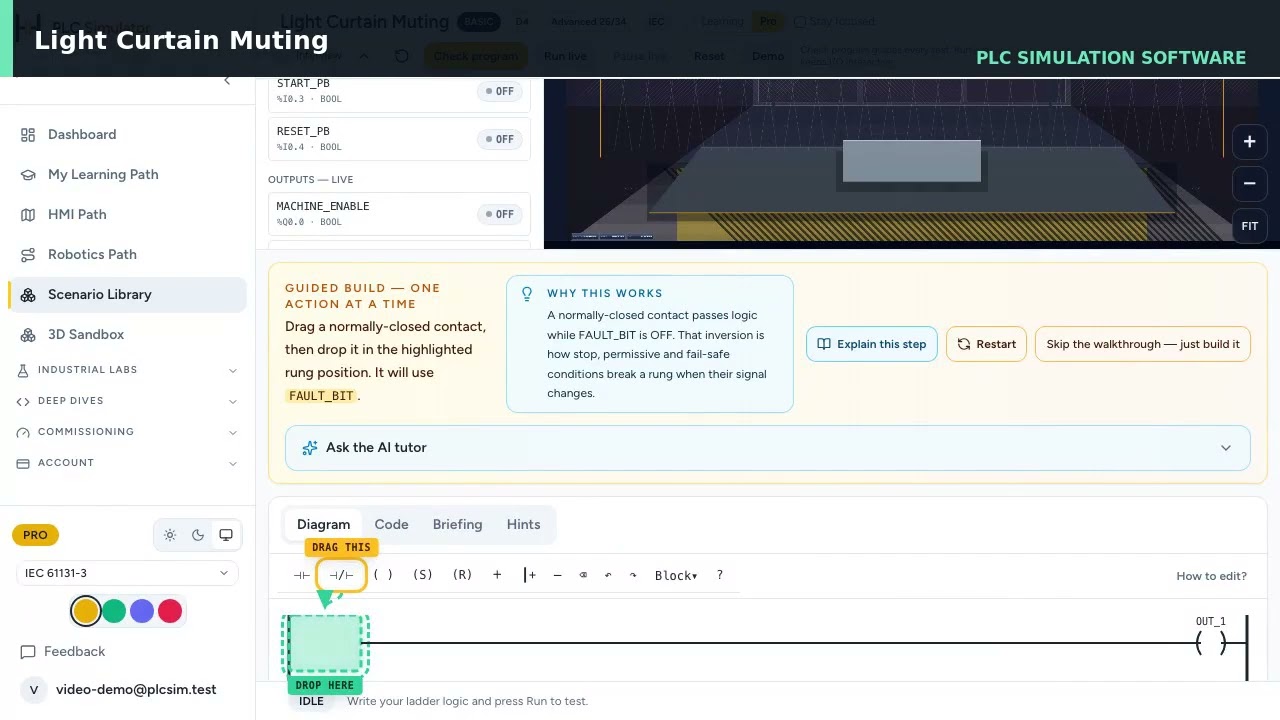

Real light curtain muting plc footage
